Toyota Celica
1981-08 → 1985-12 · chassis RA6#,MA61 · catalogue 252430 · United States
Discontinued model
Data version 1985-12

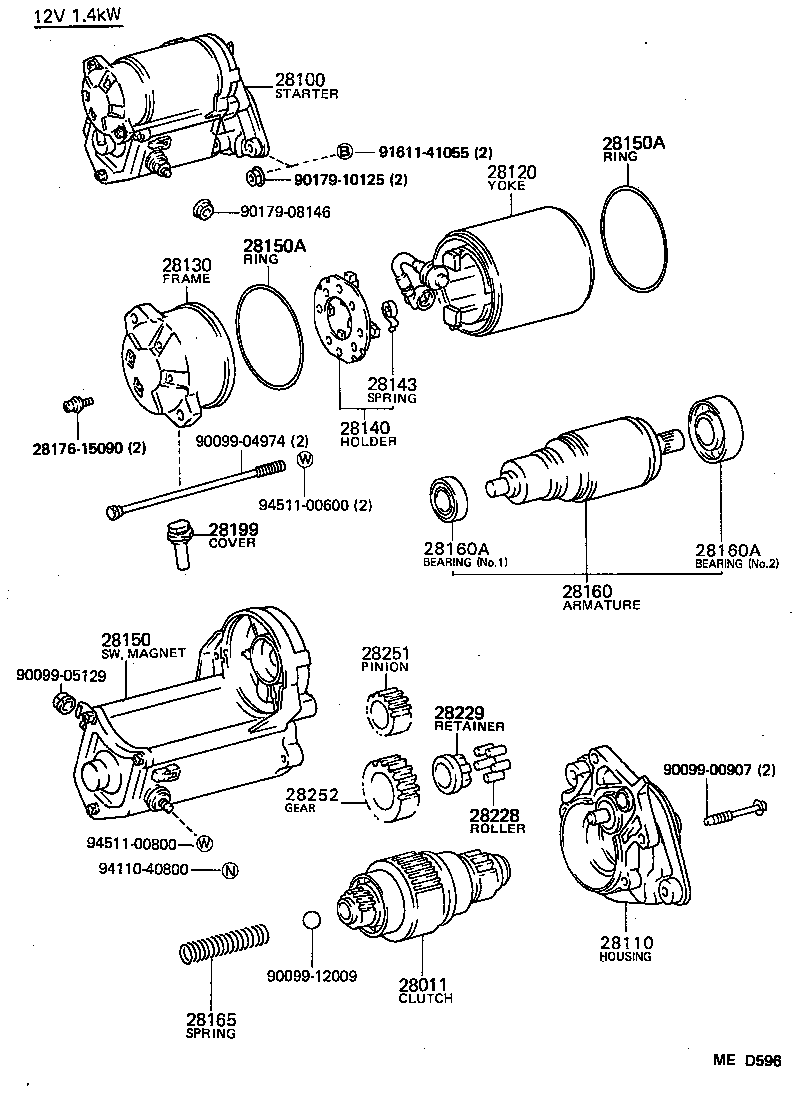

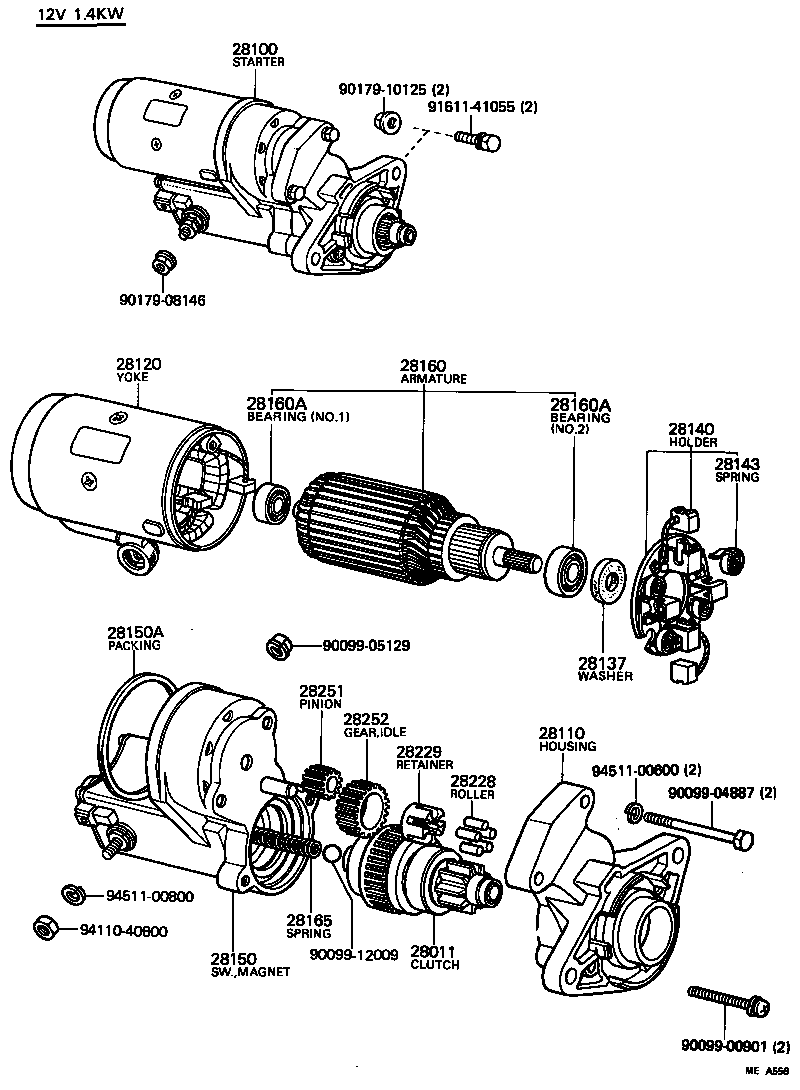

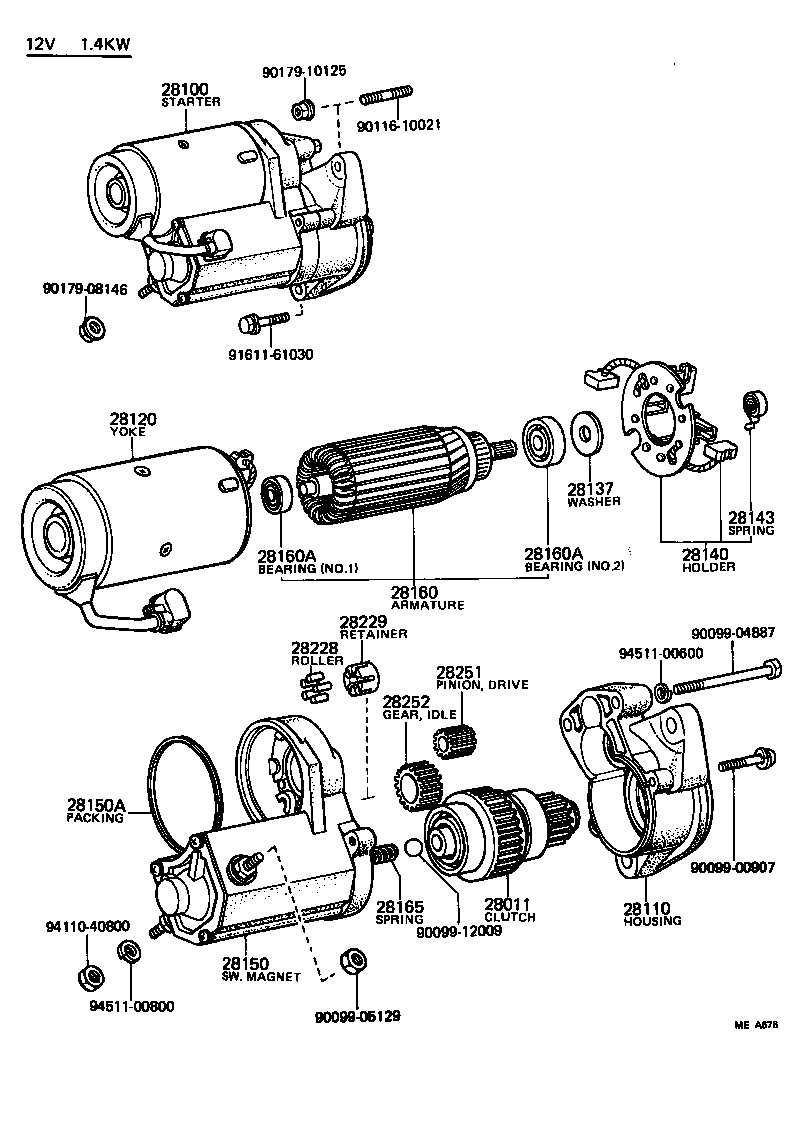

Starter
18 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 28011 | Clutch Sub-assy, Starter |
| 28100 | Starter Assy |
| 28110 | Housing Assy, Starter Drive |
| 28120 | Yoke Assy, Starter |
| 28130 | Frame Assy, Starter Commutator End |
| 28137 | Washer, Felt, Starter |
| 28140 | Holder Assy, Starter Brush |
| 28143 | Spring, Starter Brush |
| 28150 | Switch Assy, Magnet Starter |
| 28150A | Packing(FOR STARTER MAGNET SWITCH) |
| 28160 | Armature Assy, Starter |
| 28160A | Bearing, Starter Armature |
| 28165 | Spring, Starter Magnet Switch Return |
| 28199 | Cover, Starter |
| 28228 | Roller, Starter Idle Gear Clutch |
| 28229 | Retainer, Starter Idle Gear |
| 28251 | Pinion, Starter Drive |
| 28252 | Gear, Starter Idle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
