Toyota Celica
1981-08 → 1985-12 · chassis RA6#,MA61 · catalogue 252430 · United States
Discontinued model
Data version 1985-12

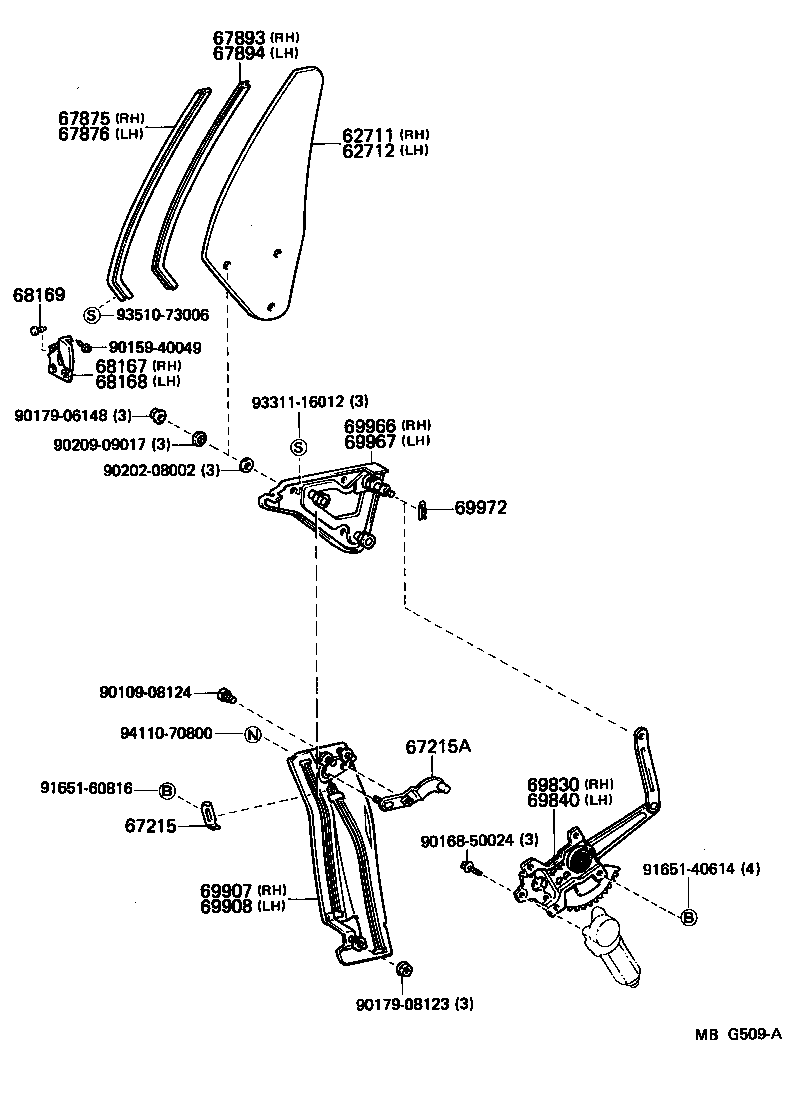

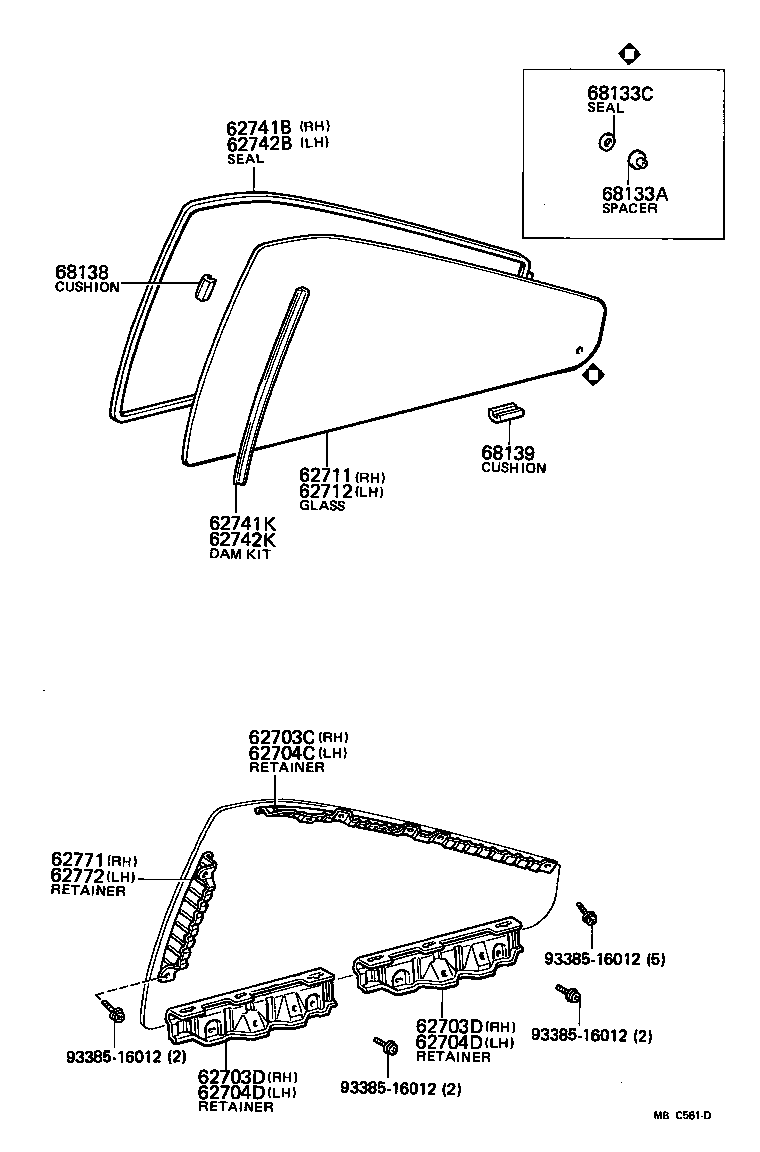

Quarter Window
34 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 62703C | Retainer, Quarter Window Glass, Upper, RH |
| 62703D | Retainer, Quarter Window Glass, Lower, RH |
| 62704C | Retainer, Quarter Window Glass, Upper, LH |
| 62704D | Retainer, Quarter Window Glass, Lower, LH |
| 62711 | Glass, Quarter Window, RH |
| 62712 | Glass, Quarter Window, LH |
| 62741B | Seal, Quarter Window Glass, RH |
| 62741K | Dam Kit, Quarter Window, RH |
| 62742B | Seal, Quarter Window Glass, LH |
| 62742K | Dam Kit, Quarter Window, LH |
| 62771 | Retainer, Quarter Window Glass, Front Inner RH |
| 62771A | Retainer, Quarter Window Glass, Rear RH |
| 62772 | Retainer, Quarter Window Glass, Front Inner LH |
| 62772A | Retainer, Quarter Window Glass, Rear LH |
| 67215 | Stopper, Quarter Window, Upper Front |
| 67215A | Stopper, Quarter Window, Upper |
| 67875 | Weatherstrip, Rear Quarter Window Glass, RH |
| 67876 | Weatherstrip, Rear Quarter Window Glass, LH |
| 67893 | Retainer, Rear Quarter Window, RH |
| 67894 | Retainer, Rear Quarter Window, LH |
| 68133A | Spacer, Quarter Window NO.2 Glass |
| 68133C | Seal, Quarter Window Rear Shield |
| 68138 | Cushion, Quarter Window, NO.2 Upper |
| 68139 | Cushion, Quarter Window, NO.2 Lower |
| 68167 | Weatherstrip, Rear Quarter Front Corner, RH |
| 68168 | Weatherstrip, Rear Quarter Front Corner, LH |
| 68169 | Clip, Corner Weatherstrip |
| 69830 | Regulator Assy, Rear Quarter Window, RH |
| 69840 | Regulator Assy, Rear Quarter Window, LH |
| 69907 | Guide Sub-assy, Quarter Regulator Roller, RH |
| 69908 | Guide Sub-assy, Quarter Regulator Roller, LH |
| 69966 | Bracket, Rear Quarter Window Glass, RH |
| 69967 | Bracket, Rear Quarter Window Glass, LH |
| 69972 | Pin, Quarter Glass Channel Setting |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
