Toyota Celica

1981-08 → 1985-12 · chassis RA6#,MA61 · catalogue 252430 · United States

Discontinued model Data version 1985-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

13 part groups · 2 illustrations

Illustrations

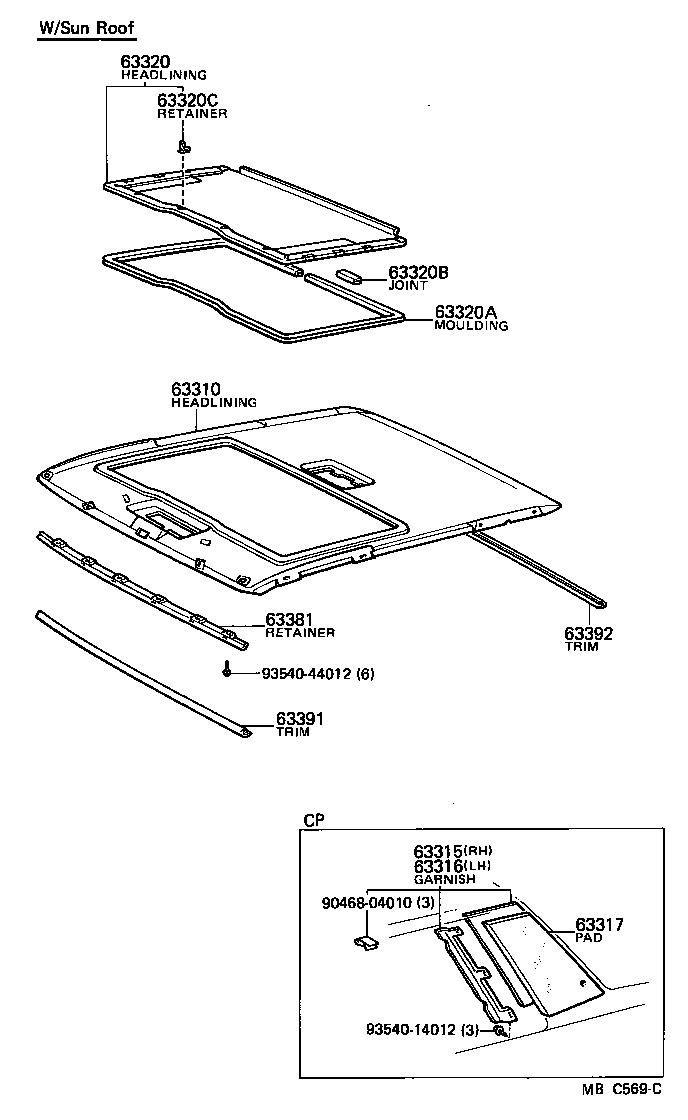

Figure MBC568B MBC568B 1981-08 → — Figure MBC569C MBC569C 1981-08 → —

Part groups

PNCDescription
63310 Headlining Assy, Roof
63315 Garnish, Roof Headlining, Rear RH
63316 Garnish, Roof Headlining, Rear LH
63317 Pad, Roof Headlining Rear Garnish
63320 Headlining Assy, Sun Roof OR Removable Roof
63320A Moulding, Sun Roof OR Removable Roof Opening Trim
63320B Joint, Sun Roof Opening Trim
63320C Retainer, Trim Board(FOR SUN ROOF)
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63381 Retainer, Headlining, Front
63391 Trim, Roof Headlining, Front
63392 Trim, Roof Headlining, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
