Toyota Celica
1981-08 → 1985-12 · chassis RA6#,MA61 · catalogue 252430 · United States
Discontinued model
Data version 1985-12

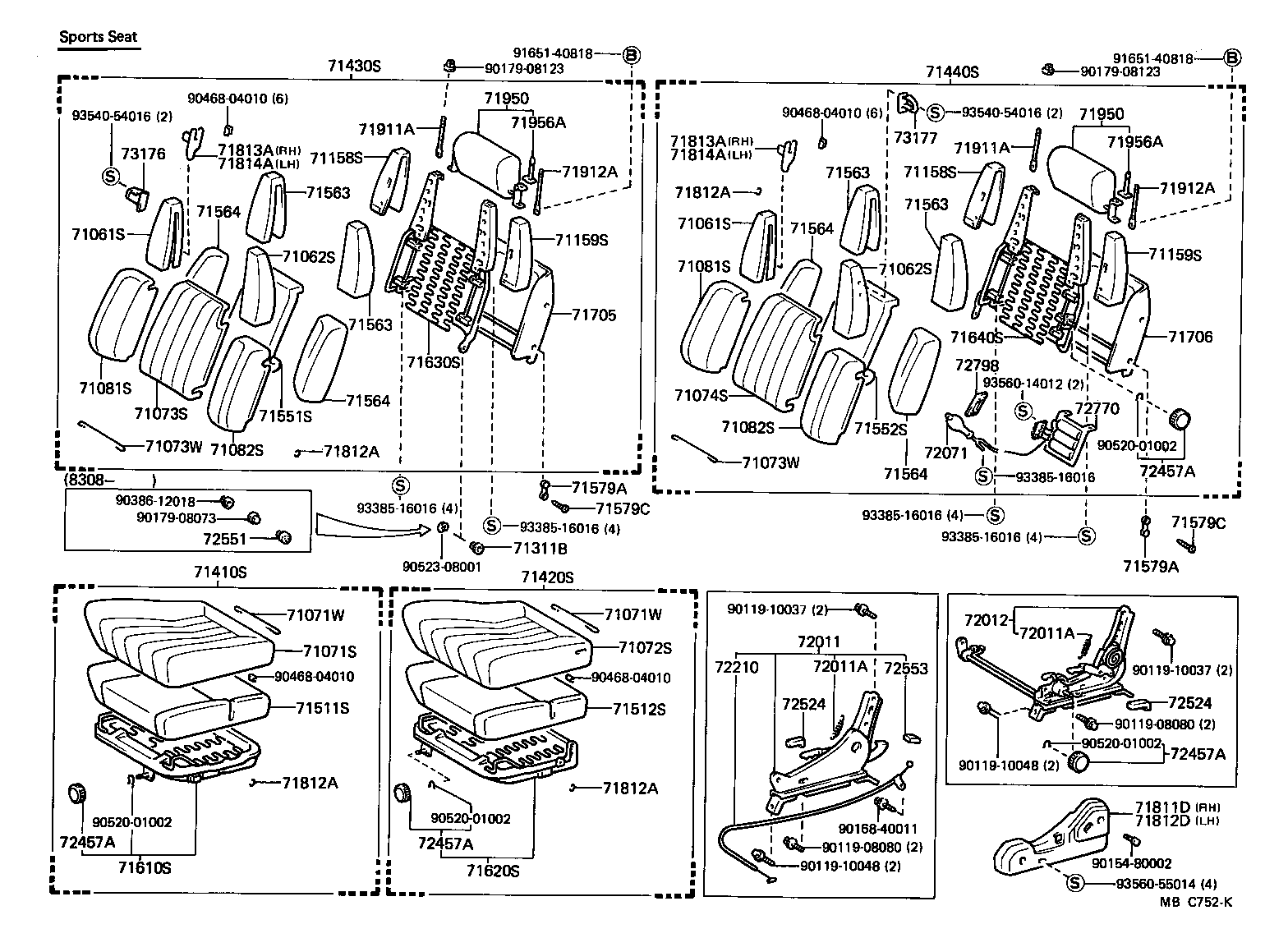

Front Seat & Seat Track
59 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 71061S | Cover Sub-assy, Front Seatback, Upper RH |
| 71062S | Cover Sub-assy, Front Seatback, Upper LH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71071W | Wire, Front Seat Cushion Cover |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71073W | Wire, Front Seatback Cover |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71081S | Cover Sub-assy, Front Seatback Side, RH |
| 71082S | Cover Sub-assy, Front Seatback Side, LH |
| 71158S | Frame, Front Seatback, Upper RH |
| 71159S | Frame, Front Seatback, Upper LH |
| 71311B | Bush (FOR FRONT SEAT HINGE PIN) |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71553B | Pad, Front Seatback, B |
| 71563 | Pad, Front Seatback, Upper |
| 71564 | Pad, Front Seatback, Side |
| 71579A | Washer, Front Seatback Board Setting |
| 71579C | Screw, Front Seatback Board Setting |
| 71581 | Pad, Front Seatback Silencer |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71705 | Board Sub-assy, Front Seatback, RH |
| 71706 | Board Sub-assy, Front Seatback, LH |
| 71732 | Fastener, Seat Cover, B (FOR FRONT SEAT) |
| 71734 | Retainer, Seat Cover Fastener, B (FOR FRONT SEAT) |
| 71735 | Fastener, Seat Cover, C (FOR FRONT SEAT) |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812A | Ring, Hog, Small (FOR FRONT SEAT) |
| 71812D | Shield, Front Seat Cushion, LH |
| 71813A | Shield, Front Seatback, RH |
| 71814A | Shield, Front Seatback, LH |
| 71911A | Stay, Front Seat Headrest, RH |
| 71912A | Stay, Front Seat Headrest, LH |
| 71950 | Headrest Assy, Front Seat |
| 71956A | Support, Front Seat Headrest |
| 72011 | Adjuster Sub-assy, Front Seat, Outer RH |
| 72011A | Spring, Tension (FOR FRONT SEAT ADJUSTER OUTER) |
| 72012 | Adjuster Sub-assy, Front Seat, Outer LH |
| 72071 | Pump Sub-assy, Lumber Support |
| 72210 | Cable Assy, Seat Track Control |
| 72457A | Knob, Seat Adjuster |
| 72524 | Handle, Reclining Adjuster Release |
| 72551 | Cover, Reclining Hinge, NO.1 |
| 72553 | Cover, Reclining Pedal |
| 72770 | Adjuster Assy, Lumbar Support, LH |
| 72791 | Lever, Lumbar Support |
| 72798 | Cover, Lumbar Support Switch |
| 73176 | Hanger, Front Shoulder Belt, RH (FOR FRONT SEAT) |
| 73177 | Hanger, Front Shoulder Belt, LH (FOR FRONT SEAT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
