Toyota Celica
1981-08 → 1985-12 · chassis RA6#,MA61 · catalogue 252430 · United States
Discontinued model
Data version 1985-12

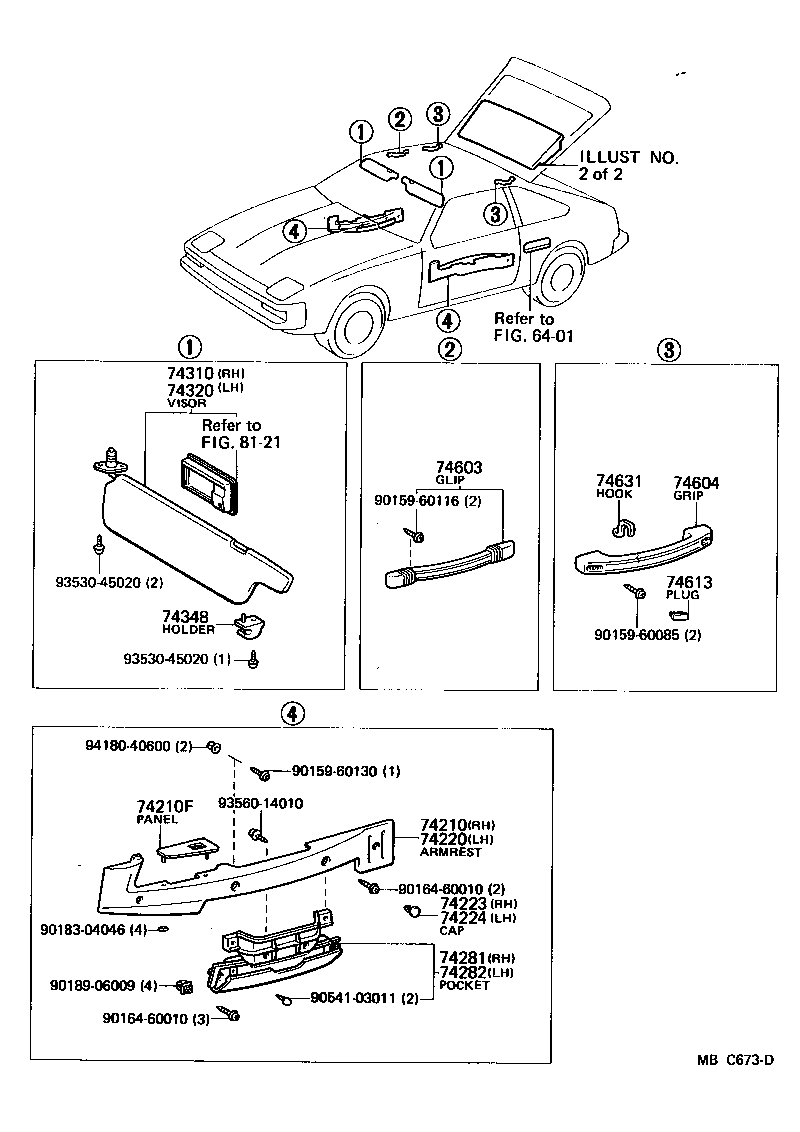

Armrest & Visor
24 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 74210 | Armrest Assy, Front, RH |
| 74210F | Panel Sub-assy, Door Armrest Upper |
| 74220 | Armrest Assy, Front, LH |
| 74223 | Cap, Door Armrest, RH |
| 74224 | Cap, Door Armrest, LH |
| 74257 | Spring, Armrest, NO.1 |
| 74281 | Pocket, Door Armrest, RH |
| 74282 | Pocket, Door Armrest, LH |
| 74285 | Clip, Door Armrest Pocket |
| 74286 | Clip, Door Armrest Pocket, NO.2 |
| 74308 | Support Assy, Rear Visor Center |
| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74348 | Holder, Visor |
| 74383 | Sheet, Rear Visor |
| 74387 | Bracket, Rear Visor, NO.1 |
| 74390A | Visor Assy, Rear, Outer |
| 74395 | Support, Rear Visor, Center |
| 74398 | Sheet, Rear Visor Center Support |
| 74399 | Cover, Rear Visor Center Support |
| 74603 | Grip Sub-assy, Assist, Front |
| 74604 | Grip Sub-assy, Assist, Rear |
| 74613 | Plug, Assist Grip |
| 74631 | Hook, Coat, A |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
