Toyota Celica

1981-08 → 1985-12 · chassis RA6#,MA61 · catalogue 252430 · United States

Discontinued model Data version 1985-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

8 part groups · 2 illustrations

Illustrations

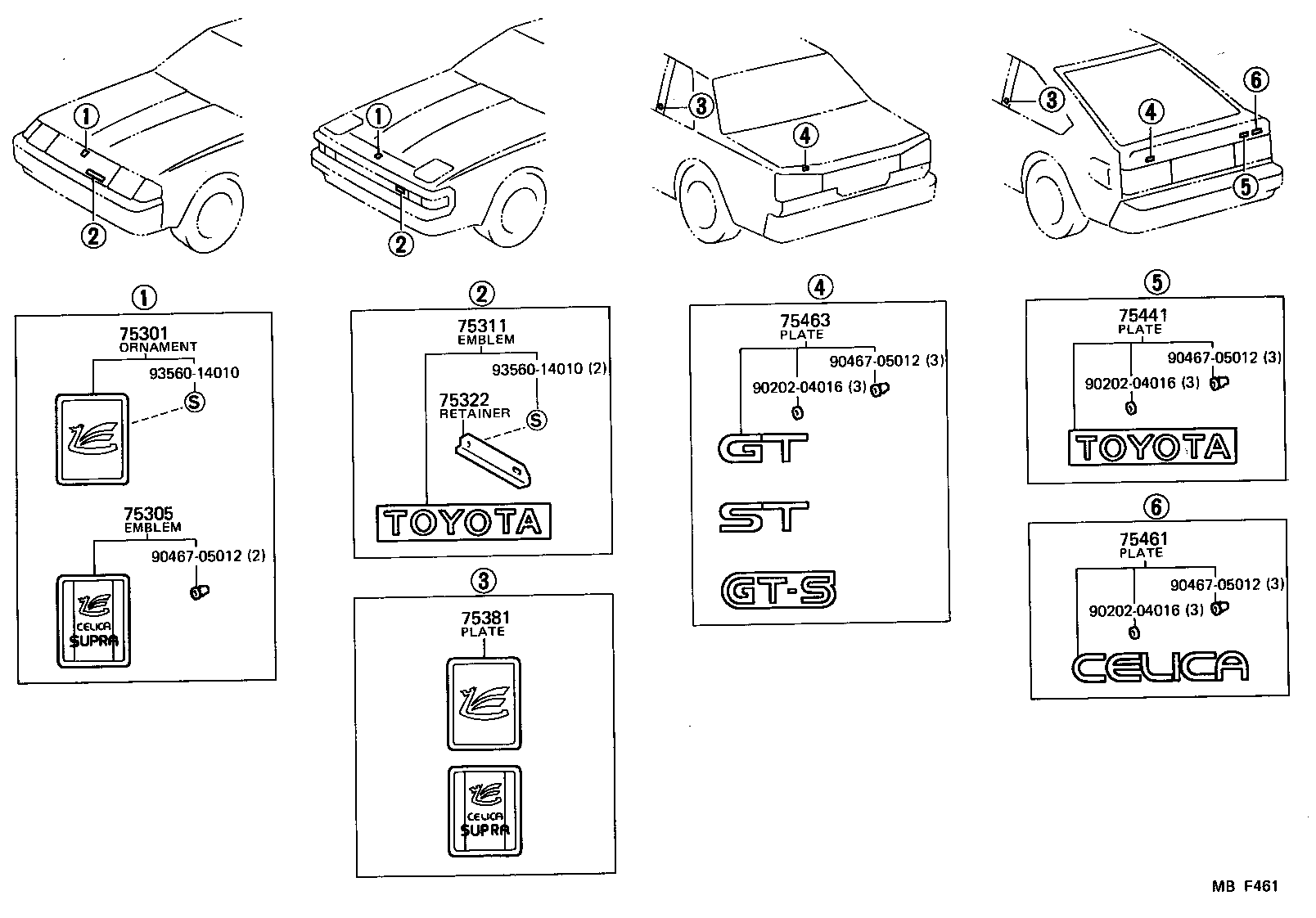

Figure MBC675D MBC675D 1981-08 → 1983-08 Figure MBF461 MBF461 1983-08 → —

Part groups

PNCDescription
75301 Ornament, Radiator Grille (OR FRONT PANEL)
75305 Emblem, Hood
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75322 Retainer, Radiator Grille Name Plate
75381 Plate, Quarter Panel OR Side Panel Name (MODEL MARK)
75441 Plate, Rear Name, NO.1
75461 Plate, Rear Name, NO.2 (MODEL MARK)
75463 Plate, Rear Name, NO.4 (GRADE MARK)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
