Toyota Celica

1981-08 → 1985-12 · chassis RA6#,MA61 · catalogue 252430 · United States

Discontinued model Data version 1985-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

15 part groups · 3 illustrations

Illustrations

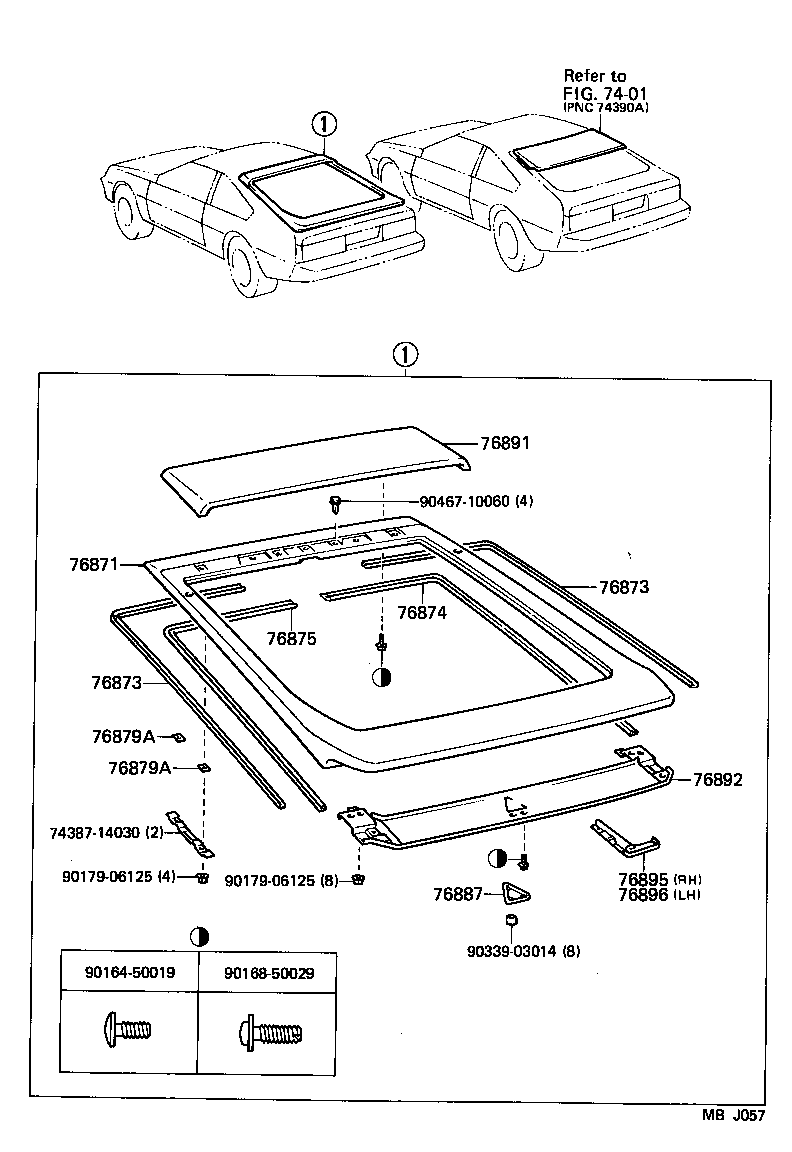

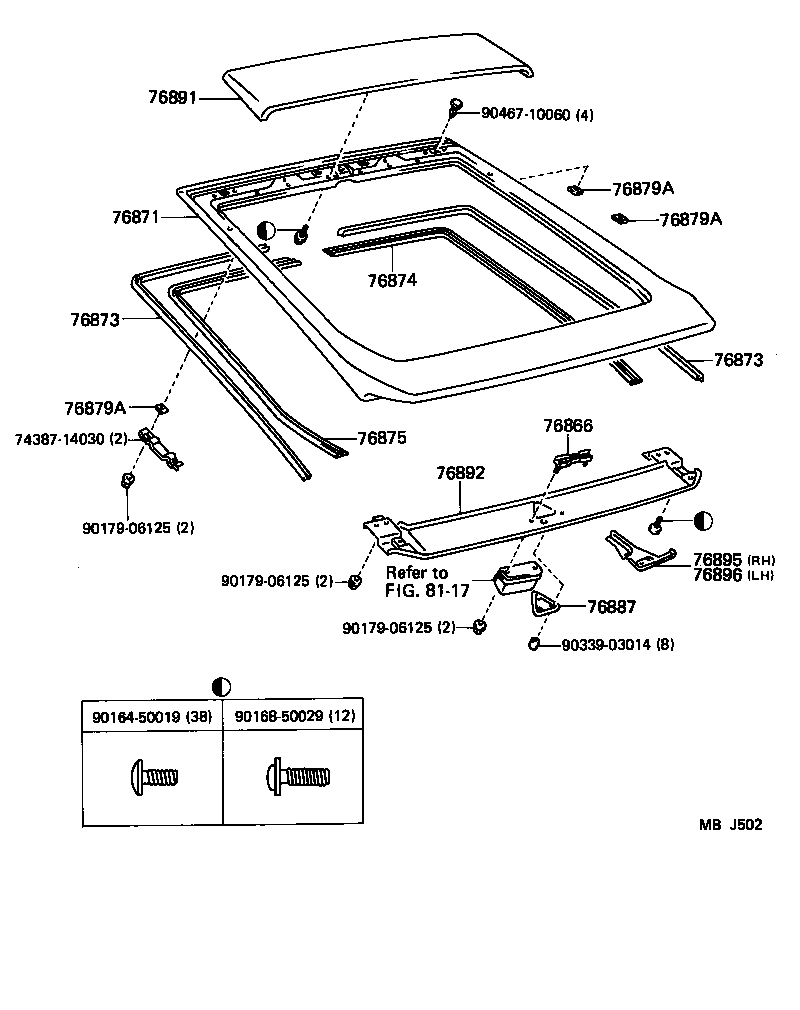

Figure MBJ056 MBJ056 1981-08 → — Figure MBJ057 MBJ057 1981-08 → 1985-08 Figure MBJ502 MBJ502 1985-08 → —

Part groups

PNCDescription
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76866 Retainer, Rear Spoiler, NO.2
76871 Spoiler, Rear
76873 Protector, Rear Spoiler, NO.2
76874 Protector, Rear Spoiler, NO.3
76875 Protector, Rear Spoiler, NO.4
76879A Spacer, Rear Spoiler
76887 Seal, Rear Spoiler
76891 Spoiler, Rear NO.1
76892 Spoiler, Rear NO.2
76895 Protector, Rear Spoiler, NO.5
76896 Protector, Rear Spoiler, NO.6
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
