Toyota Celica
1981-08 → 1985-12 · chassis RA6#,MA61 · catalogue 252430 · United States
Discontinued model
Data version 1985-12

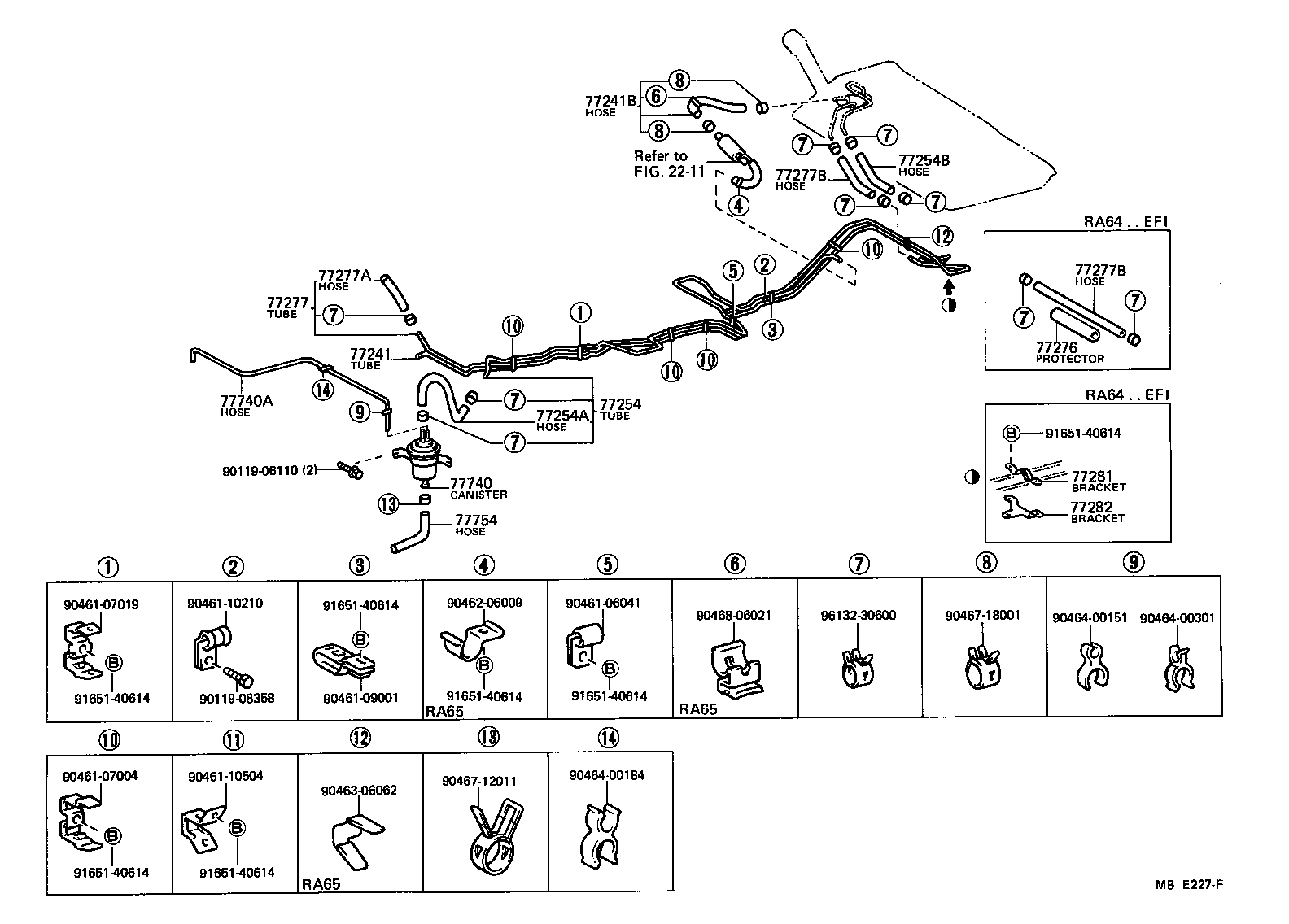

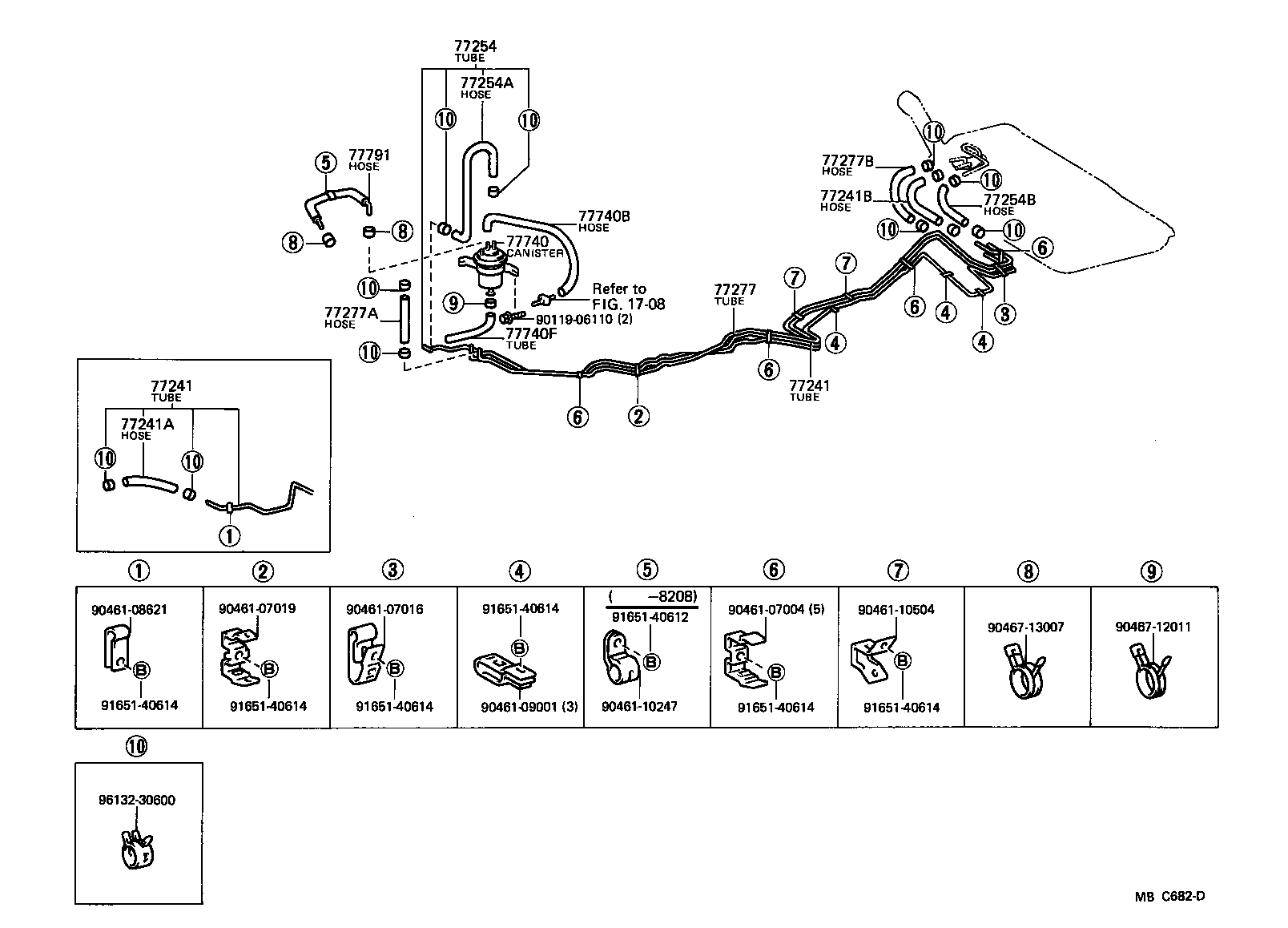

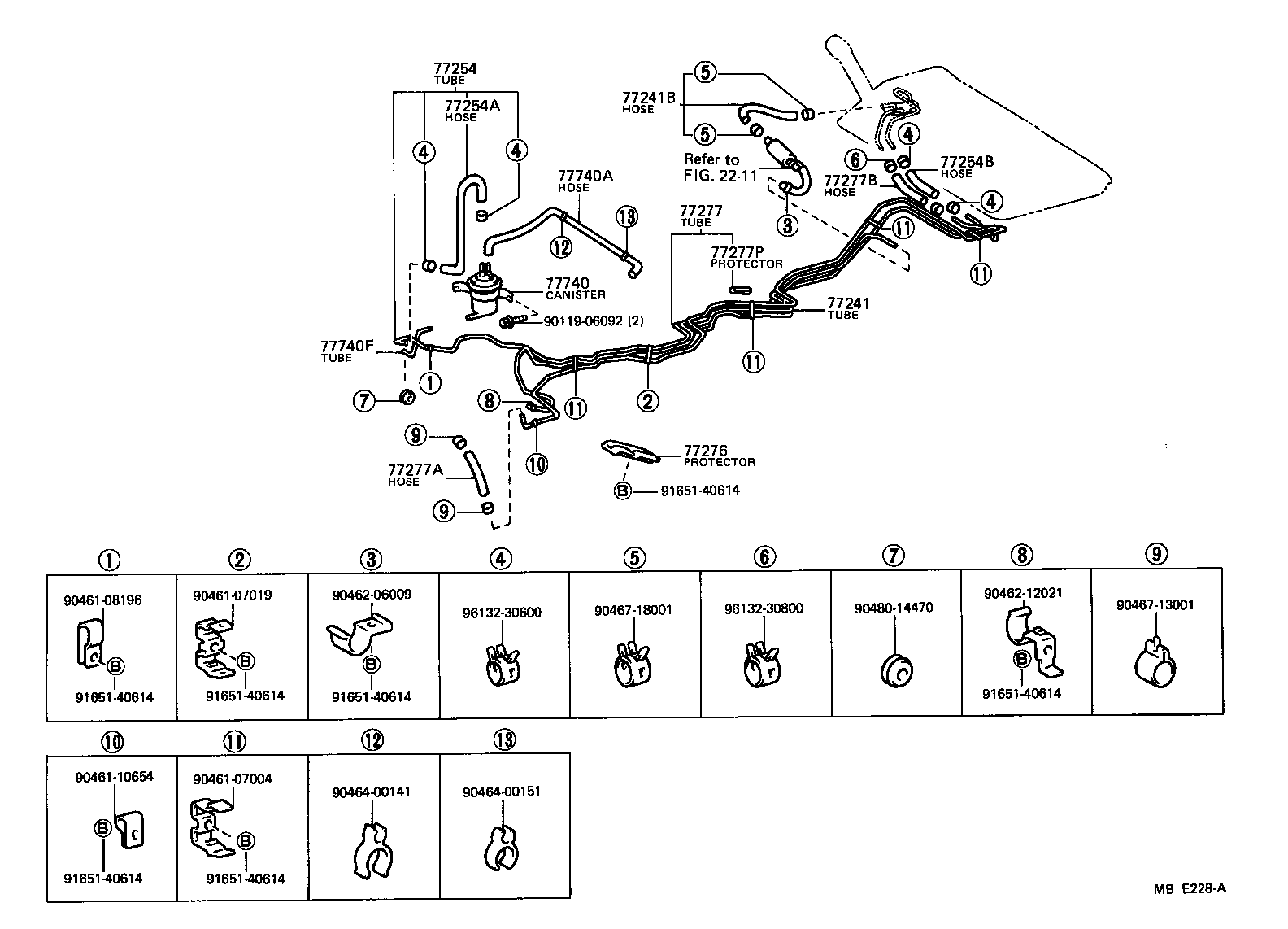

Fuel Tank & Tube
50 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77031 | Cap Assy, Fuel Tank |
| 77031B | Gasket (FOR FUEL TANK CAP) |
| 77033 | Lock Sub-assy, Fuel Tank Cap |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77201A | Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE) |
| 77202 | Tube Sub-assy, Breather |
| 77202J | Gasket (FOR BREATHER TUBE) |
| 77206 | Tube Sub-assy, Fuel Tank Suction |
| 77206A | Gasket (FOR FUEL TANK SUCTION TUBE) |
| 77241 | Tube, Fuel Main, NO.1 |
| 77241A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1) |
| 77241B | Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1) |
| 77254 | Tube, Fuel Emission, NO.1 |
| 77254A | Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1) |
| 77254B | Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1) |
| 77276 | Protector, Fuel Hose |
| 77277 | Tube, Fuel Return, NO.1 |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77277B | Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1) |
| 77277P | Protector(FOR FUEL RETURN HOSE) |
| 77281 | Bracket, Fuel Main Tube, NO.1 |
| 77282 | Bracket, Fuel Main Tube, NO.2 |
| 77286 | Protector, Fuel Tank Inlet Pipe |
| 77286A | Retainer, Fuel Filler Pipe Protector |
| 77295 | Shield, Fuel Filler Pipe |
| 77308 | Cover Sub-assy, Fuel Inlet Box |
| 77308A | Cushion(FOR FUEL INLET BOX COVER) |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77387 | Ring, Fuel Inlet Box |
| 77606C | Protector, Fuel Tank, NO.2 |
| 77606D | Protector, Fuel Tank, NO.3 |
| 77606E | Protector, Fuel Tank, NO.4 |
| 77611 | Band, Fuel Tank |
| 77611A | Pin (FOR FUEL TANK BAND) |
| 77631 | Bracket, Fuel Tank, NO.1 |
| 77632 | Bracket, Fuel Tank, NO.2 |
| 77654 | Cushion, Fuel Tank, NO.2 |
| 77655 | Cushion, Fuel Tank, NO.3 |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77740B | Hose, Fuel, NO.2(FOR CHARCOAL CANISTER) |
| 77740F | Tube, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77754 | Hose, Charcoal Canister Outlet, NO.1 |
| 77791 | Hose, Outer Vent Valve TO Carburetor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
