Toyota Celica

1981-08 → 1985-12 · chassis RA6#,MA61 · catalogue 252430 · United States

Discontinued model Data version 1985-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

7 part groups · 2 illustrations

Illustrations

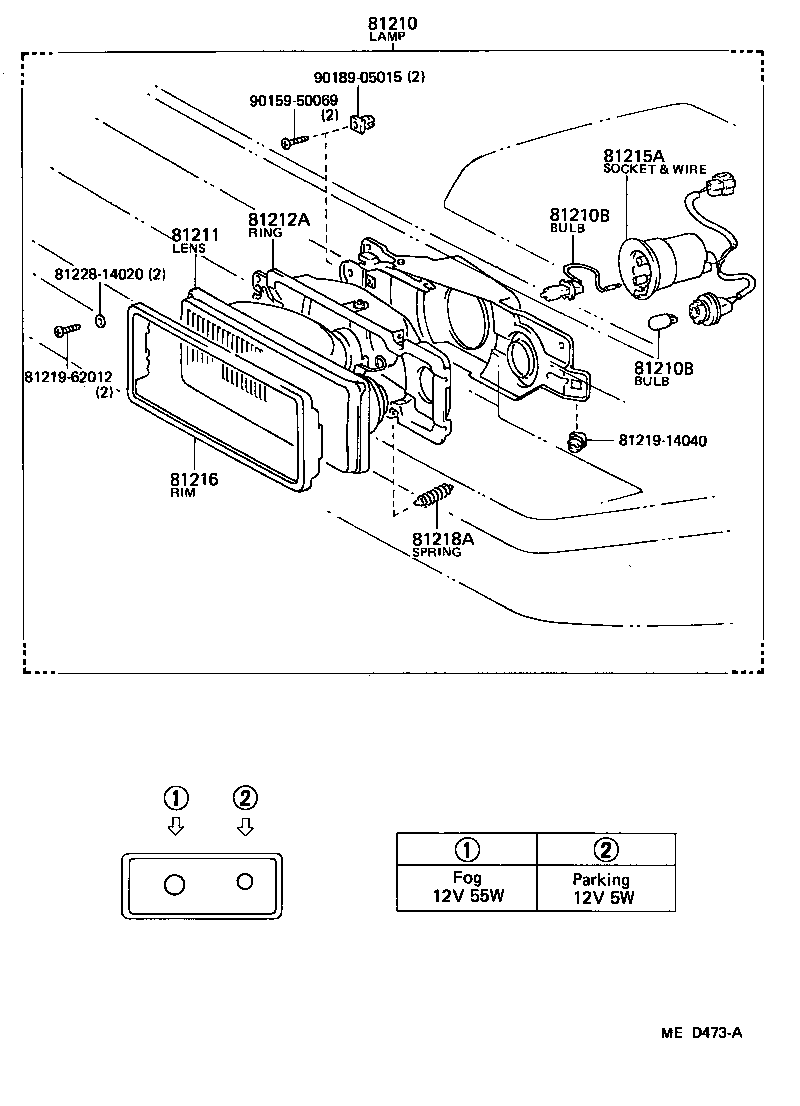

Figure MEA678B MEA678B 1981-08 → 1983-08 Figure MED473A MED473A 1983-08 → —

Part groups

PNCDescription
81210 Lamp Assy, Fog
81210B Bulb, Fog Lamp
81211 Lens, Fog Lamp
81212A Ring, Fog Lamp Mounting
81215A Socket & Wire, Fog Lamp
81216 Rim, Fog Lamp, NO.1
81218A Spring, Tension(FOR FOG LAMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
