Toyota Celica

1981-08 → 1985-12 · chassis RA6#,MA61 · catalogue 252430 · United States

Discontinued model Data version 1985-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

32 part groups · 11 illustrations

Illustrations

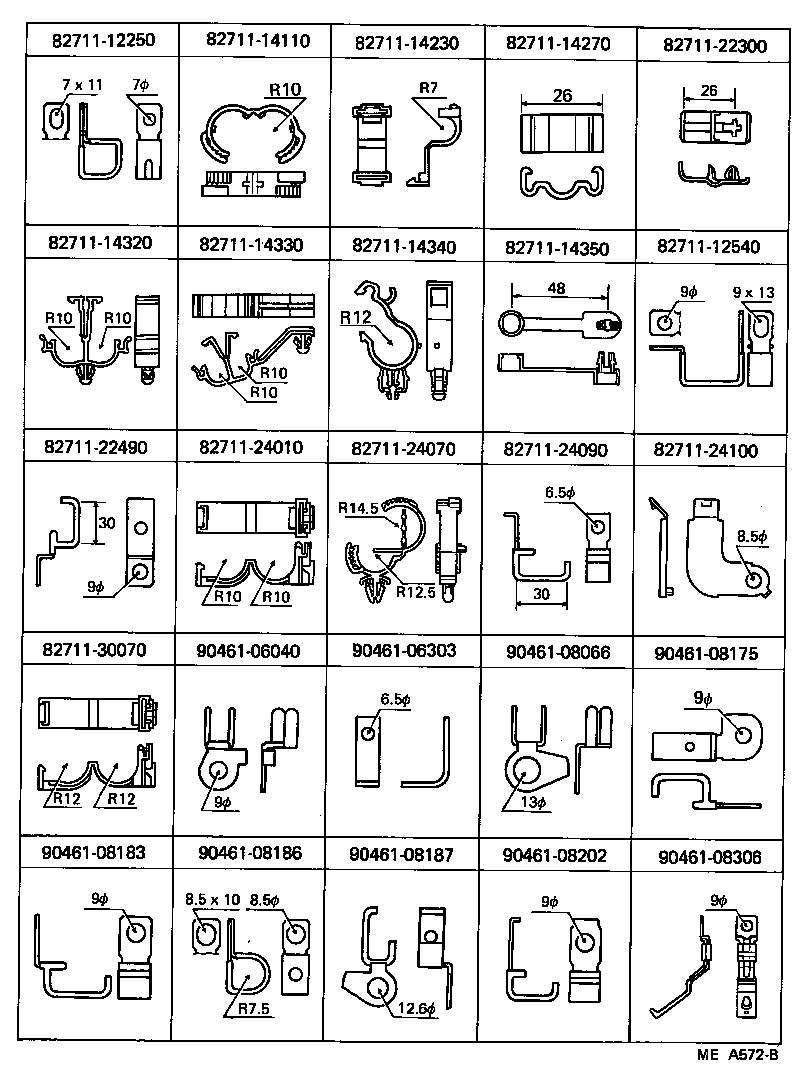

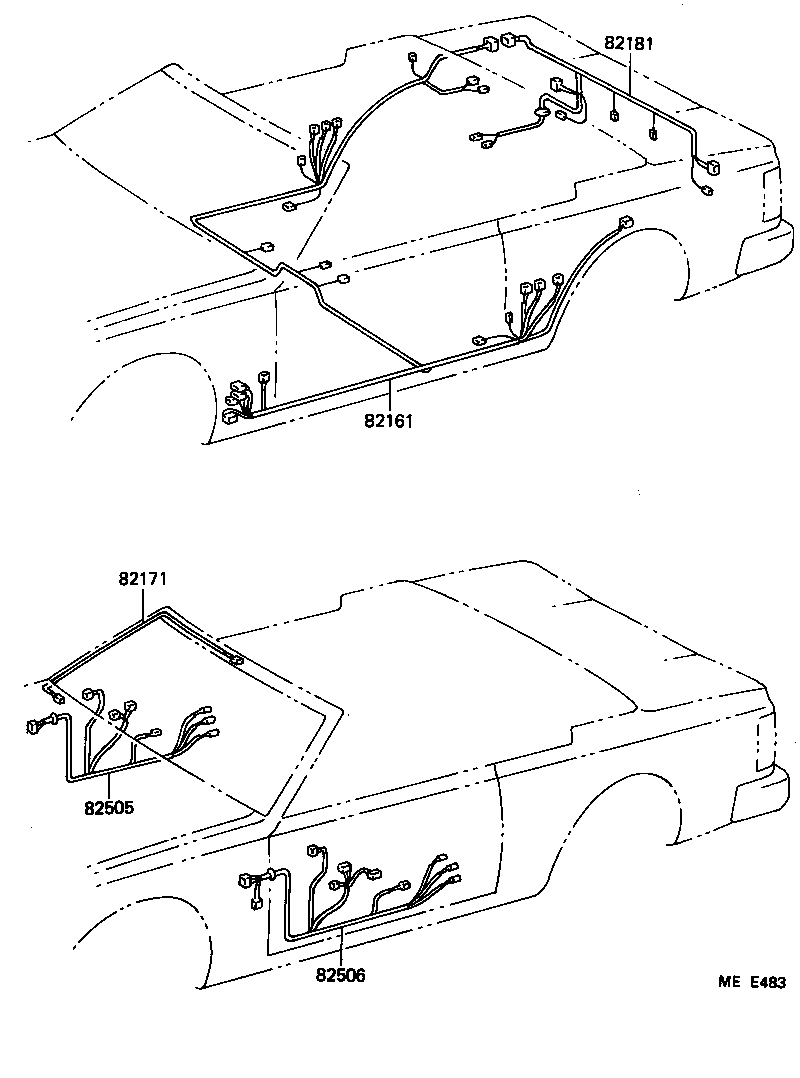

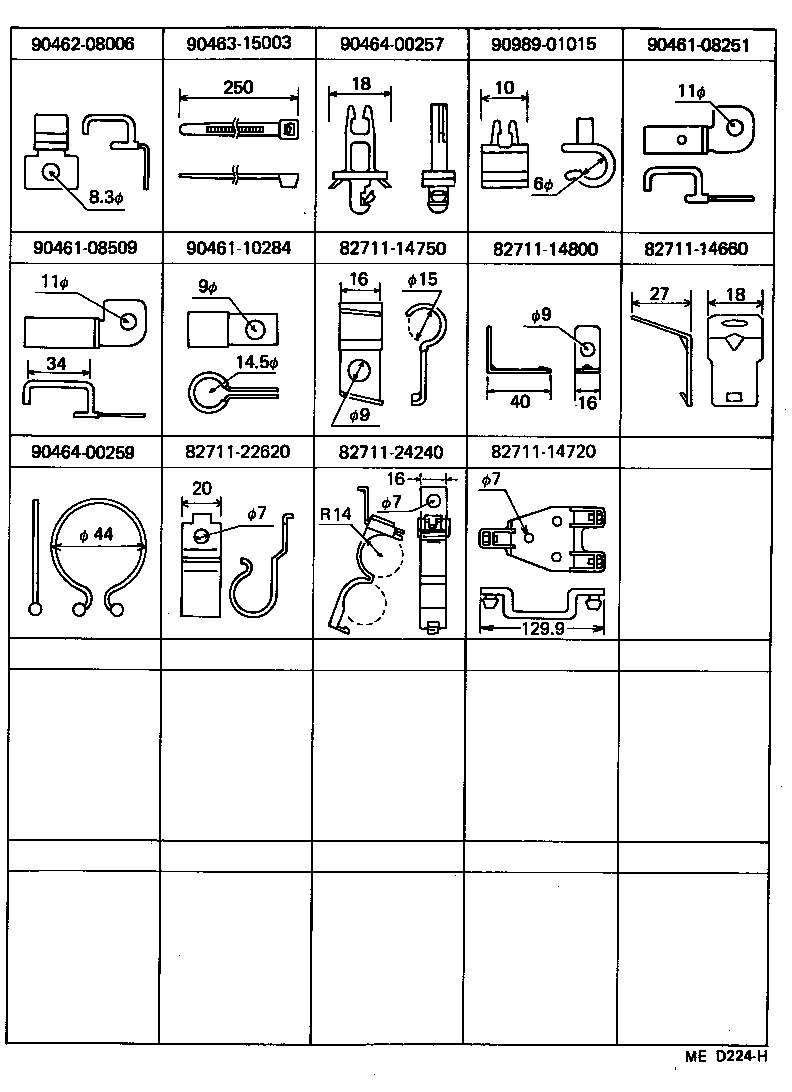

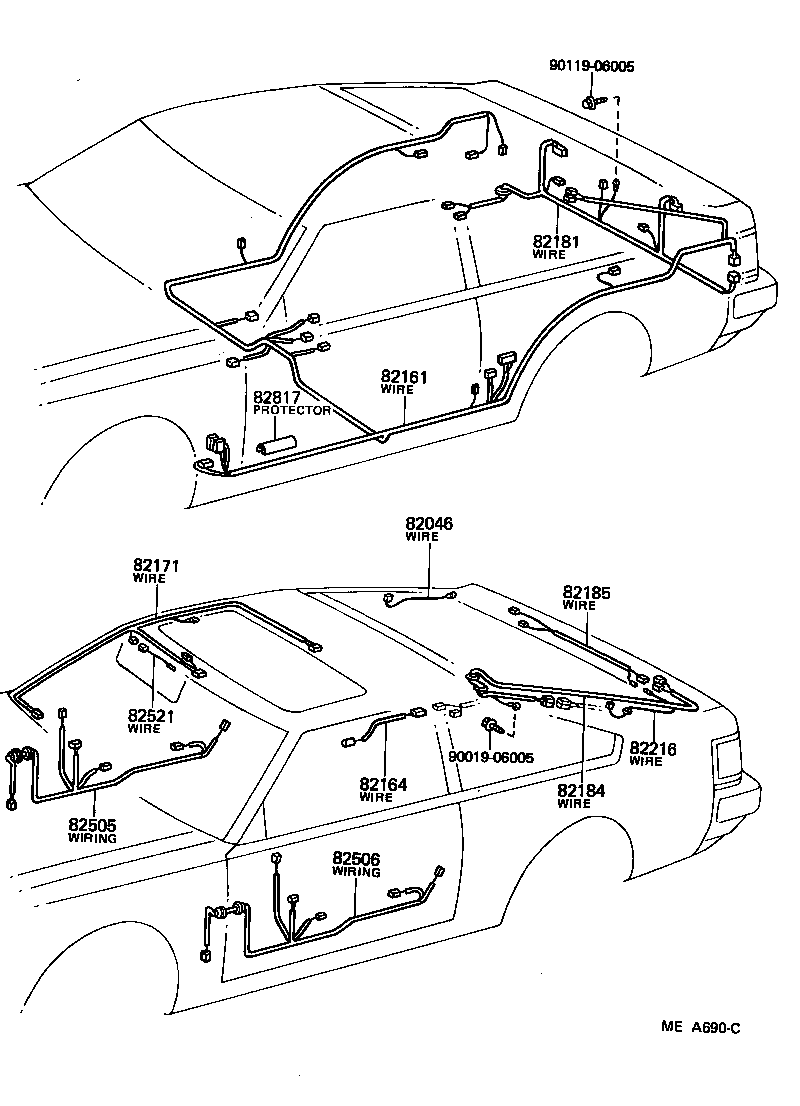

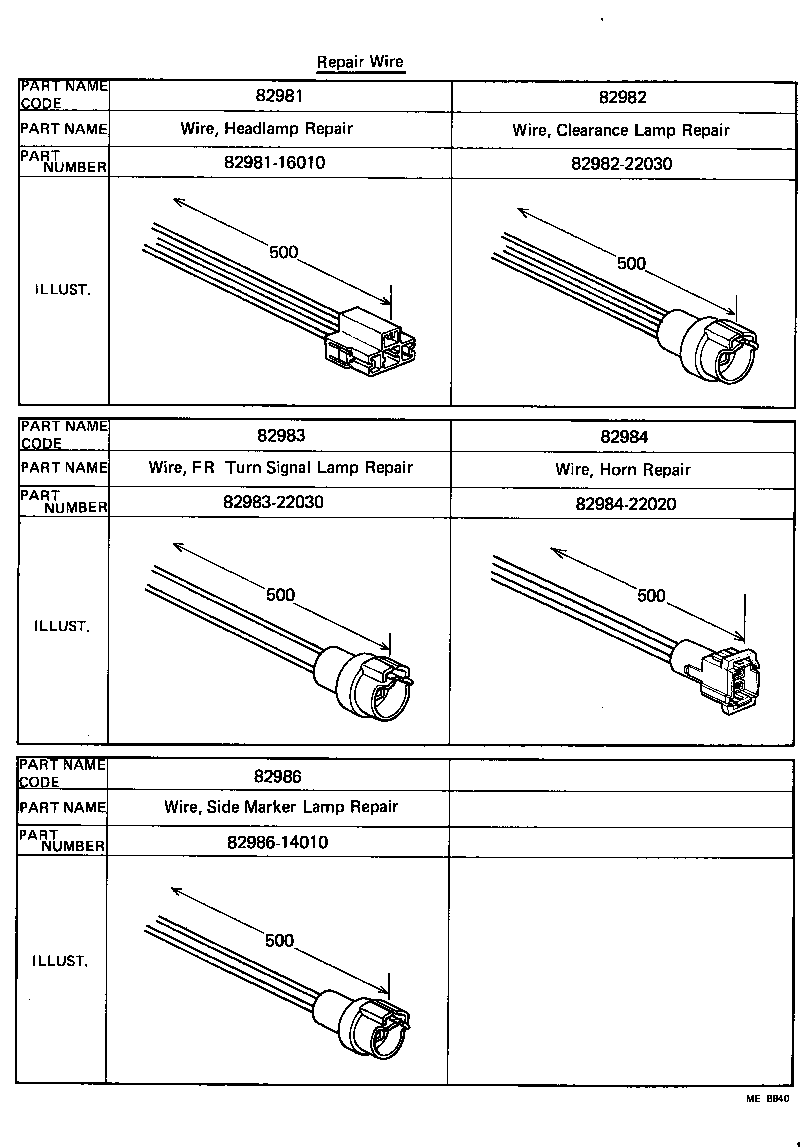

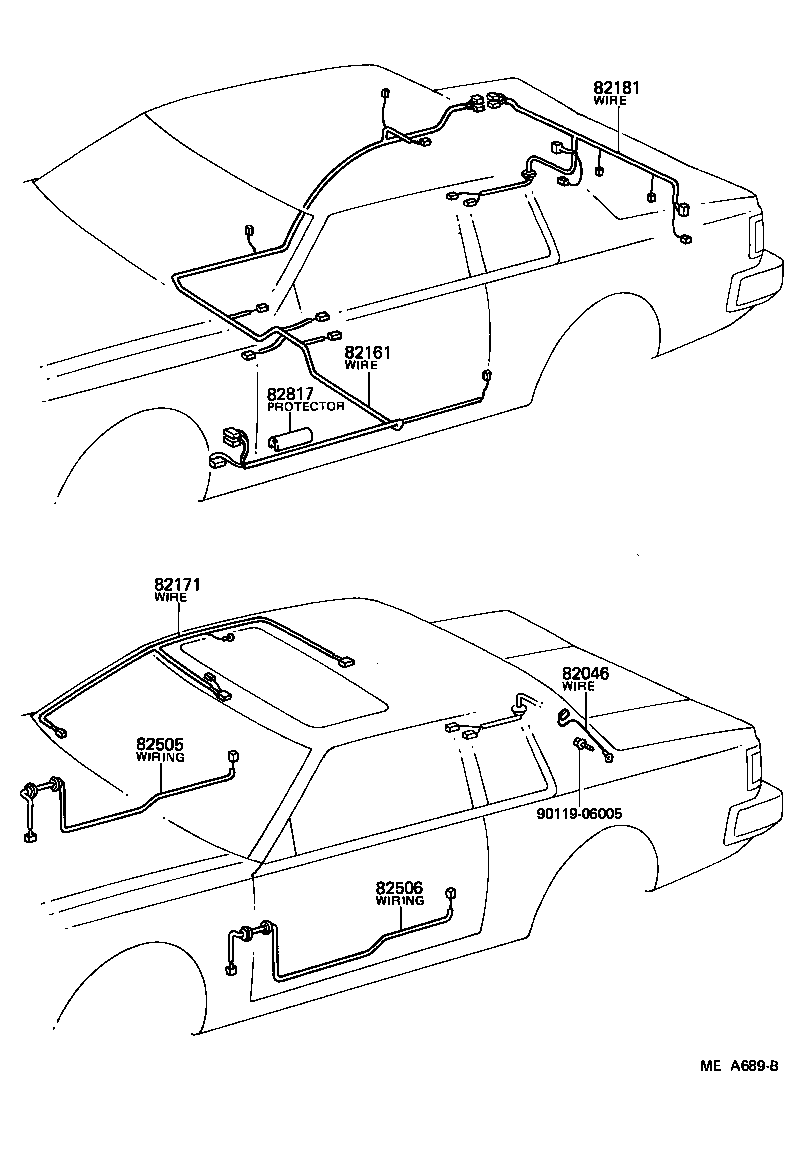

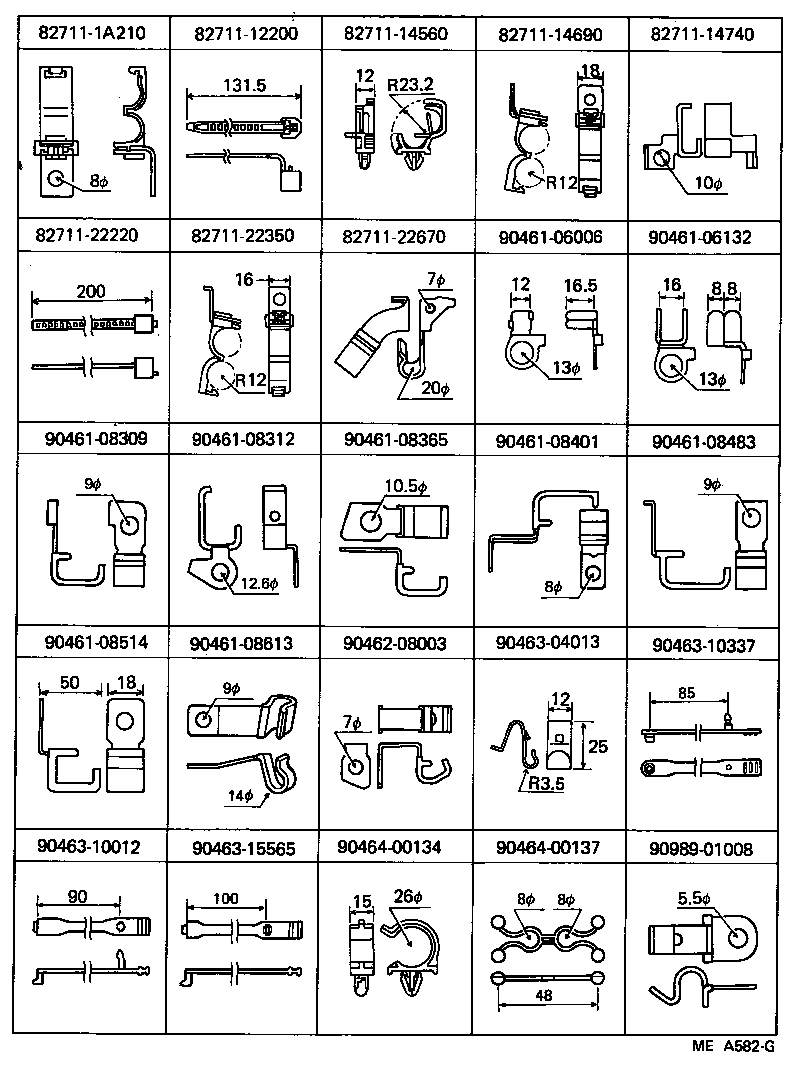

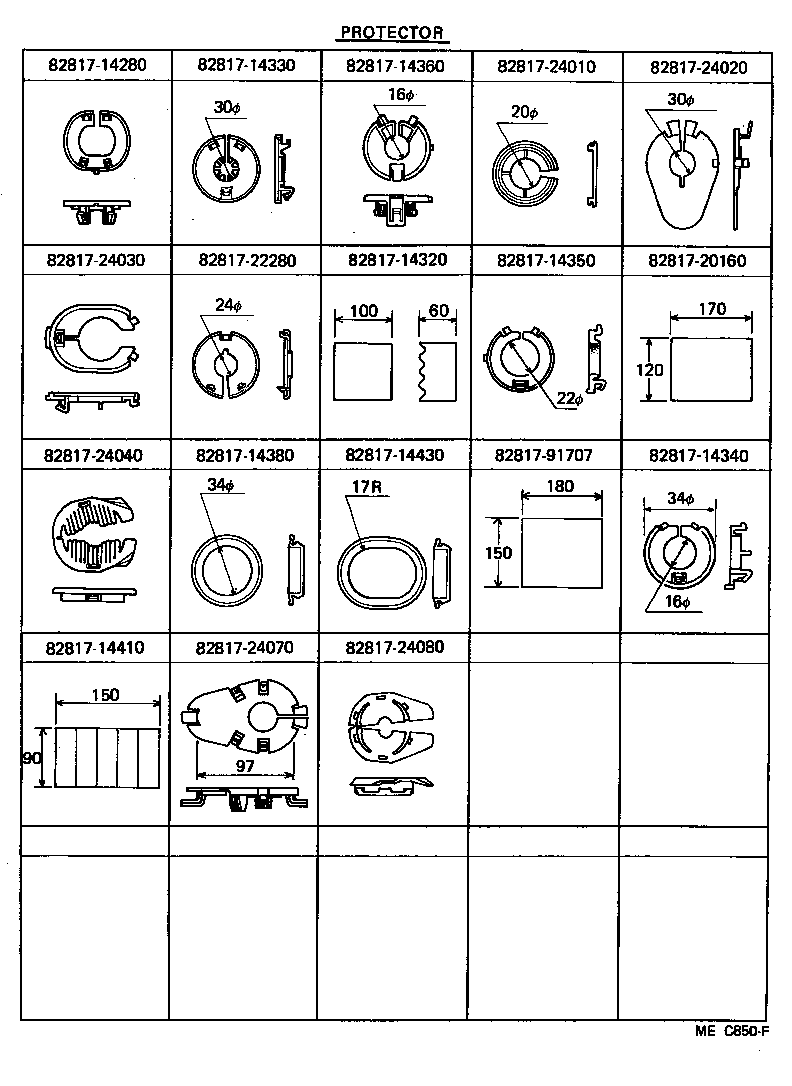

Figure MEA688I MEA688I 1981-08 → — Figure MEA689B MEA689B 1981-08 → 1985-07 Figure MEA690C MEA690C 1981-08 → — Figure MEE483 MEE483 1984-04 → 1985-07 Figure MEB840 MEB840 1981-08 → — Figure MEB841 MEB841 1981-08 → — Figure MEC850F MEC850F 1981-08 → — Figure MED448B MED448B 1981-08 → — Figure MEA572B MEA572B 1981-08 → — Figure MEA582G MEA582G 1981-08 → — Figure MED224H MED224H 1981-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82046 Wire Sub-assy, Rear Window Defogger Earth
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82131 Wire, Cowl
82161 Wire, Floor
82164 Wire, Frame
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82210C Fusible Link
82210D Fusible Link
82210E Fusible Link
82216 Wire, Rear Window Defogger
82219 Wire, Thermo Sensor
82345 Diode
82505 Wiring Sub-assy, Front Door, RH
82506 Wiring Sub-assy, Front Door, LH
82521 Wire, Interior Lamp Feed, A
82670 Block Assy, Junction, NO.1
82817 Protector, Wiring Harness, NO.1
82823 Cap, Terminal, NO.1
82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82986 Wire, Side Marker Lamp Repair
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
