Toyota Celica

1981-08 → 1985-12 · chassis RA6#,MA61 · catalogue 252430 · United States

Discontinued model Data version 1985-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

21 part groups · 3 illustrations

Illustrations

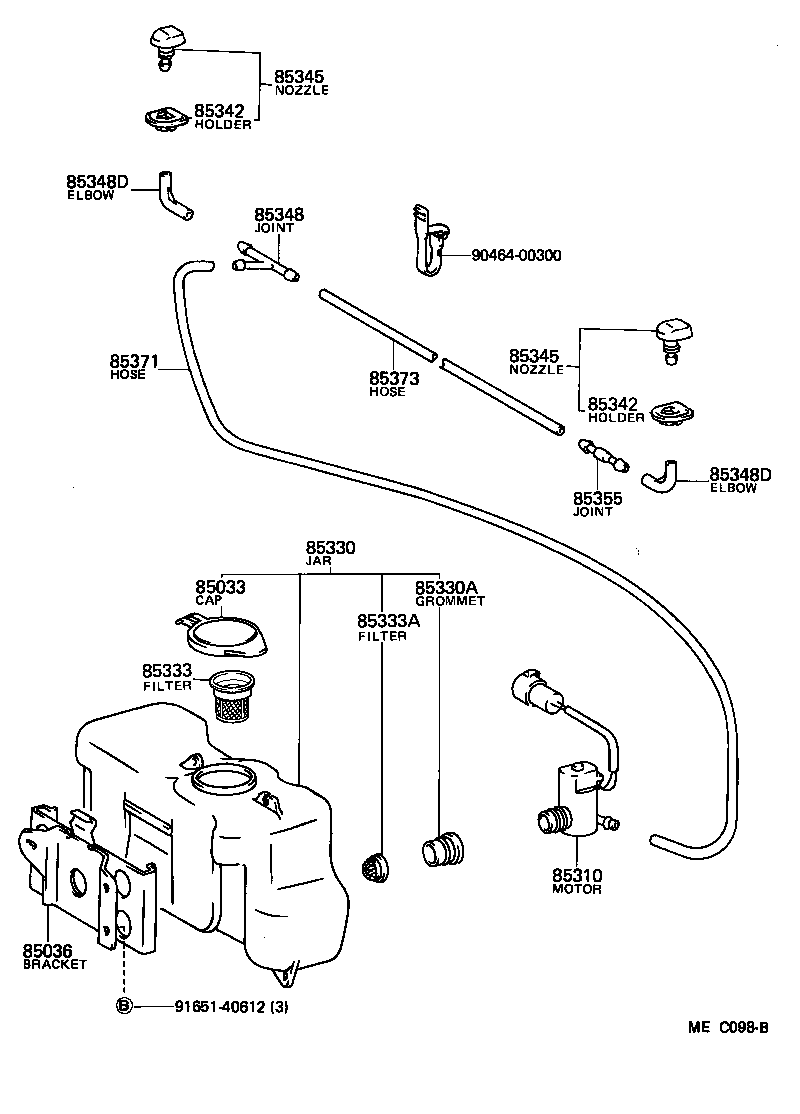

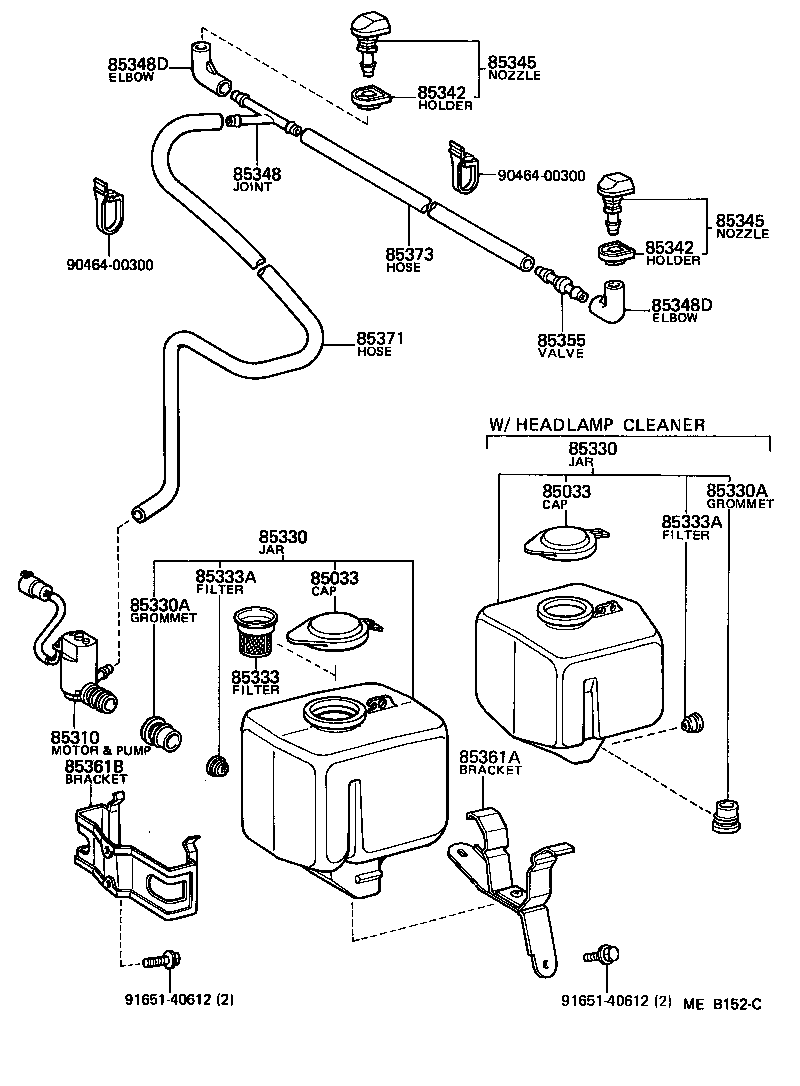

Figure MEA706B MEA706B 1981-08 → 1983-08 Figure MEC098B MEC098B 1982-08 → 1985-07 Figure MEB152C MEB152C 1981-08 → —

Part groups

PNCDescription
85033 Cap Assy, Windshield Washer
85036 Bracket, Sub-assy, Washer
85310 Motor And Pump Assy, Windshield Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85333 Filter, Windshield Washer Jar
85333A Filter, Windshield Washer Jar, NO.2
85338 Hose, Breather
85339 Cap Sub-assy, Reserve Tank
85339A Hose (FOR RADIATOR RESERVE TANK)
85342 Holder, Washer Nozzle
85345 Nozzle, Windshield Washer
85348 Joint, Windshield Washer Hose, NO.1
85348D Joint, Windshield Washer Elbow, NO.1
85355 Valve, Windshield Washer Hose
85361A Bracket, Windshield Washer, NO.1
85361B Bracket, Windshield Washer, NO.2
85361F Bracket, Windshield Washer, NO.3
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
