Toyota Celica

1981-08 → 1985-12 · chassis RA6#,MA61 · catalogue 252430 · United States

Discontinued model Data version 1985-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

10 part groups · 3 illustrations

Illustrations

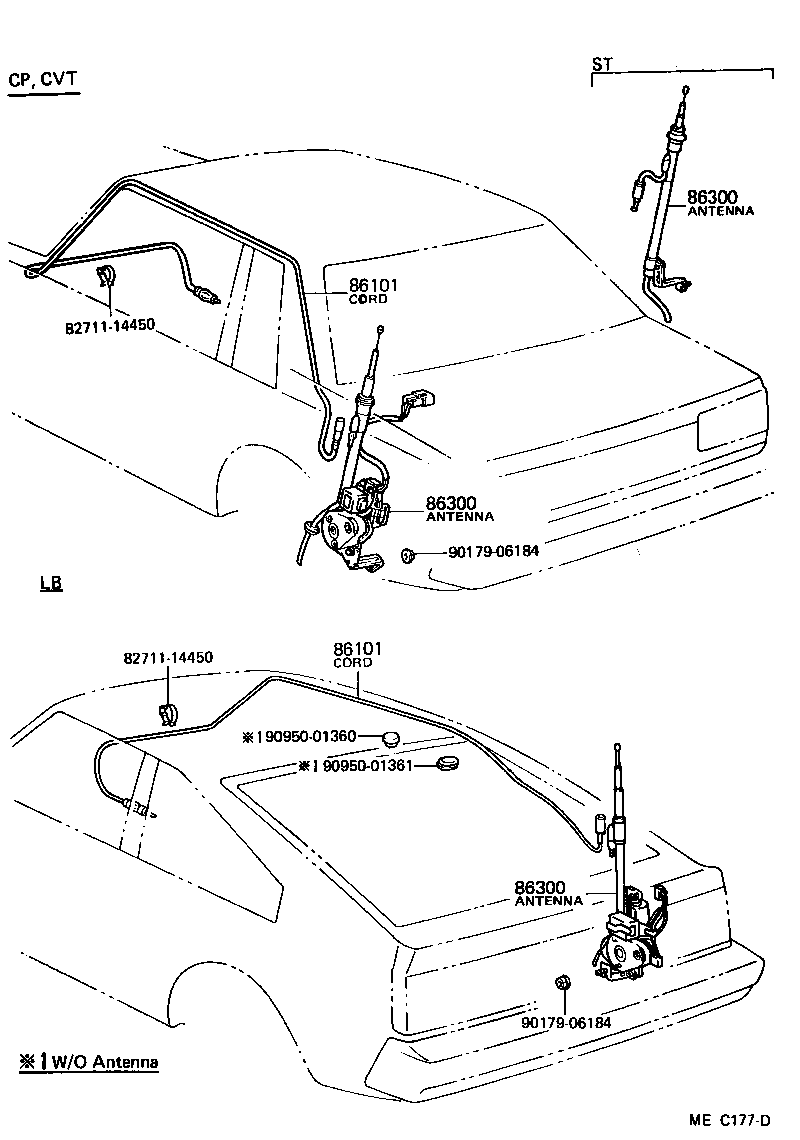

Figure MEA709 MEA709 1981-08 → 1982-08 Figure MEC177D MEC177D 1982-08 → — Figure MEH014 MEH014 1982-08 → —

Part groups

PNCDescription
85914 Relay, Motor Antenna Control
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86300 Antenna Assy, W/Holder
86301 Pole Sub-assy, Antenna
86309A Pole Sub-assy, Motor Antenna
86327 Cable, W/Antenna Drum
86332 Rod, Antenna
86393 Ornament, Antenna
86396 Nut, Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
