Toyota Celica

1981-08 → 1985-12 · chassis RA6#,MA61 · catalogue 252430 · United States

Discontinued model Data version 1985-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

24 part groups · 3 illustrations

Illustrations

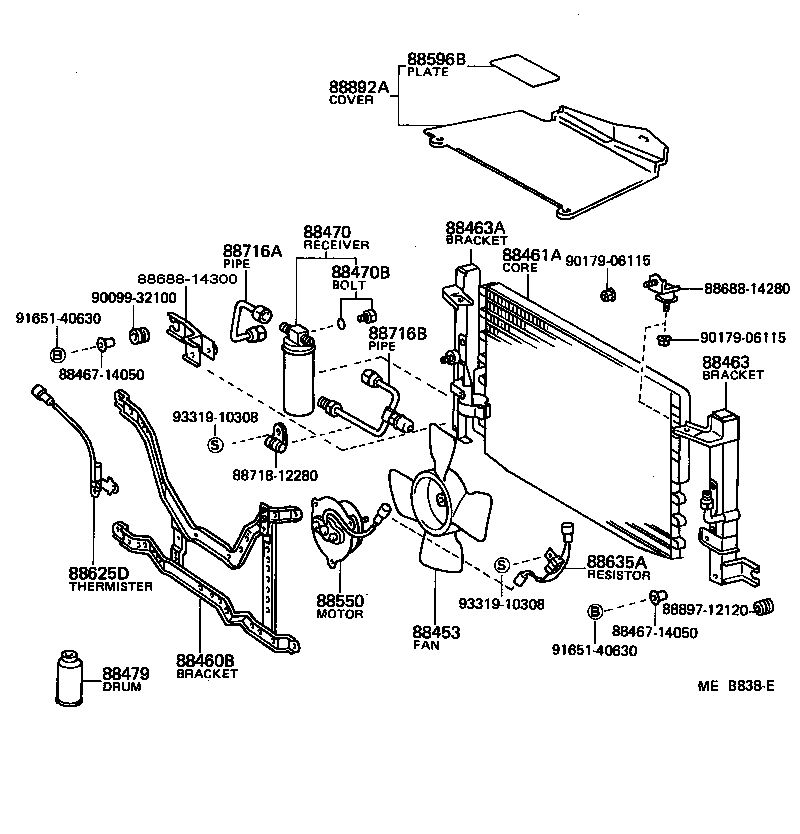

Figure MEB837C MEB837C 1981-08 → — Figure MEA853B MEA853B 1981-08 → 1985-07 Figure MEB838E MEB838E 1981-08 → —

Part groups

PNCDescription
88453 Fan, Cooling (FOR CONDENSER)
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88461A Core, Cooler Condenser
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88470 Receiver & Dryer Assy, Cooler
88470B Bolt, Fuse
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88503 Regulator Assy, Pressure
88550 Motor Assy, Blower (FOR CONDENSER)
88596B Plate, Caution, NO.1
88625D Thermistor, Cooler
88635A Resistor, Blower (FOR COOLER CONDENSER MOTOR)
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88713 Hose, Cooler Refrigerant Suction, NO.2
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88892A Bracket, Cooler Evaporator Mounting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
