Toyota Celica
1987-08 → 1989-08 · chassis ST16# · catalogue 252450 · United States
Discontinued model
Data version 1989-08

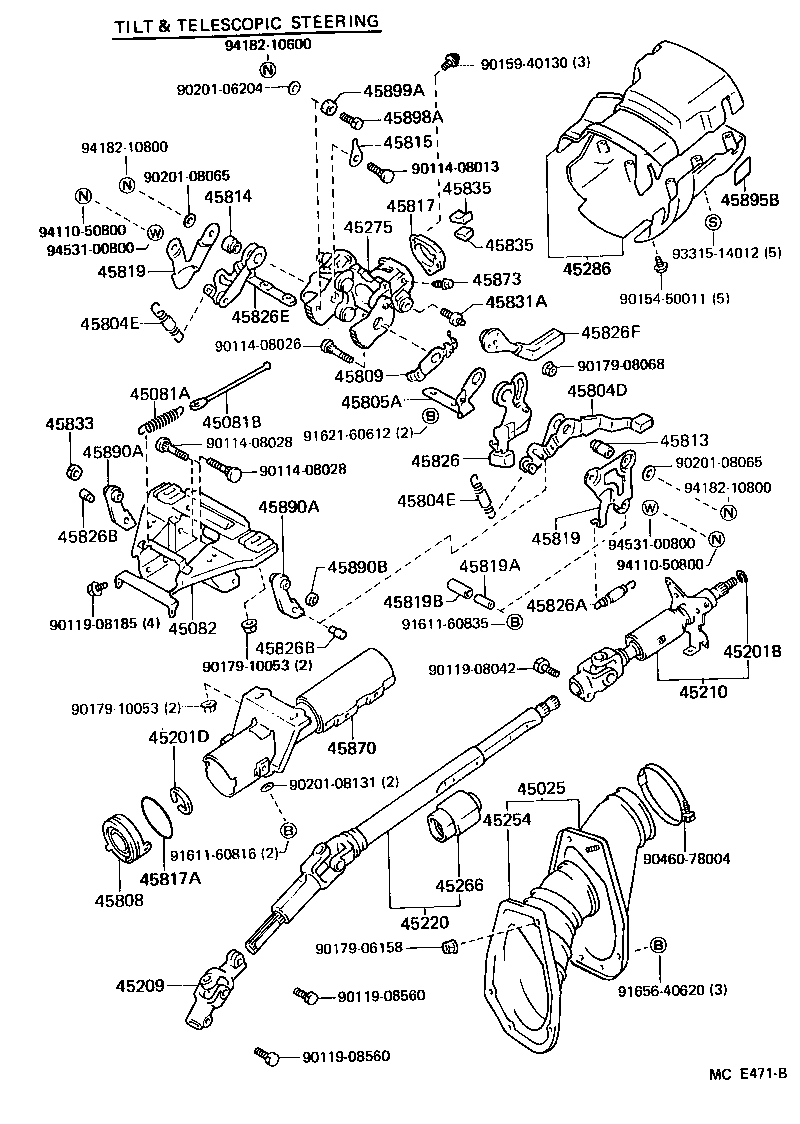

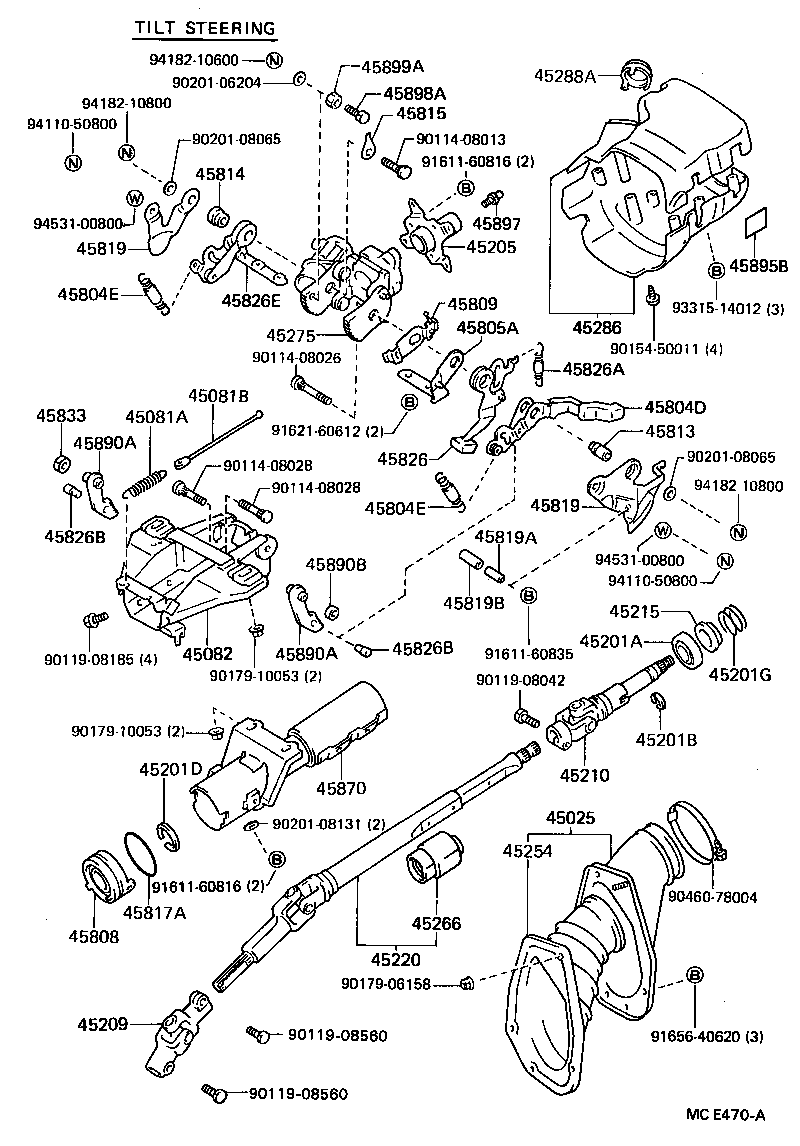

Steering Column & Shaft
50 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 45025 | Cover, Steering Intermediate Shaft |
| 45081A | Spring, Tension(FOR TILT STEERING) |
| 45081B | Cord(FOR TILT STEERING) |
| 45082 | Bracket Sub-assy, Break Away W/Capsule |
| 45201A | Bearing(FOR STEERING MAIN SHAFT) |
| 45201B | Ring, Shaft Snap(FOR STEERING MAIN SHAFT) |
| 45201D | Ring(FOR STEERING MAIN SHAFT) |
| 45201G | Spring, Compression(FOR STEERING MAIN SHAFT) |
| 45205 | Tube Sub-assy, Steering Column |
| 45209 | Yoke Sub-assy, Steering Sliding |
| 45210 | Shaft Assy, Steering Main |
| 45215 | Collar, Main Shaft Bearing Thrust |
| 45220 | Shaft Assy, Steering Intermediate |
| 45254 | Shield, Steering Column Hole |
| 45266 | Cover, Steering Intermediate Shaft Dust |
| 45275 | Bracket, Steering Column, Upper |
| 45286 | Cover, Steering Column |
| 45288A | Spacer, Column Cover |
| 45802 | Protector Sub-assy, Steering Column, NO.1 |
| 45804D | Lever Sub-assy, Steering Tilt(FOR TILT UP CONTROL) |
| 45804E | Spring, Tension(FOR STEERING TILT LEVER) |
| 45805A | Support Sub-assy, Tilt Steering |
| 45808 | Stopper Sub-assy, Steering Shaft Thrust |
| 45809 | Cover Sub-assy, Adjuster Memory |
| 45813 | Collar, Tilt Steering Support, NO.1 |
| 45814 | Collar, Tilt Steering Support, NO.2 |
| 45815 | Shim, Tilt Steering Support |
| 45817 | Stopper, Steering Shaft Thrust |
| 45817A | Ring, O(FOR STEERING SHAFT THRUST STOPPER) |
| 45819 | Retainer, Tilt Lever |
| 45819A | Collar(FOR TILT LEVER RETAINER) |
| 45819B | Cushion(FOR TILT LEVER RETAINER) |
| 45826 | Lever, Steering Tilt |
| 45826A | Spring, Tension(FOR STEERING TILT LEVER) |
| 45826B | Pin(FOR STEERING TILT LEVER) |
| 45826E | Lever, Steering Tilt(FOR TILT ADJUST) |
| 45826F | Lever, Steering Telescopic |
| 45831A | Bolt, Telescope Lever Lock |
| 45833 | Nut, Tilt Steering Adjusting, NO.1 |
| 45835 | Wedge, Lock |
| 45870 | Tube Assy, Steering Column |
| 45873 | Stopper, Steering Column Tube |
| 45878 | Bracket, Steering Column Upper Support |
| 45881A | Protector, Steering Column, NO.2 |
| 45890A | Pawl Assy, Tilt Steering |
| 45890B | Spacer(FOR TILT STEERING PAWL) |
| 45895B | Plate, Tilt Lever Instruction |
| 45897 | Bolt, Steering Lock Set |
| 45898A | Bolt, Return Spring Set |
| 45899A | Cover, Tilt Steering Support Stopper |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
