Toyota Celica

1993-09 → 1999-08 · chassis AT200,ST204 · catalogue 252470 · United States

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 5 illustrations

Illustrations

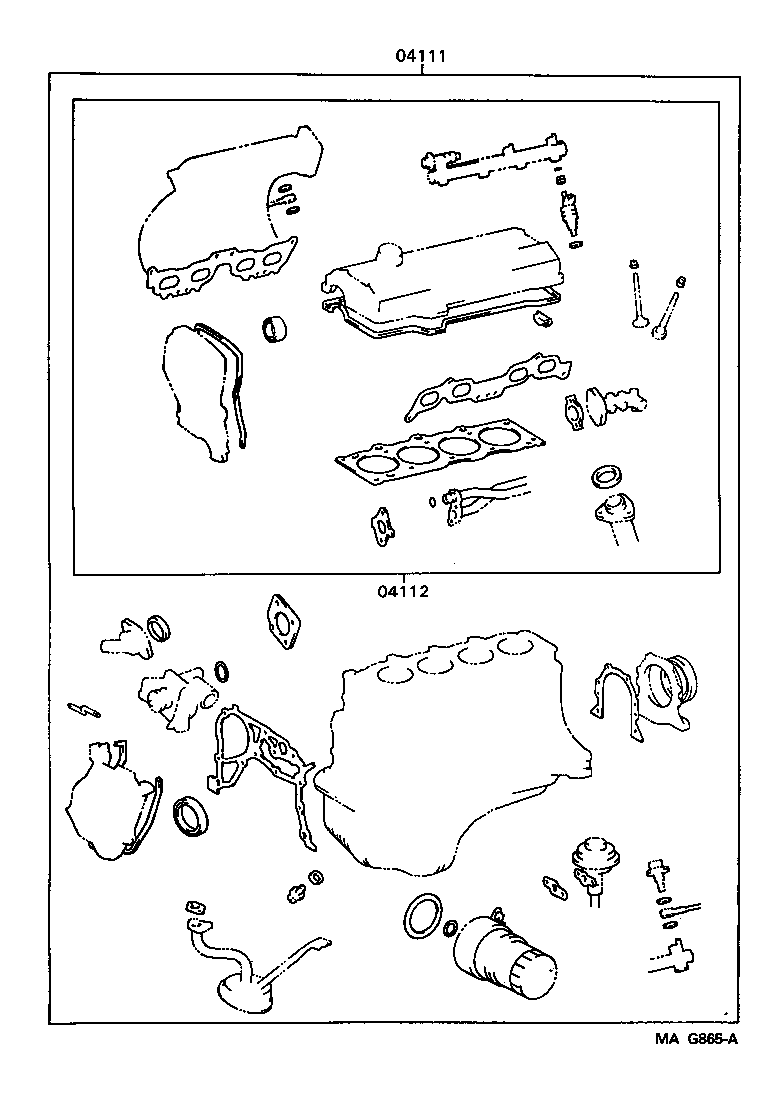

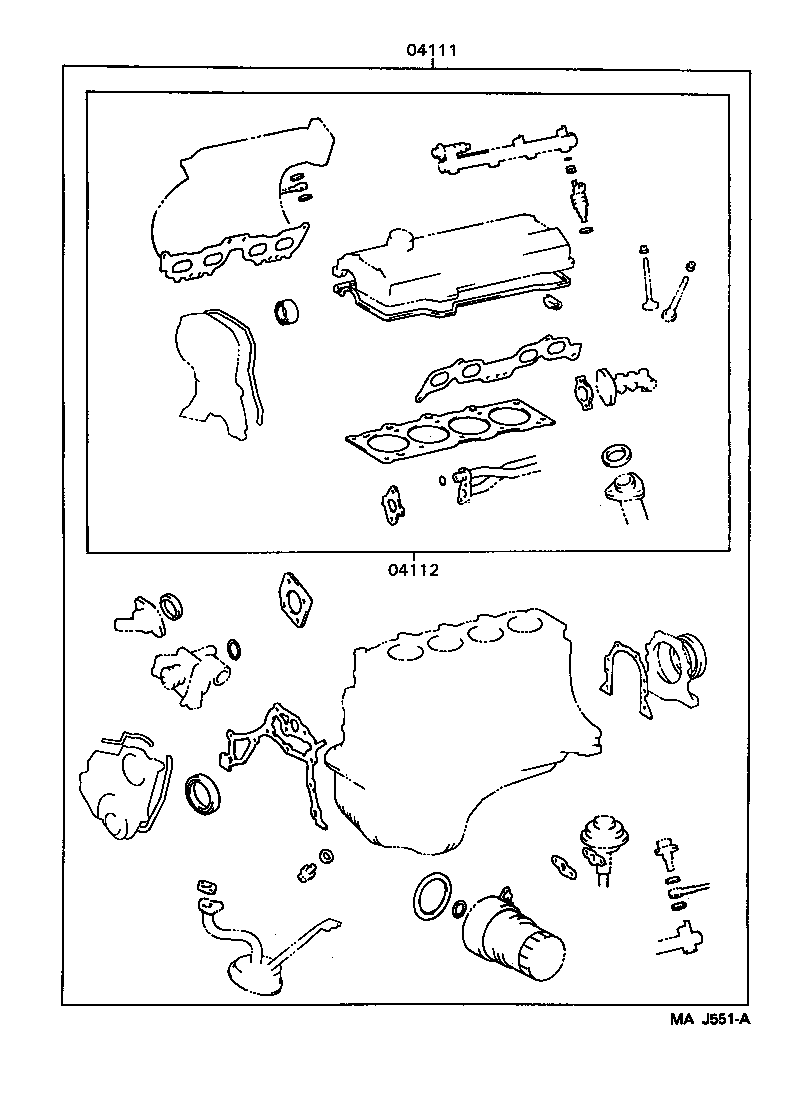

Figure NA042A NA042A 1993-09 → 1997-12 Figure MAG865A MAG865A 1993-09 → 1995-08 Figure MAG865A MAG865A 1995-08 → 1995-10 Figure MAJ551A MAJ551A 1995-08 → 1995-10 Figure MAJ551A MAJ551A 1995-10 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
