Toyota Celica

1993-09 → 1999-08 · chassis AT200,ST204 · catalogue 252470 · United States

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

14 part groups · 2 illustrations

Illustrations

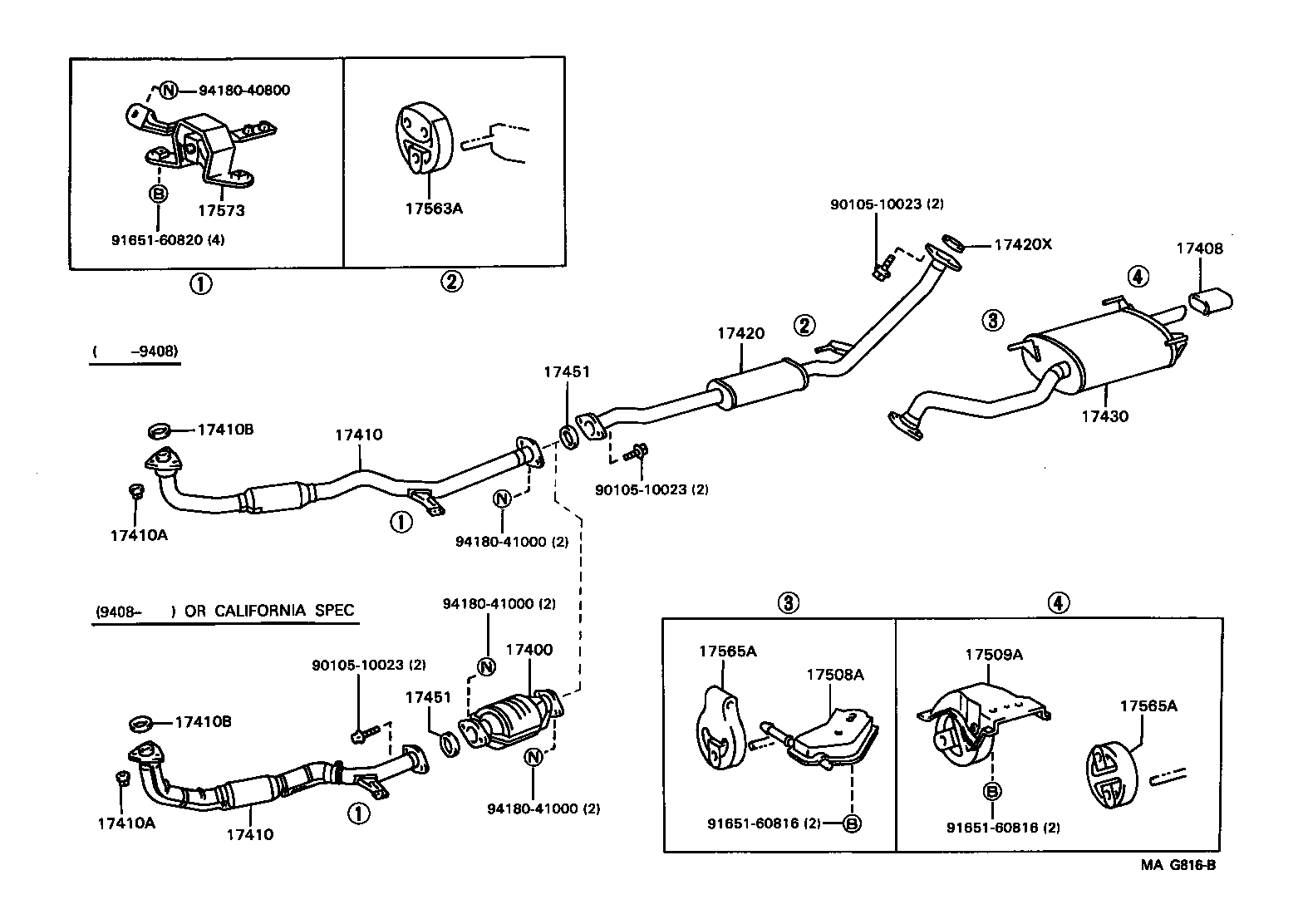

Figure MAG815 MAG815 1993-09 → 1997-12 Figure MAG816B MAG816B 1993-09 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17408 Baffle Sub Assy, Exhaust Tailpipe
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17508A Bracket Sub-assy, Exhaust Pipe NO.3 Support
17509A Bracket Sub-assy, Exhaust Pipe NO.4 Support
17563A Support, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17573 Bracket, Exhaust Pipe NO.1 Support, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
