Toyota Celica

1993-09 → 1999-08 · chassis AT200,ST204 · catalogue 252470 · United States

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

8 part groups · 3 illustrations

Illustrations

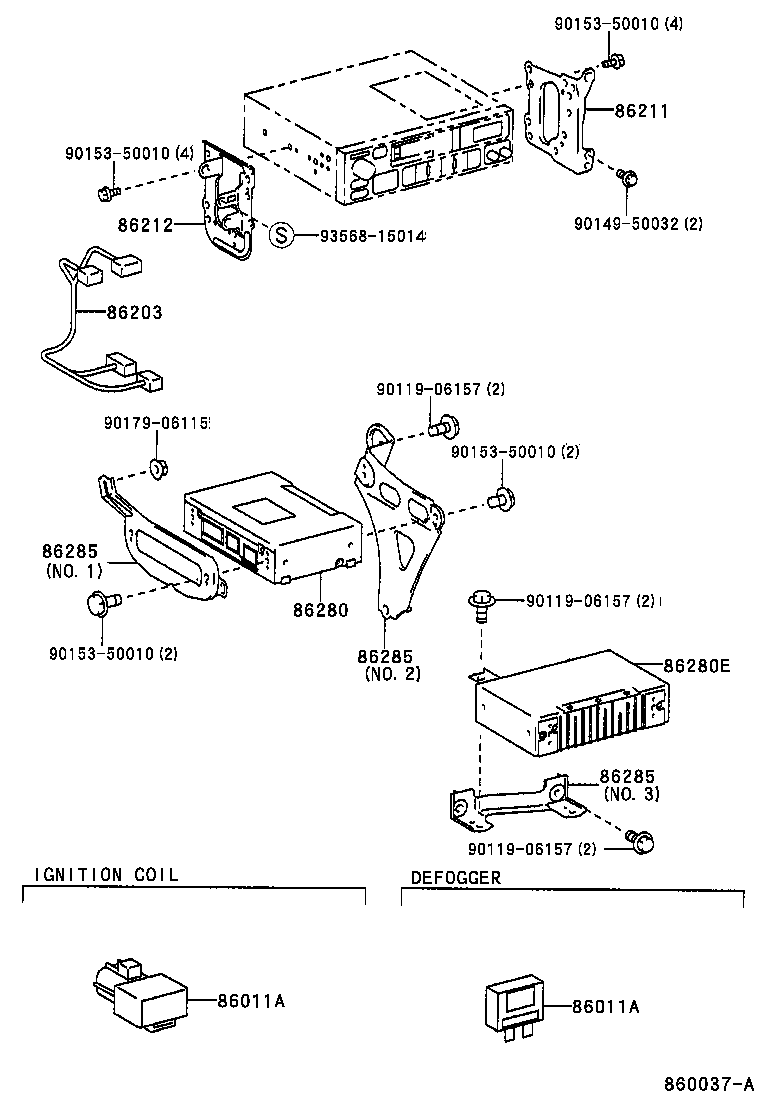

Figure 860035A 860035A 1993-09 → — Figure 860036D 860036D 1993-09 → — Figure 860037A 860037A 1993-09 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86120 Receiver Assy, Radio
86203 Wire, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86280 Amplifier Assy, Stereo Component
86280E Amplifier Set, Stereo Component
86285 Bracket, Amplifier, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
