Toyota Celica
1993-09 → 1999-08 · chassis AT200,ST204 · catalogue 252470 · United States
Discontinued model
Data version 2000-03
Antenna

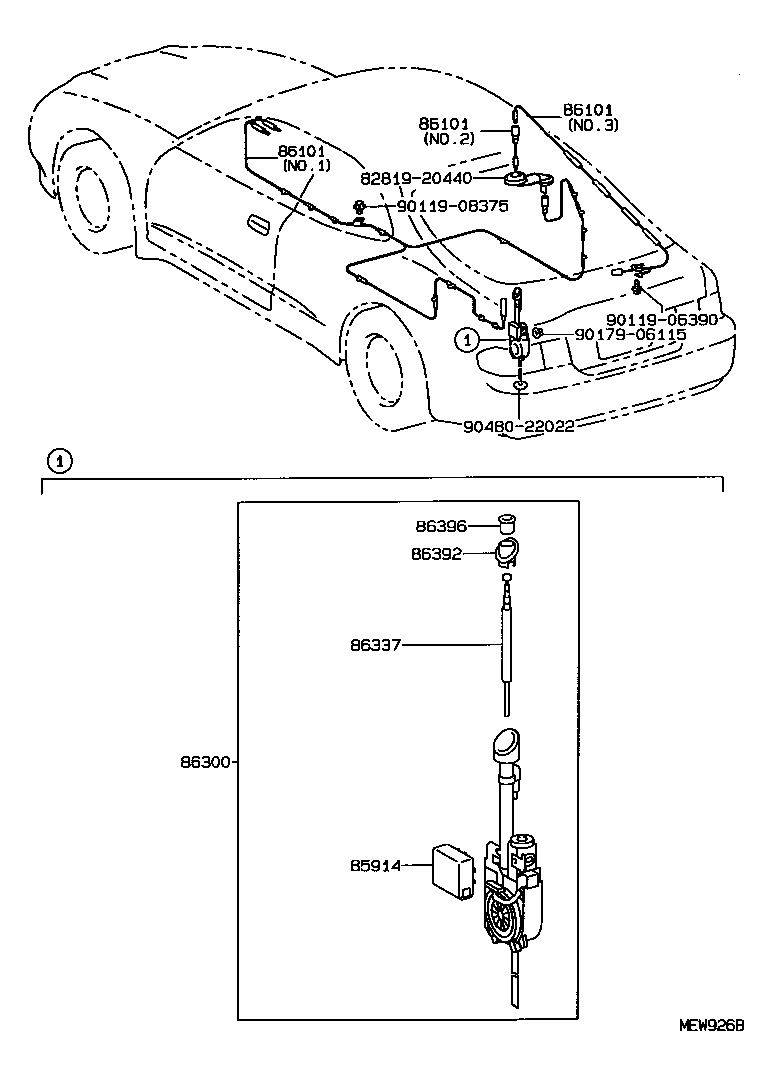

7 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 85914 | Relay, Motor Antenna Control |
| 86101 | Cord Sub-assy, Antenna |
| 86300 | Antenna Assy, W/Holder |
| 86309B | Pole Sub-assy, Pull Top Antenna |
| 86337 | Rod & Pipe, Sealed W/Cable |
| 86392 | Ornament, Antenna |
| 86396 | Nut, Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
