Toyota Celica

1999-08 → 2005-07 · chassis ZZT23# · catalogue 252480 · United States

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

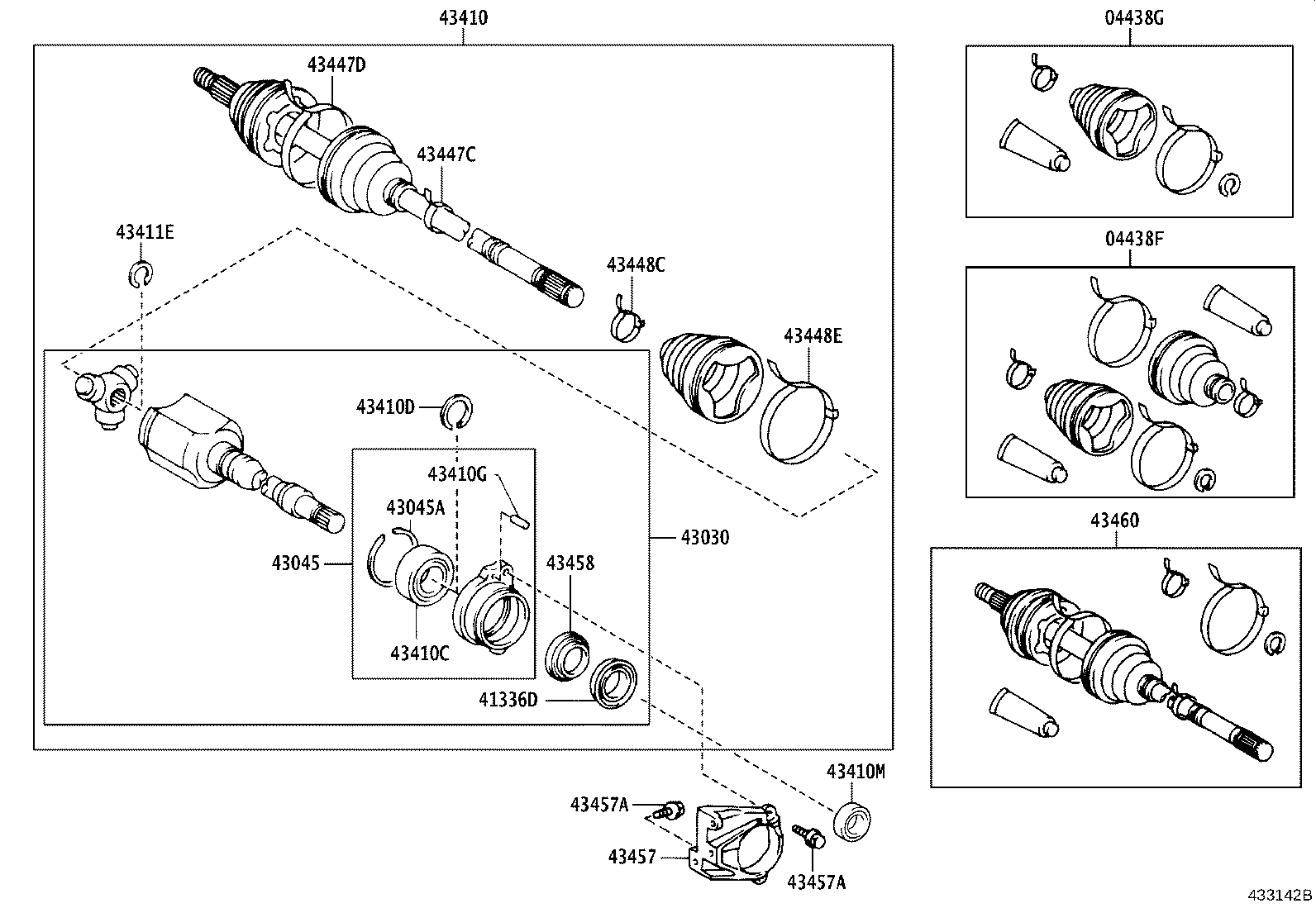

Exploded illustration 433142B 43447C — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (5 parts) 43447D — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (5 parts) 43460 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH (12 parts) 43411E — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) (4 parts) 43448C — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) (4 parts) 43410D — RING, SHAFT SNAP (FOR FRONT DRIVE SHAFT) (2 parts) 43045A — RING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING) (2 parts) 43410G — PIN, STRAIGHT (FOR FRONT DRIVE SHAFT) (2 parts) 43410C — BEARING (FOR FRONT DRIVE SHAFT) (2 parts) 43458 — COVER, FRONT DRIVE SHAFT DUST (2 parts) 43448E — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) (6 parts) 41336D — COVER, FRONT DRIVE SHAFT DUST, RH (2 parts) 43457A — BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) (4 parts) 43457A — BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) (4 parts) 43457 — BRACKET, DRIVE SHAFT BEARING (4 parts) 04438G — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH (6 parts) 04438F — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH (6 parts) 43410M — OIL SEAL, FRONT DRIVE SHAFT, RH (8 parts) 43030 — JOINT ASSY, FRONT DRIVE INBOARD, RH (4 parts) 43410 — SHAFT ASSY, FRONT DRIVE, RH (14 parts) 43045 — CASE SUB ASSY, DRIVE SHAFT BEARING (5 parts)
433142B · 21 callouts Full size ↗
99 parts on this figure
Part number Description Fitment Price
04438F — Boot Kit, Front Drive Shaft, IN & Outboard, RH
04438-12660 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2001-04 → 2002-08 ended
ZZT230 4FC —
04438-20390 Boot Kit, Front Drive Shaft, IN & Outboard, RH
1999-08 → 2001-04 ended
ZZT230 4FC —
04438-20410 Boot Kit, Front Drive Shaft, IN & Outboard, RH
1999-08 → 2000-08 ended
ZZT231;ZZT230 5F —
04438-20411 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2000-08 → 2002-08 ended
ZZT231;ZZT230 5F —
04428-12250 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2002-08 → 2005-07 ended
ZZT230 4FC —
04438-20411 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2002-08 → 2005-07 ended
ZZT231;ZZT230 5F —
04438G — Boot Kit, Front Drive Shaft Inboard Joint, RH
04438-12470 Boot Kit, Front Drive Shaft Inboard Joint, RH
2001-04 → 2002-08 ended
ZZT230 4FC —
04438-20380 Boot Kit, Front Drive Shaft Inboard Joint, RH
1999-08 → 2001-04 ended
ZZT230 4FC —
04438-20400 Boot Kit, Front Drive Shaft Inboard Joint, RH
1999-08 → 2000-08 ended
ZZT231;ZZT230 5F —
04438-20401 Boot Kit, Front Drive Shaft Inboard Joint, RH
2000-08 → 2002-08 ended
ZZT231;ZZT230 5F —
04438-20401 Boot Kit, Front Drive Shaft Inboard Joint, RH
2002-08 → 2005-07 ended
ZZT231;ZZT230 5F —
04438-42200 Boot Kit, Front Drive Shaft Inboard Joint, RH
2002-08 → 2005-07 ended
ZZT230 4FC —
41336D — Cover, Front Drive Shaft Dust, RH
41336-20050 Cover, Front Drive Shaft Dust, RH
1999-08 → 2002-08 ended
ZZT23# —
41336-20050 Cover, Front Drive Shaft Dust, RH
2002-08 → 2005-07 ended
ZZT23# —
43030 — Joint Assy, Front Drive Inboard, RH
43030-20100 Joint Assy, Front Drive Inboard, RH
1999-08 → 2002-08 ended
ZZT231;ZZT230 5F —
43030-32060 Joint Assy, Front Drive Inboard, RH
1999-08 → 2002-08 ended
ZZT230 4FC —
43030-20100 Joint Assy, Front Drive Inboard, RH
2002-08 → 2005-07 ended
ZZT231;ZZT230 5F —
43030-32060 Joint Assy, Front Drive Inboard, RH
2002-08 → 2005-07 ended
ZZT230 4FC —
43045 — Case Sub Assy, Drive Shaft Bearing
43045-20010 Case Sub Assy, Drive Shaft Bearing
1999-08 → 1999-12 ended
ZZT23# —
43045-20010 Case Sub Assy, Drive Shaft Bearing
1999-12 → 2002-08 ended
ZZT230 4FC —
43045-20040 Case Sub Assy, Drive Shaft Bearing
1999-12 → 2002-08 ended
ZZT231;ZZT230 5F —
43045-20010 Case Sub Assy, Drive Shaft Bearing
2002-08 → 2005-07 ended
ZZT230 4FC —
43045-20040 Case Sub Assy, Drive Shaft Bearing
2002-08 → 2005-07 ended
ZZT231;ZZT230 5F —
43045A — Ring, Snap (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)
96153-00680 Ring, Snap (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)
1999-08 → 2002-08 ended
ZZT23# —
96153-00680 Ring, Snap (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)
2002-08 → 2005-07 ended
ZZT23# —
43410 — Shaft Assy, Front Drive, RH
43410-20600 note Shaft Assy, Front Drive, RH
1999-08 → 2002-08 ended
ZZT231 4FC —
43410-20760 Shaft Assy, Front Drive, RH
1999-08 → 2002-08 ended
ZZT231 4FC —
43410-20770 Shaft Assy, Front Drive, RH
1999-08 → 2001-04 ended
ZZT230 4FC —
43410-20771 Shaft Assy, Front Drive, RH
2001-04 → 2002-08 ended
ZZT230 4FC —
43410-20780 note Shaft Assy, Front Drive, RH
1999-08 → 2001-04 ended
ZZT230 4FC —
43410-20781 note Shaft Assy, Front Drive, RH
2001-04 → 2002-08 ended
ZZT230 4FC —
43410-20790 Shaft Assy, Front Drive, RH
1999-08 → 2002-08 ended
ZZT23# MTM —
43410-20800 note Shaft Assy, Front Drive, RH
1999-08 → 2002-08 ended
ZZT23# MTM —
43410-20600 note Shaft Assy, Front Drive, RH
2002-08 → 2005-07 ended
ZZT231 4FC —
43410-20760 Shaft Assy, Front Drive, RH
2002-08 → 2005-07 ended
ZZT231 4FC —
43410-20771 Shaft Assy, Front Drive, RH
2002-08 → 2005-07 ended
ZZT230 4FC —
43410-20781 note Shaft Assy, Front Drive, RH
2002-08 → 2005-07 ended
ZZT230 4FC —
43410-20790 Shaft Assy, Front Drive, RH
2002-08 → 2005-07 ended
ZZT23# MTM —
43410-20800 note Shaft Assy, Front Drive, RH
2002-08 → 2005-07 ended
ZZT23# MTM —
43410C — Bearing (FOR FRONT DRIVE SHAFT)
90363-36004 Bearing (FOR FRONT DRIVE SHAFT)
1999-08 → 2002-08 ended
ZZT23# —
90363-36004 Bearing (FOR FRONT DRIVE SHAFT)
2002-08 → 2005-07 ended
ZZT23# —
43410D — Ring, Shaft Snap (FOR FRONT DRIVE SHAFT)
90520-33008 Ring, Shaft Snap (FOR FRONT DRIVE SHAFT)
1999-08 → 2002-08 ended
ZZT23# —
90520-33008 Ring, Shaft Snap (FOR FRONT DRIVE SHAFT)
2002-08 → 2005-07 ended
ZZT23# —
43410G — Pin, Straight (FOR FRONT DRIVE SHAFT)
90250-06003 Pin, Straight (FOR FRONT DRIVE SHAFT)
1999-08 → 2002-08 ended
ZZT23# —
90250-06003 Pin, Straight (FOR FRONT DRIVE SHAFT)
2002-08 → 2005-07 ended
ZZT23# —
43410M — Oil Seal, Front Drive Shaft, RH
90311-35019 Oil Seal, Front Drive Shaft, RH
1999-08 → 2002-08 ended
ZZT231 4FC —
90311-35043 note Oil Seal, Front Drive Shaft, RH
1999-08 → 2000-03 ended
ZZT23# MTM —
90311-35045 Oil Seal, Front Drive Shaft, RH
1999-08 → 2002-08 ended
ZZT230 4FC —
90311-35051 note Oil Seal, Front Drive Shaft, RH
2000-03 → 2002-08 ended
ZZT23# MTM —
90311-35019 Oil Seal, Front Drive Shaft, RH
2002-08 → 2005-07 ended
ZZT231 4FC —
90311-35045 Oil Seal, Front Drive Shaft, RH
2002-08 → 2005-02 ended
ZZT230 4FC —
90311-35051 note Oil Seal, Front Drive Shaft, RH
2002-08 → 2005-07 ended
ZZT23# MTM —
90311-35055 Oil Seal, Front Drive Shaft, RH
2005-02 → 2005-07 ended
ZZT230 4FC —
43411E — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
90520-22005 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
1999-08 → 2002-08 ended
ZZT230 4FC —
90520-25034 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
1999-08 → 2002-08 ended
ZZT231;ZZT230 5F —
90520-22005 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2002-08 → 2005-07 ended
ZZT230 4FC —
90520-25034 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2002-08 → 2005-07 ended
ZZT231;ZZT230 5F —
43447C — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12150 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2001-04 → 2002-08 ended
ZZT230 4FC —
42345-20100 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1999-08 → 2001-04 ended
ZZT230 4FC —
90949-01A65 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1999-08 → 2002-08 ended
ZZT231;ZZT230 5F —
42345-12150 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2002-08 → 2005-07 ended
ZZT230 4FC —
90949-01A65 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2002-08 → 2005-07 ended
ZZT231;ZZT230 5F —
43447D — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12140 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2001-04 → 2002-08 ended
ZZT230 4FC —
42345-20120 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1999-08 → 2001-04 ended
ZZT230 4FC —
42345-20130 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1999-08 → 2002-08 ended
ZZT231;ZZT230 5F —
42345-12140 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2002-08 → 2005-07 ended
ZZT230 4FC —
42345-20130 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2002-08 → 2005-07 ended
ZZT231;ZZT230 5F —
43448C — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
90949-01078 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1999-08 → 2002-08 ended
ZZT230 4FC —
90949-01108 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1999-08 → 2002-08 ended
ZZT231;ZZT230 5F —
90949-01078 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2002-08 → 2005-07 ended
ZZT230 4FC —
90949-01108 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2002-08 → 2005-07 ended
ZZT231;ZZT230 5F —
43448E — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2002-02 → 2002-08 ended
ZZT230 4FC —
42346-22010 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1999-08 → 2002-08 ended
ZZT231;ZZT230 5F —
90949-01076 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1999-08 → 2002-03 ended
ZZT230 4FC —
90949-01946 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1999-08 → 2002-03 ended
ZZT230 4FC —
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2002-08 → 2005-07 ended
ZZT230 4FC —
42346-22010 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2002-08 → 2005-07 ended
ZZT231;ZZT230 5F —
43457 — Bracket, Drive Shaft Bearing
43457-20080 Bracket, Drive Shaft Bearing
1999-08 → 2002-08 ended
ZZT23# MTM —
43457-32070 Bracket, Drive Shaft Bearing
1999-08 → 2002-08 ended
ZZT23# 4FC —
43457-20080 Bracket, Drive Shaft Bearing
2002-08 → 2005-07 ended
ZZT23# MTM —
43457-32070 Bracket, Drive Shaft Bearing
2002-08 → 2005-07 ended
ZZT23# 4FC —
43457A — Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90105-10285 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
1999-08 → 2002-08 ended
ZZT23# —
90105-10381 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
1999-08 → 2002-08 ended
ZZT23# —
90105-10361 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
2002-08 → 2005-07 ended
ZZT23# —
90105-10381 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
2002-08 → 2005-07 ended
ZZT23# —
43458 — Cover, Front Drive Shaft Dust
43458-20011 Cover, Front Drive Shaft Dust
1999-08 → 2002-08 ended
ZZT23# —
43458-20011 Cover, Front Drive Shaft Dust
2002-08 → 2005-07 ended
ZZT23# —
43460 — Shaft Assy, Front Drive Outboard Joint, RH
43470-29565 Shaft Assy, Front Drive Outboard Joint, RH
1999-08 → 2001-04 ended
ZZT230 4FC —
43470-29566 Shaft Assy, Front Drive Outboard Joint, RH
2001-04 → 2002-08 ended
ZZT230 4FC —
43470-29575 note Shaft Assy, Front Drive Outboard Joint, RH
1999-08 → 2001-04 ended
ZZT230 4FC —
43470-29585 Shaft Assy, Front Drive Outboard Joint, RH
1999-08 → 2000-08 ended
ZZT231;ZZT230 5F —
43470-29586 Shaft Assy, Front Drive Outboard Joint, RH
2000-08 → 2002-08 ended
ZZT231;ZZT230 5F —
43470-29595 note Shaft Assy, Front Drive Outboard Joint, RH
1999-08 → 2000-08 ended
ZZT231;ZZT230 5F —
43470-29596 note Shaft Assy, Front Drive Outboard Joint, RH
2000-08 → 2002-08 ended
ZZT231;ZZT230 5F —
43470-29655 note Shaft Assy, Front Drive Outboard Joint, RH
2001-04 → 2002-08 ended
ZZT230 4FC —
43470-29566 Shaft Assy, Front Drive Outboard Joint, RH
2002-08 → 2005-07 ended
ZZT230 4FC —
43470-29586 Shaft Assy, Front Drive Outboard Joint, RH
2002-08 → 2005-07 ended
ZZT231;ZZT230 5F —
43470-29596 note Shaft Assy, Front Drive Outboard Joint, RH
2002-08 → 2005-07 ended
ZZT231;ZZT230 5F —
43470-80096 note Shaft Assy, Front Drive Outboard Joint, RH
2002-08 → 2005-07 ended
ZZT230 4FC —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
