Toyota Celica

1999-08 → 2005-07 · chassis ZZT23# · catalogue 252480 · United States

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

20 part groups · 2 illustrations

Illustrations

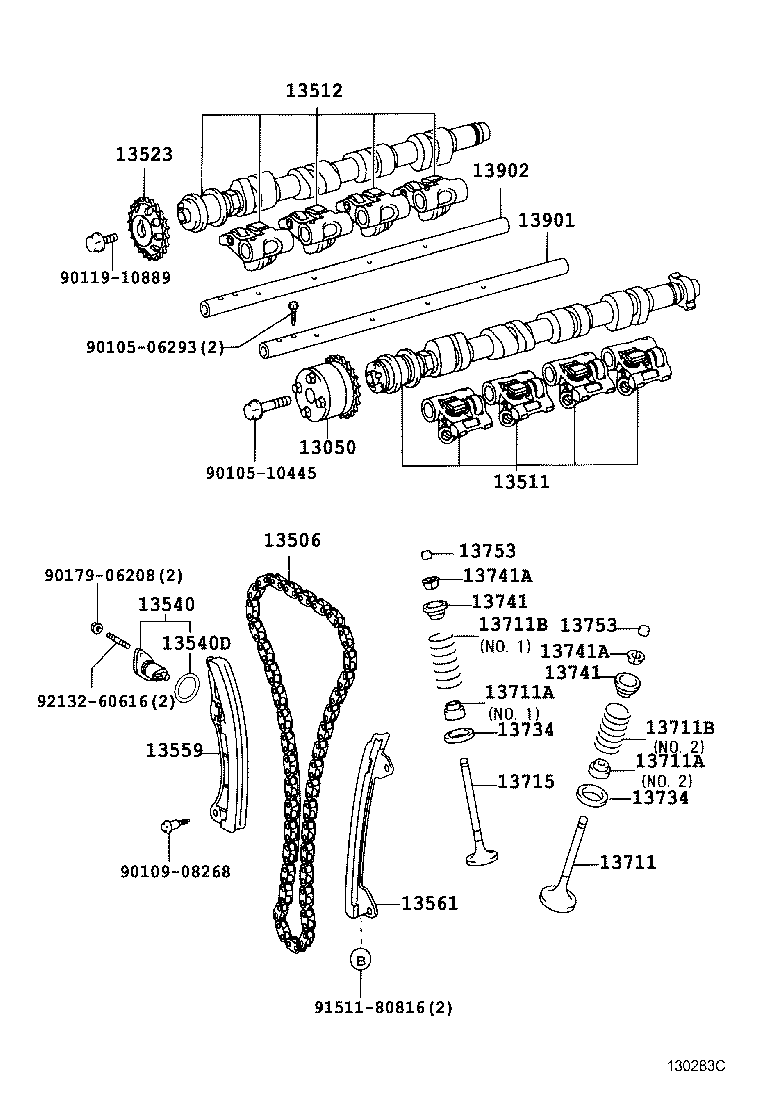

Figure 130190C 130190C 1999-08 → 2005-07 Figure 130283C 130283C 1999-08 → 2005-07

Part groups

PNCDescription
13050 Gear Assy, Camshaft Timing
13506 Chain Sub-assy
13511 Camshaft
13512 Camshaft, NO.2
13523 Gear OR Sprocket, Camshaft Timing
13540 Tensioner Assy, Chain, NO.1
13540D Ring, O(FOR CHAIN TENSIONER)
13559 Slipper, Chain Tensioner
13561 Damper, Chain Vibration, NO.1
13711 Valve, Intake
13711A Seal OR Ring, O(FOR VALVE STEM OIL)
13711B Spring, Compression(FOR INNER)
13715 Valve, Exhaust
13734 Seat, Valve Spring
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13751 Lifter, Valve
13753 Shim, Valve Adjusting
13901 Shaft Sub-assy, Valve Rocker, NO.1
13902 Shaft Sub-assy, Valve Rocker, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
