Toyota Celica

1999-08 → 2005-07 · chassis ZZT23# · catalogue 252480 · United States

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

9 part groups · 2 illustrations

Illustrations

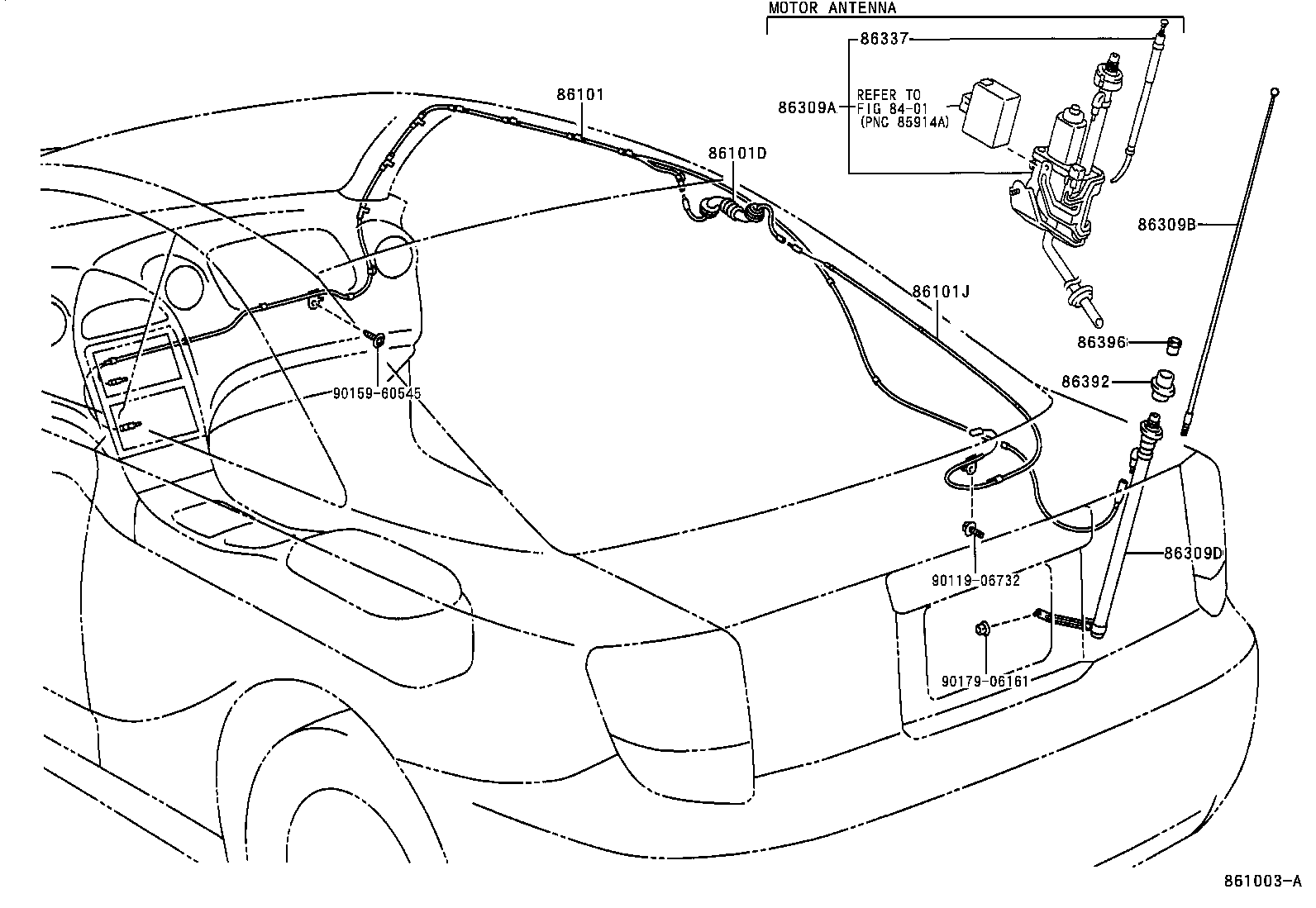

Figure 861002A 861002A 1999-08 → 2005-07 Figure 861003A 861003A 1999-08 → 2005-07

Part groups

PNCDescription
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86101J Cord Sub-assy, Antenna, NO.2
86309A Pole Sub-assy, Motor Antenna
86309B Pole Sub-assy, Pull Top Antenna
86309D Pole Sub-assy, Pull Top Antenna, NO.2
86337 Rod & Pipe, Sealed W/Cable
86392 Ornament, Antenna
86396 Nut, Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
