Toyota Corona
1973-08 → 1978-08 · chassis RT10#,11# · catalogue 261430 · United States
Discontinued model
Data version 1985-04

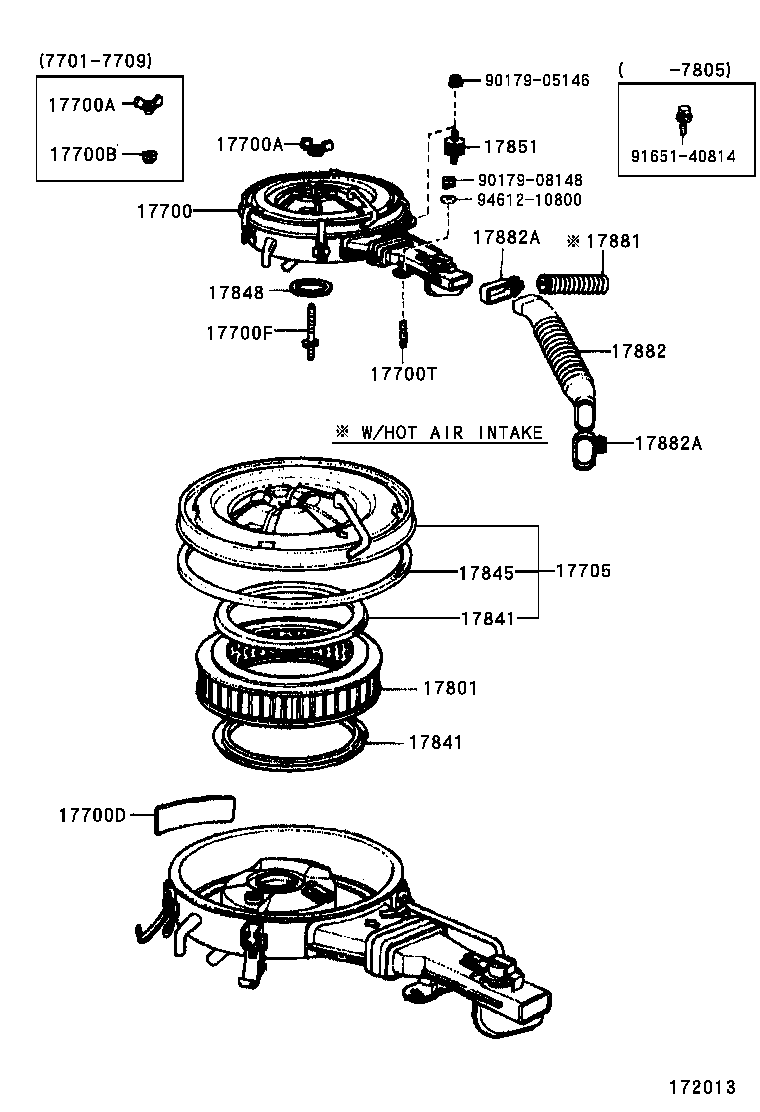

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17700 — Cleaner Assy, Air | ||||
| 17700-34064 |
Cleaner Assy, Air
1973-08 → 1974-08
ended
|
18RC RT118 4F;18RC RT104 +2 | — | |
| 17700-34233 note |
Cleaner Assy, Air
1973-08 → 1974-08
ended
|
18RC RT118 4F;18RC RT104 +2 | — | |
| 17700-34262 note |
Cleaner Assy, Air
1973-08 → 1974-08
ended
|
18RC RT118 4F;18RC RT104 +2 | — | |
| 17700-38010 note |
Cleaner Assy, Air
1974-08 → 1975-09
ended
|
20R RT105 3FC 4D | — | |
| 17700-38020 note |
Cleaner Assy, Air
1974-08 → 1975-09
ended
|
20R RT105 3FC 4D | — | |
| 17700-38030 note |
Cleaner Assy, Air
1975-09 → 1976-08
ended
|
20R RT119 3HC;20R RT105 +2 | — | |
| 17700-38032 note |
Cleaner Assy, Air
1976-08 → 1977-08
ended
|
20R RT119 3HC | — | |
| 17700-38040 note |
Cleaner Assy, Air
1975-09 → 1976-08
ended
|
20R RT119 3HC;20R RT105 +2 | — | |
| 17700-38042 note |
Cleaner Assy, Air
1976-08 → 1977-08
ended
|
20R RT119 3HC | — | |
| 17700-38050 note |
Cleaner Assy, Air
1977-08 → 1978-08
ended
|
20R RT119 3HC | — | |
| 17700-38060 note |
Cleaner Assy, Air
1977-08 → 1978-08
ended
|
20R RT119 3HC | — | |
| 17700A — Nut, Wing(FOR AIR CLEANER) | ||||
| 90175-06003 |
Nut, Wing(FOR AIR CLEANER)
1977-09 → 1978-08
ended
|
20R RT119 3HC | — | |
| 90175-06026 |
Nut, Wing(FOR AIR CLEANER)
1974-08 → 1977-09
ended
|
20R RT119 3HC;20R RT105 +2 | — | |
| 94271-00600 |
Nut, Wing(FOR AIR CLEANER)
1973-08 → 1974-08
ended
|
18RC RT118 4F;18RC RT104 +2 | — | |
| 17700B — Washer, Seal(FOR AIR CLEANER) | ||||
| 90210-06023 |
Washer, Seal(FOR AIR CLEANER)
1973-08 → 1974-08
ended
|
18RC RT118 4F;18RC RT104 +2 | — | |
| 90210-09026 |
Washer, Seal(FOR AIR CLEANER)
1974-08 → 1978-08
ended
|
20R RT119 3HC;20R RT105 +2 | — | |
| 17700D — Plate, Engine Caution | ||||
| 11293-38010 |
Plate, Engine Caution
1974-08 → 1976-11
ended
|
20R RT119 3HC;20R RT105 +2 | — | |
| 11293-38011 |
Plate, Engine Caution
1976-11 → 1977-08
ended
|
20R RT119 3HC | — | |
| 11293-38020 |
Plate, Engine Caution
1977-08 → 1978-08
ended
|
20R RT119 3HC | — | |
| 17700F — Bolt, Stud(FOR AIR CLEANER SETTING) | ||||
| 90116-06143 note |
Bolt, Stud(FOR AIR CLEANER SETTING)
1973-08 → 1974-08
ended
|
18RC RT118 4F;18RC RT104 +2 | — | |
| 90116-06280 note |
Bolt, Stud(FOR AIR CLEANER SETTING)
1974-08 → 1978-08
ended
|
20R RT119 3HC;20R RT105 +2 | — | |
| 17700T — Bolt, Stud(FOR AIR CLEANER) | ||||
| 90116-08033 |
Bolt, Stud(FOR AIR CLEANER)
1978-05 → 1978-08
ended
|
20R RT119 3HC | — | |
| 17705 — Cap Sub-assy, Air Cleaner | ||||
| 17705-34100 |
Cap Sub-assy, Air Cleaner
1973-08 → 1974-08
ended
|
18RC RT118 4F;18RC RT104 +2 | — | |
| 17705-38010 |
Cap Sub-assy, Air Cleaner
1974-08 → 1976-08
ended
|
20R RT119 3HC;20R RT105 +2 | — | |
| 17705-38012 |
Cap Sub-assy, Air Cleaner
1976-08 → 1977-08
ended
|
20R RT119 3HC | — | |
| 17705-38020 |
Cap Sub-assy, Air Cleaner
1977-08 → 1978-08
ended
|
20R RT119 3HC | — | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-33030 |
Element Sub-assy, Air Cleaner Filter
1973-08 → 1974-08
ended
|
18RC RT118 4F;18RC RT104 +2 | — | |
| 17801-41050 |
Element Sub-assy, Air Cleaner Filter
1974-08 → 1977-08
ended
|
20R RT119 3HC;20R RT105 +2 | — | |
| 17801-41090 |
Element Sub-assy, Air Cleaner Filter
1977-08 → 1978-08
ended
|
20R RT119 3HC | — | |
| 17841 — Gasket, Filter Element | ||||
| 17841-33011 |
Gasket, Filter Element
1973-08 → 1974-08
ended
|
18RC RT118 4F;18RC RT104 +2 | — | |
| 17841-41040 |
Gasket, Filter Element
1974-08 → 1977-08
ended
|
20R RT119 3HC;20R RT105 +2 | — | |
| 17841-41050 |
Gasket, Filter Element
1977-08 → 1978-08
ended
|
20R RT119 3HC | — | |
| 17845 — Gasket, Air Cleaner Cap | ||||
| 17845-33010 |
Gasket, Air Cleaner Cap
1973-08 → 1974-08
ended
|
18RC RT118 4F;18RC RT104 +2 | — | |
| 17845-38010 |
Gasket, Air Cleaner Cap
1974-08 → 1976-08
ended
|
20R RT119 3HC;20R RT105 +2 | — | |
| 17845-38011 |
Gasket, Air Cleaner Cap
1976-08 → 1978-08
ended
|
20R RT119 3HC | — | |
| 17848 — Gasket, Air Cleaner TO Carburetor | ||||
| 90430-72114 |
Gasket, Air Cleaner TO Carburetor
1973-08 → 1978-08
ended
|
18RC RT118 4F;20R RT119 +7 | — | |
| 17851 — Bracket, Air Cleaner Support | ||||
| 17851-38011 |
Bracket, Air Cleaner Support
1974-08 → 1976-08
ended
|
20R RT119 3HC;20R RT105 +2 | — | |
| 17853-38010 |
Bracket, Air Cleaner Support
1976-08 → 1978-08
ended
|
20R RT119 3HC | — | |
| 17881 — Hose, Air Cleaner, NO.1 | ||||
| 17881-26010 note |
Hose, Air Cleaner, NO.1
1974-08 → 1978-08
ended
|
20R RT119 3HC;20R RT105 +2 | — | |
| 17881-34070 |
Hose, Air Cleaner, NO.1
1973-08 → 1974-08
ended
|
18RC RT118 4F;18RC RT104 +2 | — | |
| 17882 — Hose, Air Cleaner, NO.2 | ||||
| 17882-20030 |
Hose, Air Cleaner, NO.2
1977-01 → 1978-08
ended
|
20R RT119 3HC | — | |
| 17882-38012 |
Hose, Air Cleaner, NO.2
1975-09 → 1976-08
ended
|
20R RT119 3HC;20R RT105 +2 | — | |
| 17882-38013 |
Hose, Air Cleaner, NO.2
1976-08 → 1977-01
ended
|
20R RT119 3HC | — | |
| 17882A — Clamp(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01002 |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1975-09 → 1976-08
ended
|
20R RT119 3HC;20R RT105 +2 | — | |
| 90460-01003 |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1976-08 → 1977-01
ended
|
20R RT119 3HC | — | |
| 90460-01004 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1977-01 → 1978-08
ended
|
20R RT119 3HC | — | |
| 90460-01083 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1977-01 → 1978-08
ended
|
20R RT119 3HC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
