Toyota Corona

1973-08 → 1978-08 · chassis RT10#,11# · catalogue 261430 · United States

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

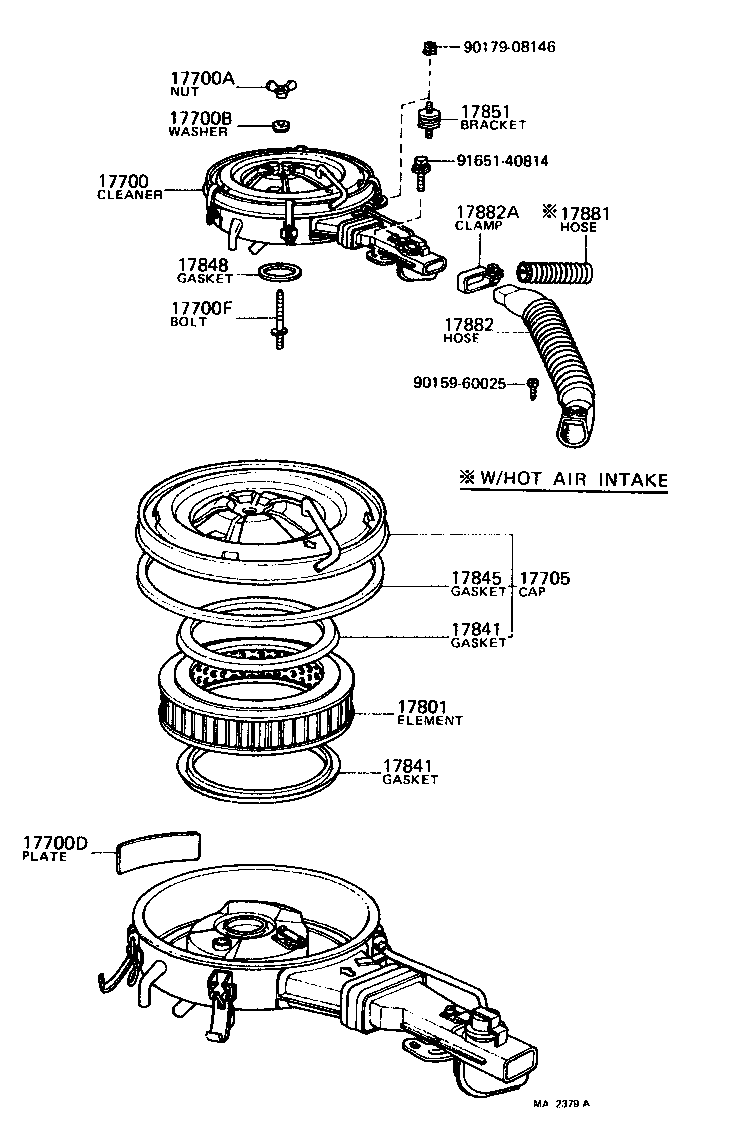

Exploded illustration MA2379A 9017908146 — not listed in this catalogue 17700A — NUT, WING(FOR AIR CLEANER) (3 parts) 17851 — BRACKET, AIR CLEANER SUPPORT (2 parts) 17700B — WASHER, SEAL(FOR AIR CLEANER) (2 parts) 9165140814 — not listed in this catalogue 17700 — CLEANER ASSY, AIR (11 parts) 17881 — HOSE, AIR CLEANER, NO.1 (2 parts) 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (4 parts) 17848 — GASKET, AIR CLEANER TO CARBURETOR (1 parts) 17700F — BOLT, STUD(FOR AIR CLEANER SETTING) (2 parts) 17882 — HOSE, AIR CLEANER, NO.2 (3 parts) 9015960025 — not listed in this catalogue 17845 — GASKET, AIR CLEANER CAP (3 parts) 17705 — CAP SUB-ASSY, AIR CLEANER (4 parts) 17841 — GASKET, FILTER ELEMENT (3 parts) 17801 — ELEMENT SUB-ASSY, AIR CLEANER FILTER (3 parts) 17841 — GASKET, FILTER ELEMENT (3 parts) 17700D — PLATE, ENGINE CAUTION (3 parts)
MA2379A · 15 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
46 parts on this figure
Part number Description Fitment Price
17700 — Cleaner Assy, Air
17700-34064 Cleaner Assy, Air
1973-08 → 1974-08 ended
18RC RT118 4F;18RC RT104 +2 —
17700-34233 note Cleaner Assy, Air
1973-08 → 1974-08 ended
18RC RT118 4F;18RC RT104 +2 —
17700-34262 note Cleaner Assy, Air
1973-08 → 1974-08 ended
18RC RT118 4F;18RC RT104 +2 —
17700-38010 note Cleaner Assy, Air
1974-08 → 1975-09 ended
20R RT105 3FC 4D —
17700-38020 note Cleaner Assy, Air
1974-08 → 1975-09 ended
20R RT105 3FC 4D —
17700-38030 note Cleaner Assy, Air
1975-09 → 1976-08 ended
20R RT119 3HC;20R RT105 +2 —
17700-38032 note Cleaner Assy, Air
1976-08 → 1977-08 ended
20R RT119 3HC —
17700-38040 note Cleaner Assy, Air
1975-09 → 1976-08 ended
20R RT119 3HC;20R RT105 +2 —
17700-38042 note Cleaner Assy, Air
1976-08 → 1977-08 ended
20R RT119 3HC —
17700-38050 note Cleaner Assy, Air
1977-08 → 1978-08 ended
20R RT119 3HC —
17700-38060 note Cleaner Assy, Air
1977-08 → 1978-08 ended
20R RT119 3HC —
17700A — Nut, Wing(FOR AIR CLEANER)
90175-06003 Nut, Wing(FOR AIR CLEANER)
1977-09 → 1978-08 ended
20R RT119 3HC —
90175-06026 Nut, Wing(FOR AIR CLEANER)
1974-08 → 1977-09 ended
20R RT119 3HC;20R RT105 +2 —
94271-00600 Nut, Wing(FOR AIR CLEANER)
1973-08 → 1974-08 ended
18RC RT118 4F;18RC RT104 +2 —
17700B — Washer, Seal(FOR AIR CLEANER)
90210-06023 Washer, Seal(FOR AIR CLEANER)
1973-08 → 1974-08 ended
18RC RT118 4F;18RC RT104 +2 —
90210-09026 Washer, Seal(FOR AIR CLEANER)
1974-08 → 1978-08 ended
20R RT119 3HC;20R RT105 +2 —
17700D — Plate, Engine Caution
11293-38010 Plate, Engine Caution
1974-08 → 1976-11 ended
20R RT119 3HC;20R RT105 +2 —
11293-38011 Plate, Engine Caution
1976-11 → 1977-08 ended
20R RT119 3HC —
11293-38020 Plate, Engine Caution
1977-08 → 1978-08 ended
20R RT119 3HC —
17700F — Bolt, Stud(FOR AIR CLEANER SETTING)
90116-06143 note Bolt, Stud(FOR AIR CLEANER SETTING)
1973-08 → 1974-08 ended
18RC RT118 4F;18RC RT104 +2 —
90116-06280 note Bolt, Stud(FOR AIR CLEANER SETTING)
1974-08 → 1978-08 ended
20R RT119 3HC;20R RT105 +2 —
17705 — Cap Sub-assy, Air Cleaner
17705-34100 Cap Sub-assy, Air Cleaner
1973-08 → 1974-08 ended
18RC RT118 4F;18RC RT104 +2 —
17705-38010 Cap Sub-assy, Air Cleaner
1974-08 → 1976-08 ended
20R RT119 3HC;20R RT105 +2 —
17705-38012 Cap Sub-assy, Air Cleaner
1976-08 → 1977-08 ended
20R RT119 3HC —
17705-38020 Cap Sub-assy, Air Cleaner
1977-08 → 1978-08 ended
20R RT119 3HC —
17801 — Element Sub-assy, Air Cleaner Filter
17801-33030 Element Sub-assy, Air Cleaner Filter
1973-08 → 1974-08 ended
18RC RT118 4F;18RC RT104 +2 —
17801-41050 Element Sub-assy, Air Cleaner Filter
1974-08 → 1977-08 ended
20R RT119 3HC;20R RT105 +2 —
17801-41090 Element Sub-assy, Air Cleaner Filter
1977-08 → 1978-08 ended
20R RT119 3HC —
17841 — Gasket, Filter Element
17841-33011 Gasket, Filter Element
1973-08 → 1974-08 ended
18RC RT118 4F;18RC RT104 +2 —
17841-41040 Gasket, Filter Element
1974-08 → 1977-08 ended
20R RT119 3HC;20R RT105 +2 —
17841-41050 Gasket, Filter Element
1977-08 → 1978-08 ended
20R RT119 3HC —
17845 — Gasket, Air Cleaner Cap
17845-33010 Gasket, Air Cleaner Cap
1973-08 → 1974-08 ended
18RC RT118 4F;18RC RT104 +2 —
17845-38010 Gasket, Air Cleaner Cap
1974-08 → 1976-08 ended
20R RT119 3HC;20R RT105 +2 —
17845-38011 Gasket, Air Cleaner Cap
1976-08 → 1978-08 ended
20R RT119 3HC —
17848 — Gasket, Air Cleaner TO Carburetor
90430-72114 Gasket, Air Cleaner TO Carburetor
1973-08 → 1978-08 ended
18RC RT118 4F;20R RT119 +7 —
17851 — Bracket, Air Cleaner Support
17851-38011 Bracket, Air Cleaner Support
1974-08 → 1976-08 ended
20R RT119 3HC;20R RT105 +2 —
17853-38010 Bracket, Air Cleaner Support
1976-08 → 1978-08 ended
20R RT119 3HC —
17881 — Hose, Air Cleaner, NO.1
17881-26010 note Hose, Air Cleaner, NO.1
1974-08 → 1978-08 ended
20R RT119 3HC;20R RT105 +2 —
17881-34070 Hose, Air Cleaner, NO.1
1973-08 → 1974-08 ended
18RC RT118 4F;18RC RT104 +2 —
17882 — Hose, Air Cleaner, NO.2
17882-20030 Hose, Air Cleaner, NO.2
1977-01 → 1978-08 ended
20R RT119 3HC —
17882-38012 Hose, Air Cleaner, NO.2
1975-09 → 1976-08 ended
20R RT119 3HC;20R RT105 +2 —
17882-38013 Hose, Air Cleaner, NO.2
1976-08 → 1977-01 ended
20R RT119 3HC —
17882A — Clamp(FOR AIR CLEANER HOSE, NO.2)
90460-01002 Clamp(FOR AIR CLEANER HOSE, NO.2)
1975-09 → 1976-08 ended
20R RT119 3HC;20R RT105 +2 —
90460-01003 Clamp(FOR AIR CLEANER HOSE, NO.2)
1976-08 → 1977-01 ended
20R RT119 3HC —
90460-01004 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1977-01 → 1978-08 ended
20R RT119 3HC —
90460-01083 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1977-01 → 1978-08 ended
20R RT119 3HC —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
