Toyota Corona
1973-08 → 1978-08 · chassis RT10#,11# · catalogue 261430 · United States
Discontinued model
Data version 1985-04

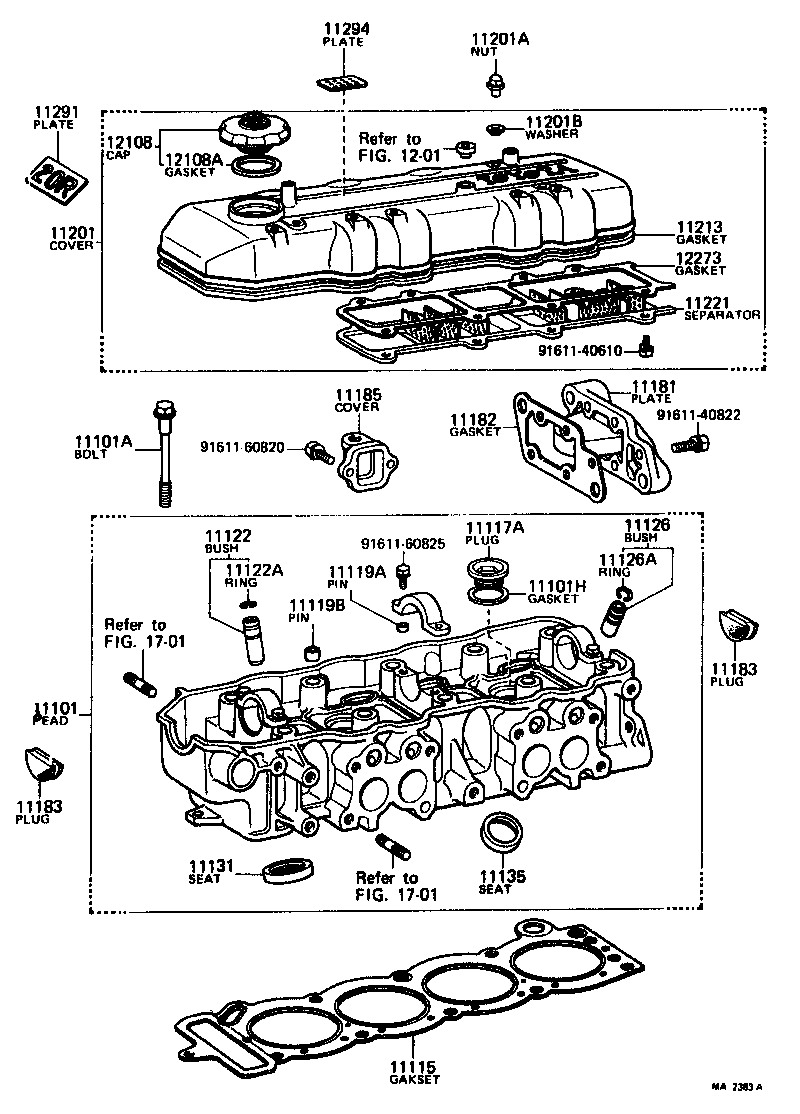

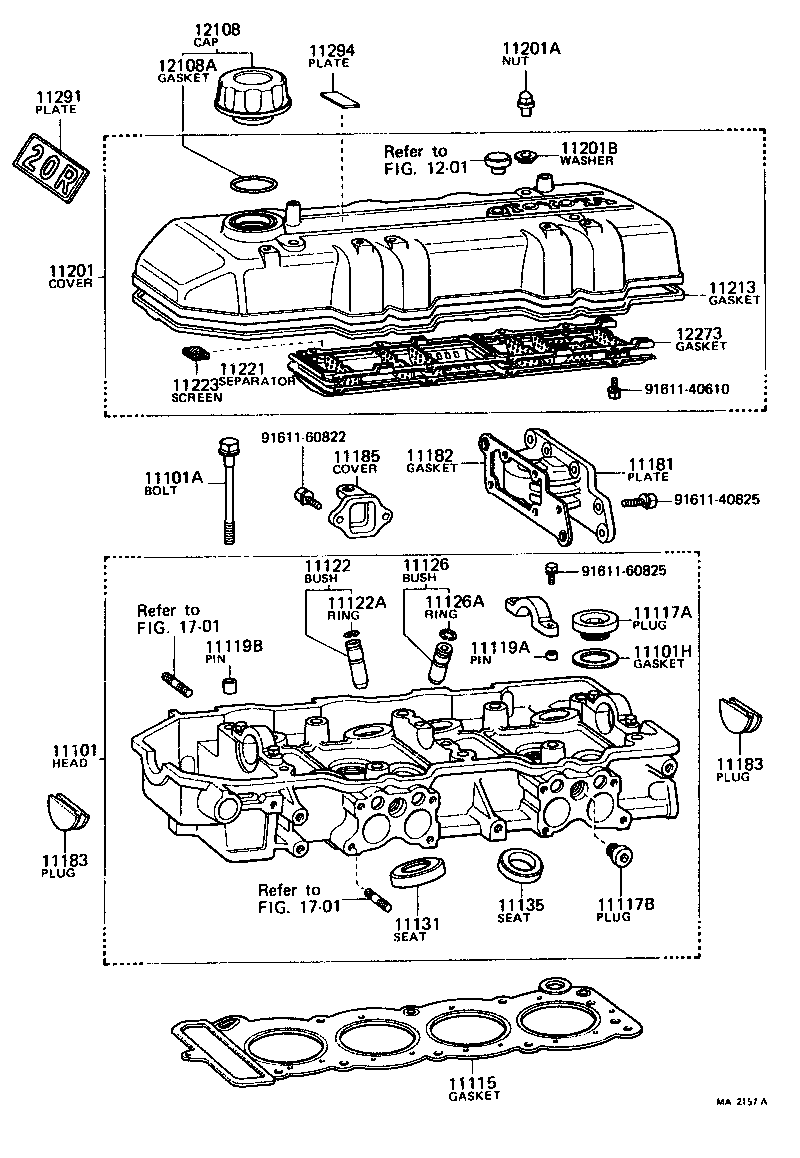

Cylinder Head
38 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11101 | Head Sub-assy, Cylinder |
| 11101A | Bolt(FOR CYLINDER HEAD SET) |
| 11101B | Washer, Plate(FOR CYLINDER HEAD SET) |
| 11101H | Gasket(FOR CYLINDER HEAD SCREW PLUG) |
| 11115 | Gasket, Cylinder Head |
| 11116A | Plug, Tight, NO.1 |
| 11116B | Plug, Tight, NO.2 |
| 11117A | Plug, W/Head Taper Screw, NO.1 |
| 11117B | Plug, W/Head Taper Screw, NO.2 |
| 11119A | Pin, Straight, NO.1 |
| 11119B | Pin, Straight, NO.2 |
| 11122 | Bush, Intake Valve Guide |
| 11122A | Ring, Shaft Snap (FOR VALVE GUIDE BUSH) |
| 11126 | Bush, Exhaust Valve Guide |
| 11126A | Ring, Shaft Snap(FOR VALVE GUIDE BUSH) |
| 11131 | Seat, Intake Valve |
| 11135 | Seat, Exhaust Valve |
| 11158 | Bolt, Stud(FOR HEAD TO CYLINDER HEAD COVER) |
| 11159 | Bolt, Stud(FOR HEAD TO CAMSHAFT BEARING CAP) |
| 11181 | Plate, Cylinder Head, Rear |
| 11182 | Gasket, Cylinder Head Rear Plate |
| 11183 | Plug, Semicircular |
| 11185 | Cover, Cylinder Head Side |
| 11201 | Cover Sub-assy, Cylinder Head |
| 11201A | Nut, Cap(FOR CYLINDER HEAD COVER) |
| 11201B | Washer, Seal(FOR CYLINDER HEAD COVER) |
| 11201F | Union(FOR POSITIVE CRANKCASE VENTILATION) |
| 11201G | Gasket(FOR POSITIVE CRANKCASE VENTILATION) |
| 11213 | Gasket, Cylinder Head Cover |
| 11221 | Separator, Cylinder Head Cover, NO.1 |
| 11222 | Separator, Cylinder Head Cover, NO.2 |
| 11223 | Screen,Cylinder Head Cover |
| 11291 | Plate, Engine Name |
| 11293 | Plate, Engine Caution & Engine Name |
| 11294 | Plate, Engine Caution, NO.2 |
| 12108 | Cap Sub-assy, Oil Filler |
| 12108A | Gasket(FOR OIL FILLER CAP) |
| 12273 | Gasket, Oil Separator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
