Toyota Corona

1973-08 → 1978-08 · chassis RT10#,11# · catalogue 261430 · United States

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

33 part groups · 2 illustrations

Illustrations

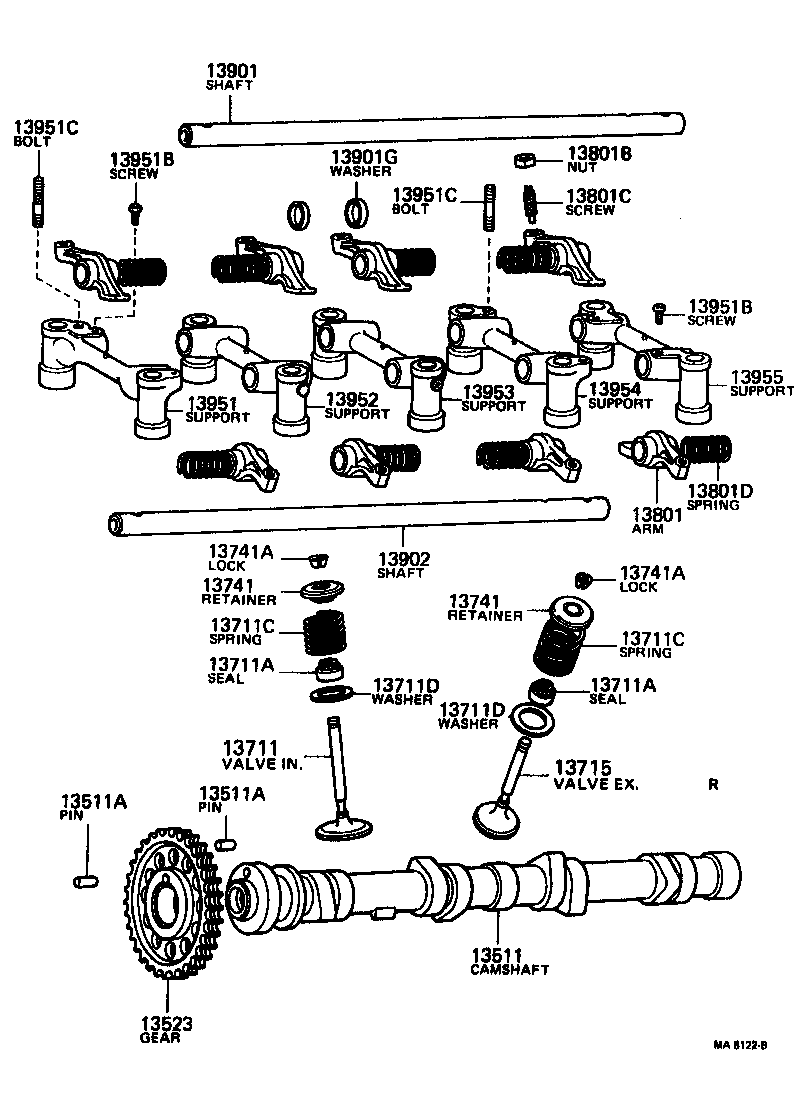

Figure MA8011Z MA8011Z 1973-08 → 1974-08 Figure MA8122B MA8122B 1974-08 → 1978-08

Part groups

PNCDescription
11802 Bearing Set, Camshaft
13511 Camshaft
13511A Pin, Straight(FOR CAMSHAFT KNOCK)
13523 Gear OR Sprocket, Camshaft Timing
13711 Valve, Intake
13711A Seal OR Ring, O(FOR VALVE STEM OIL)
13711B Spring, Compression(FOR INNER)
13711C Spring, Compression(FOR OUTER)
13711D Washer, Plate(FOR VALVE SPRING SEAT)
13715 Valve, Exhaust
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13801 Arm Sub-assy, Valve Rocker, NO.1
13801A Bush, Bimetal Formed(FOR ROCKER ARM)
13801B Nut, Hexagon(FOR VALVE ADJUSTING)
13801C Screw, Valve Adjusting
13801D Spring, Compression(FOR ROCKER ARM)
13802 Arm Sub-assy, Valve Rocker, NO.2
13803 Arm Sub-assy, Valve Rocker, NO.3
13901 Shaft Sub-assy, Valve Rocker, NO.1
13901G Washer, Rocker Shaft
13902 Shaft Sub-assy, Valve Rocker, NO.2
13951 Support, Valve Rocker, NO.1
13951A Bolt(FOR ROCKER SUPPORT SET)
13951B Screw OR Bolt(FOR VALVE ROCKER SHAFT LOCK)
13951C Bolt, Stud(FOR ROCKER SUPPORT)
13952 Support, Valve Rocker, NO.2
13953 Support, Valve Rocker, NO.3
13954 Support, Valve Rocker, NO.4
13955 Support, Valve Rocker, NO.5
15707 Pipe Sub-assy, Oil
15707A Bolt, Union(FOR OIL PIPE)
15707B Union(FOR OIL PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
