Toyota Corona

1973-08 → 1978-08 · chassis RT10#,11# · catalogue 261430 · United States

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

28 part groups · 3 illustrations

Illustrations

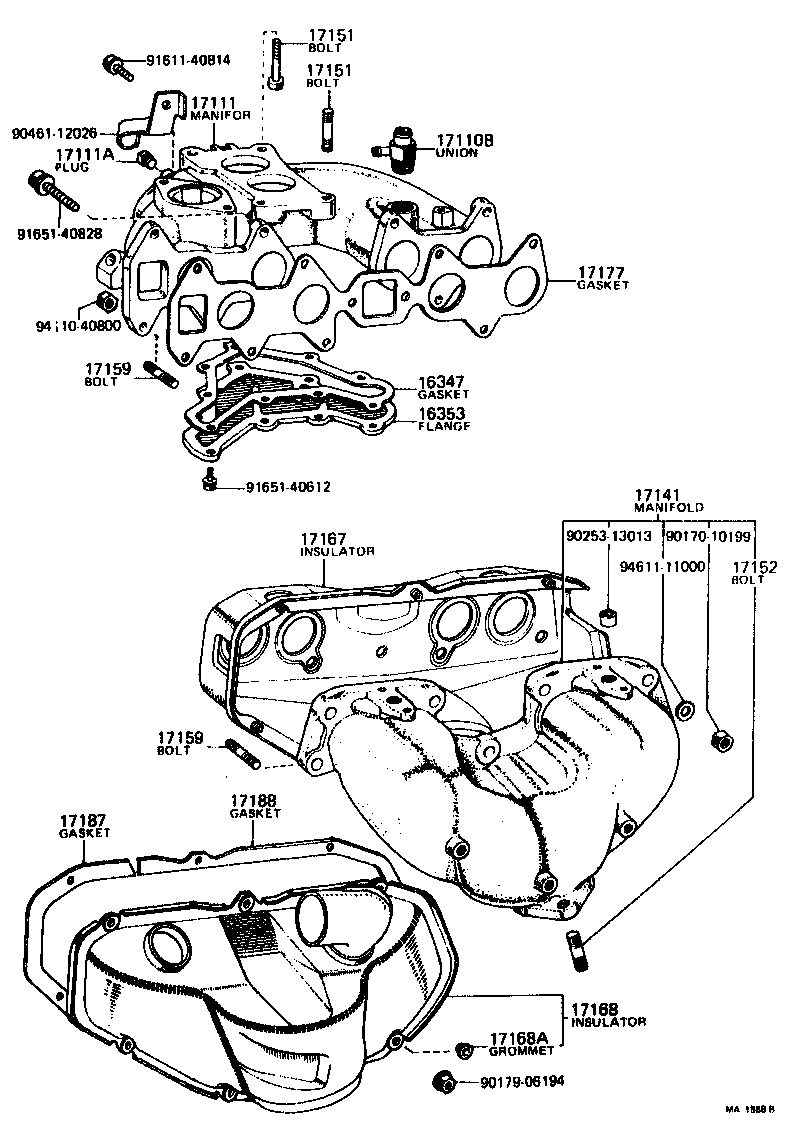

Figure MA8142C MA8142C 1973-08 → 1974-08 Figure MA1888B MA1888B 1974-08 → 1976-08 Figure MA2386C MA2386C 1976-08 → 1978-08

Part groups

PNCDescription
16347 Gasket, Water By-pass
16353 Flange, Water By-pass
17110 Manifold Assy
17110B Union(FOR VENTILATION HOSE TO MANIFOLD)
17111 Manifold, Intake
17111A Plug, NO.1
17141 Manifold, Exhaust
17141A Union(FOR EXHAUST GAS RECIRCULATION OUTLET)
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17153 Sleeve, Ball(FOR AUTOMATIC CHOKE STOVE PIPE)
17153A Union(FOR AUTOMATIC CHOKE STOVE PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17168A Grommet(FOR EXHAUST MANIFOLD HEAT INSULATOR)
17169 Insulator, Exhaust Manifold Heat, NO.3
17171 Gasket, Intake TO Exhaust Manifold
17172 Gasket, Manifold TO Cylinder Head
17177 Gasket, Intake Manifold TO Head, NO.1
17187 Gasket, Heat Insulator, NO.1
17188 Gasket, Heat Insulator, NO.2
17205 Pipe, Automatic Choke Stove Inlet
17205A Hose(FOR AUTOMATIC CHOKE STOVE PIPE)
17205B Gasket(FOR AUTOMATIC CHOKE STOVE PIPE)
17205C Bolt, Union(FOR AUTOMATIC CHOKE STOVE PIPE)
17206 Pipe, Automatic Choke Stove Outlet
17251 Pipe,Automatic Choke Stove
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
