Toyota Corona

1973-08 → 1978-08 · chassis RT10#,11# · catalogue 261430 · United States

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

34 part groups · 13 illustrations

Illustrations

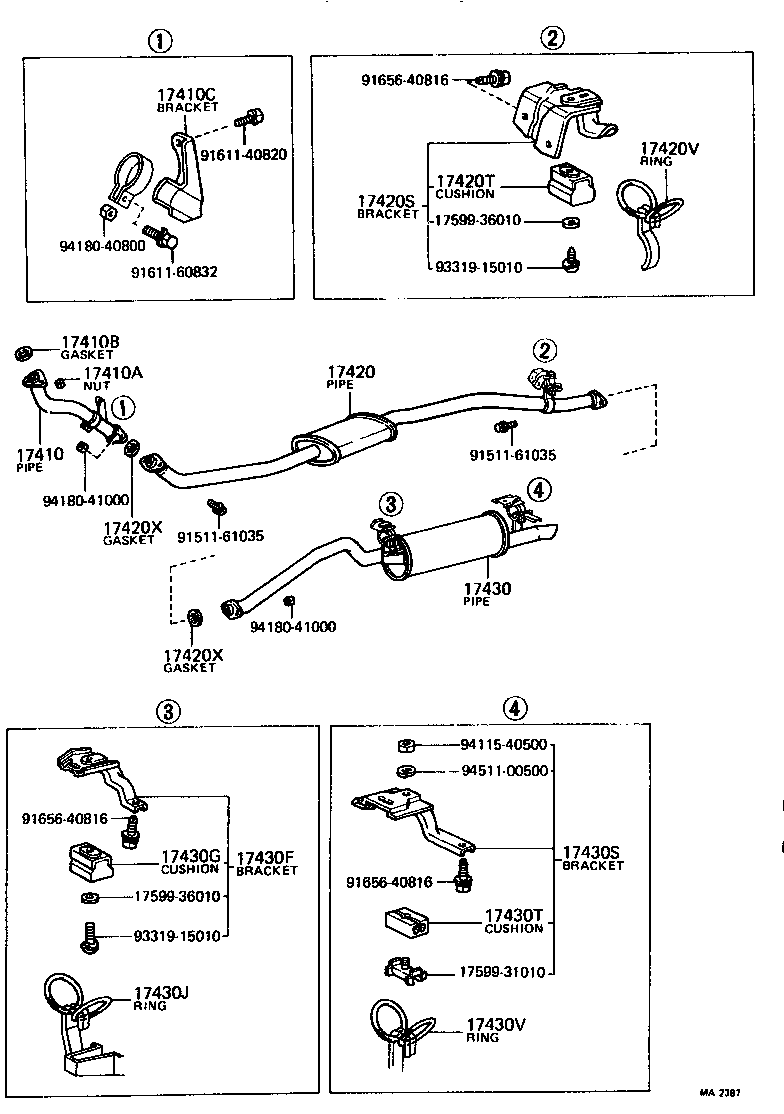

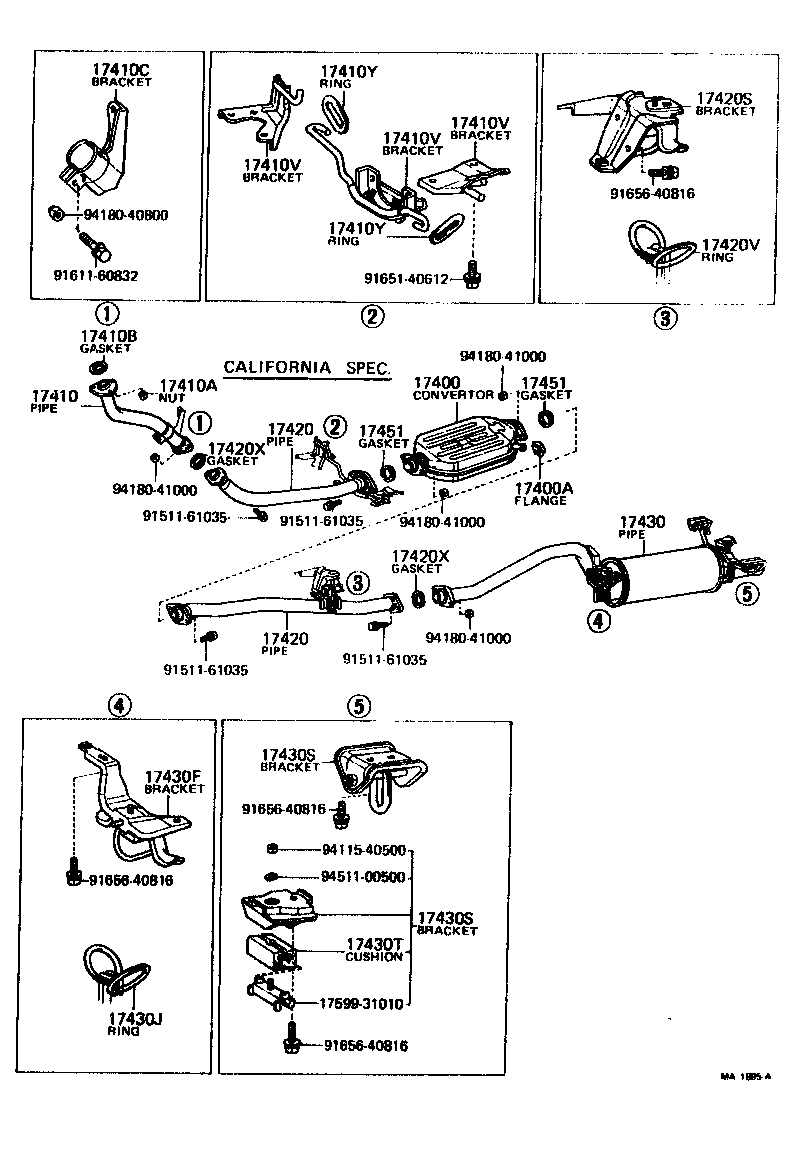

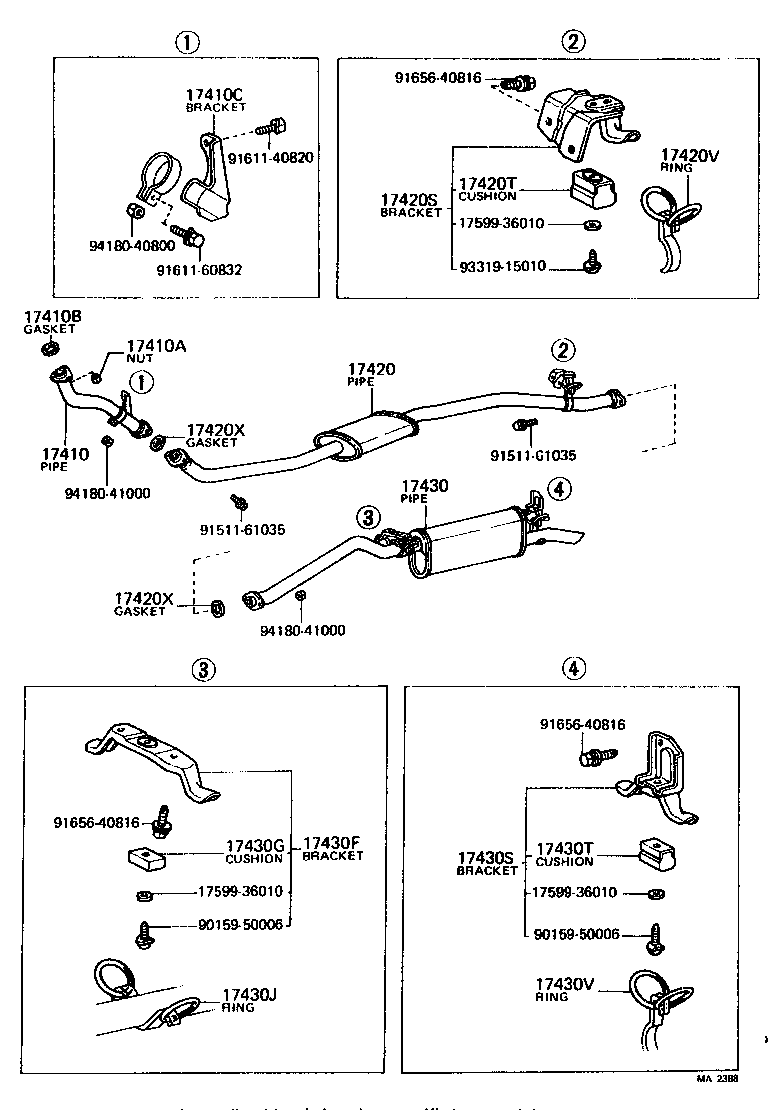

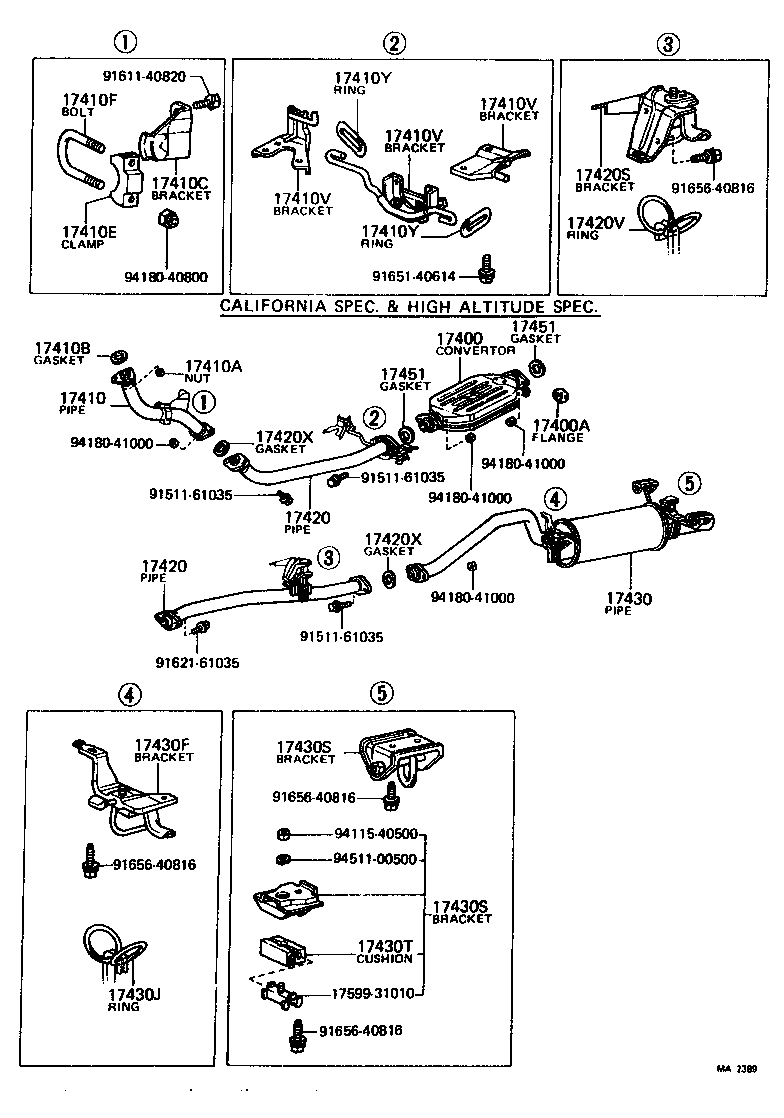

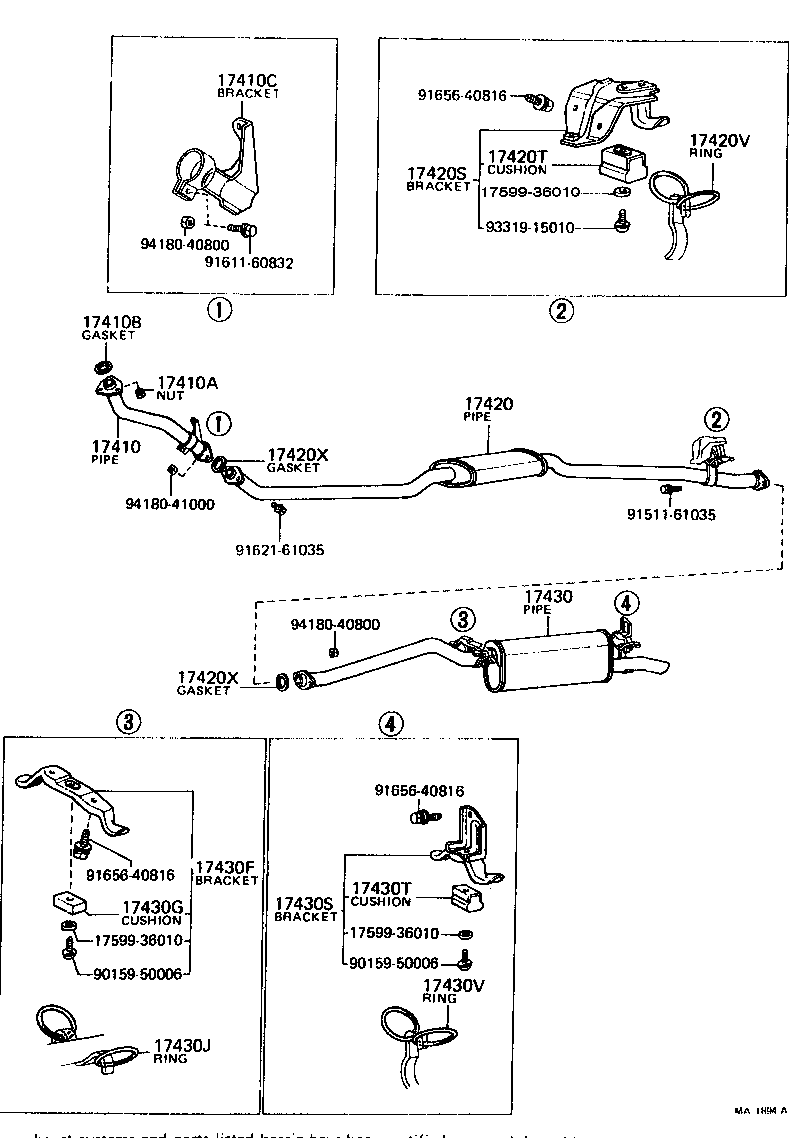

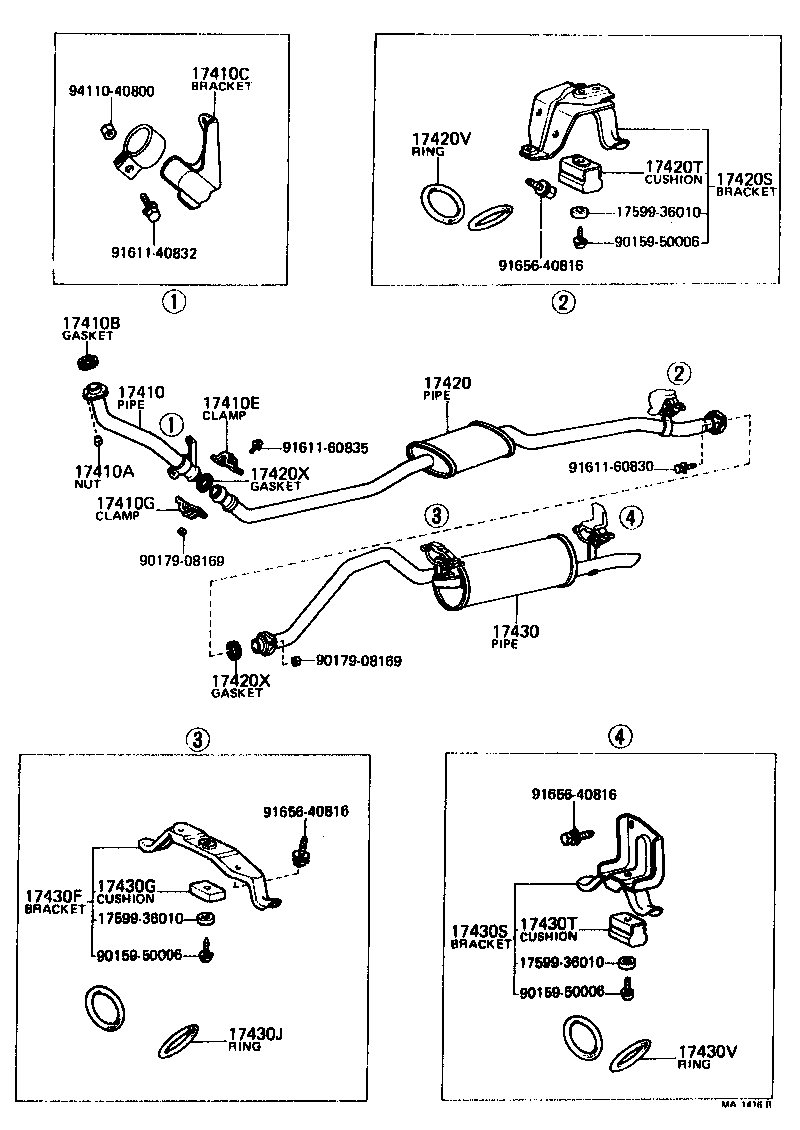

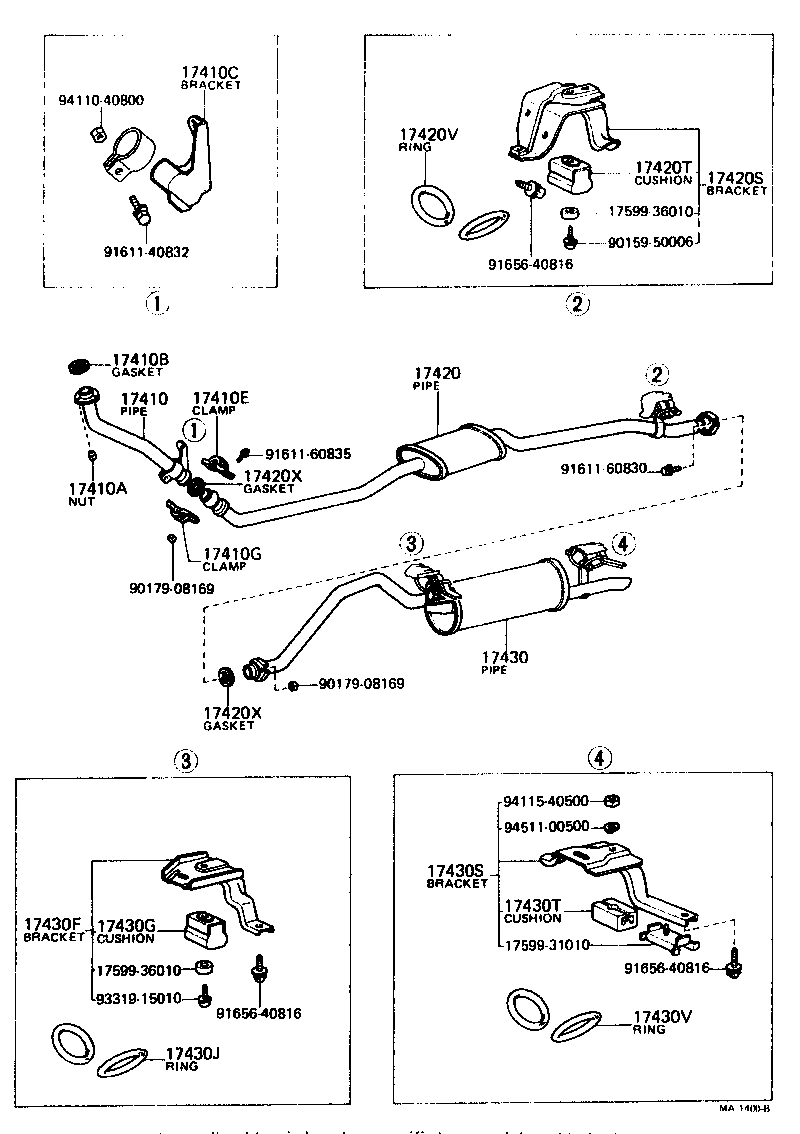

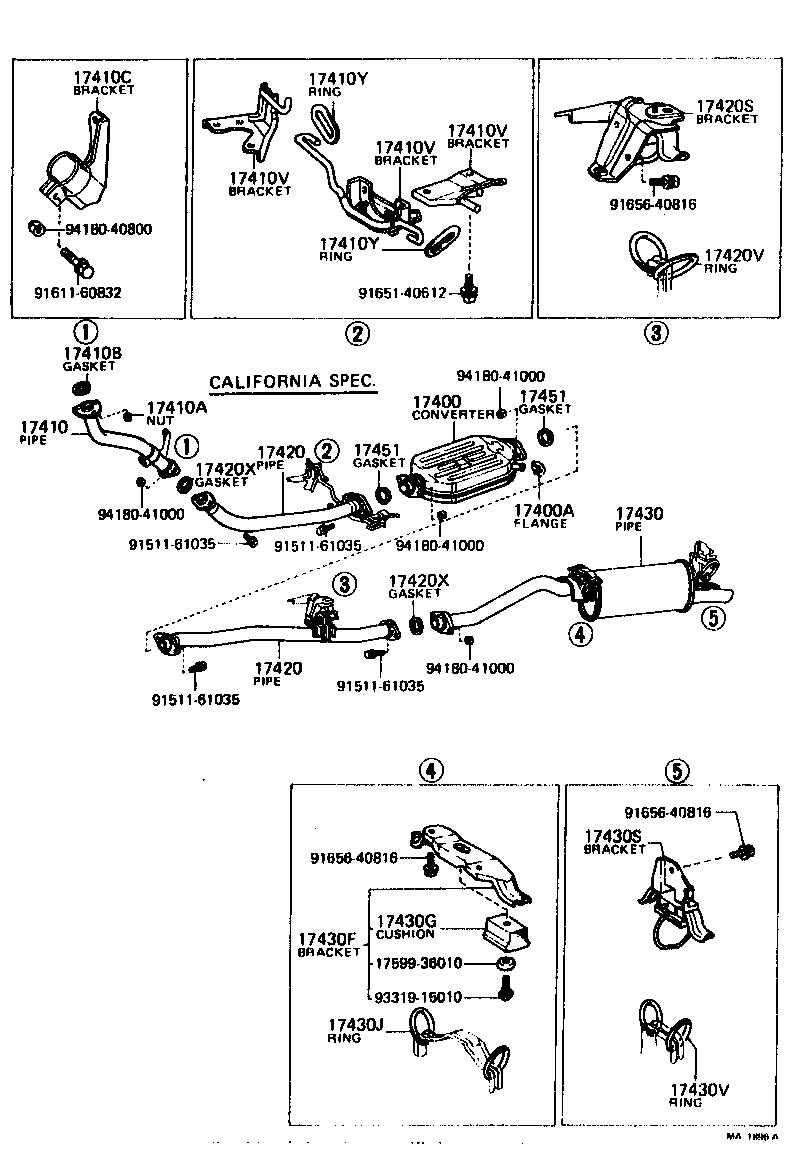

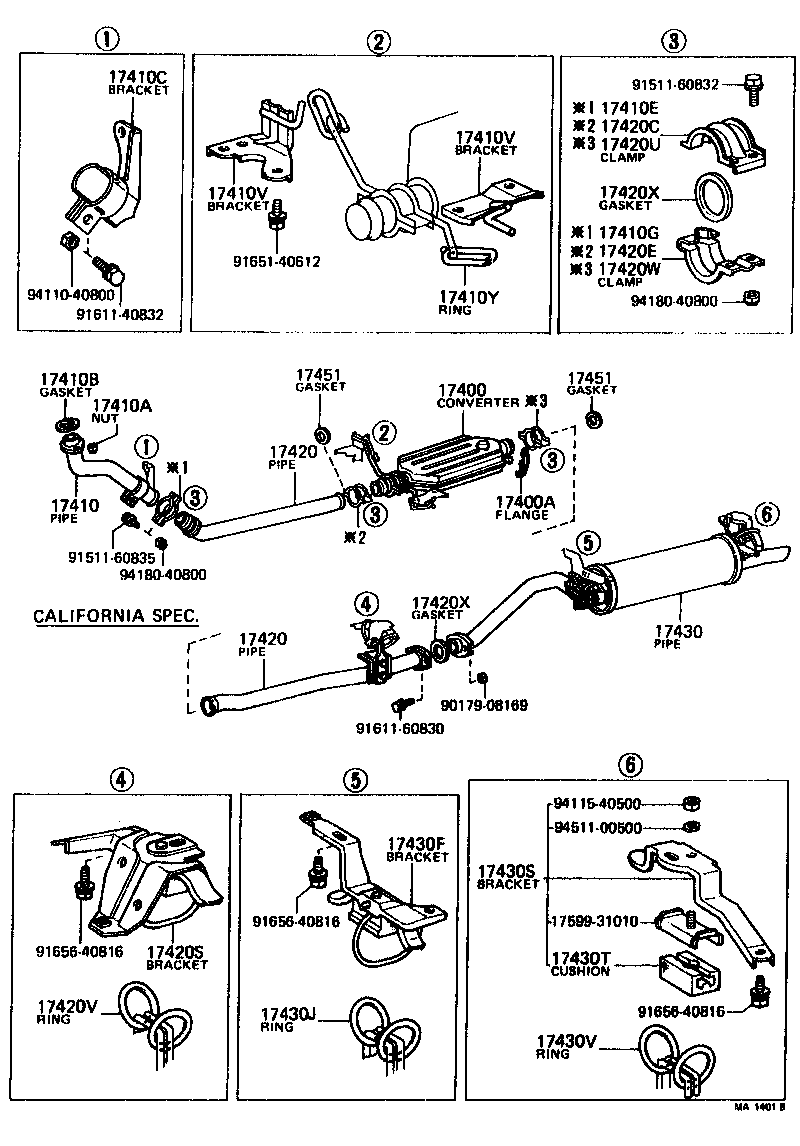

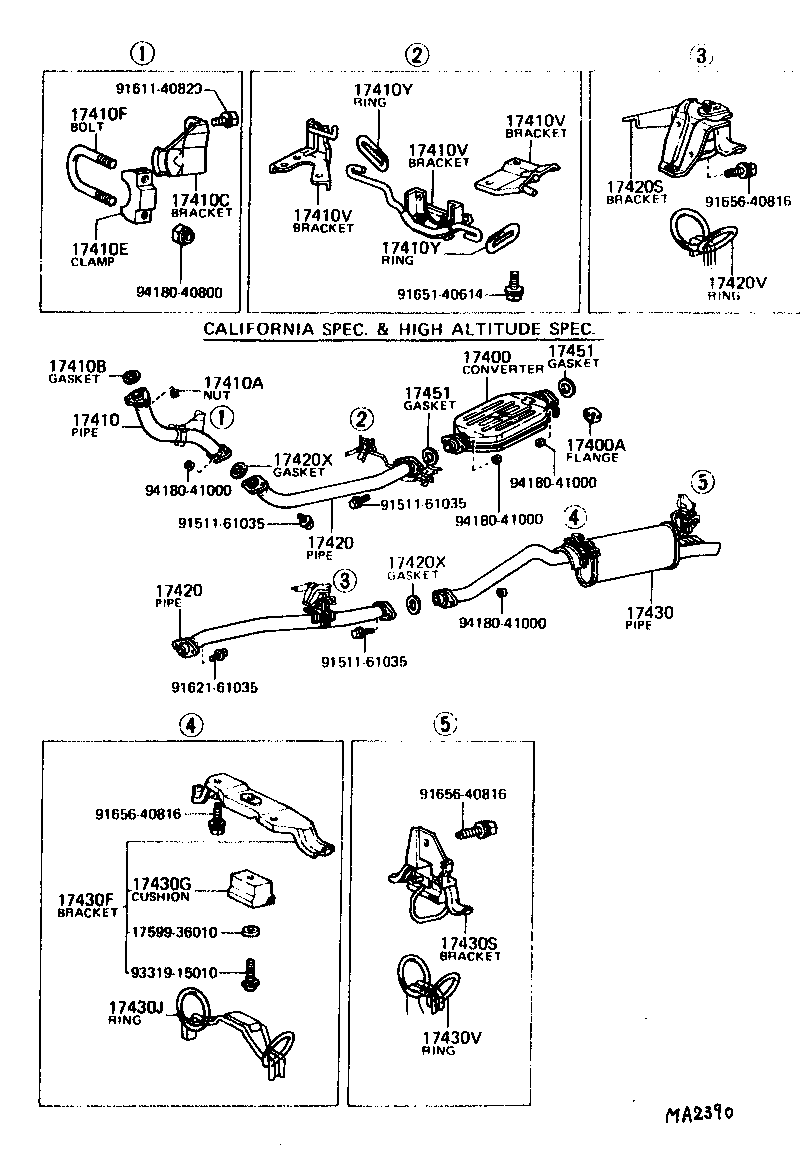

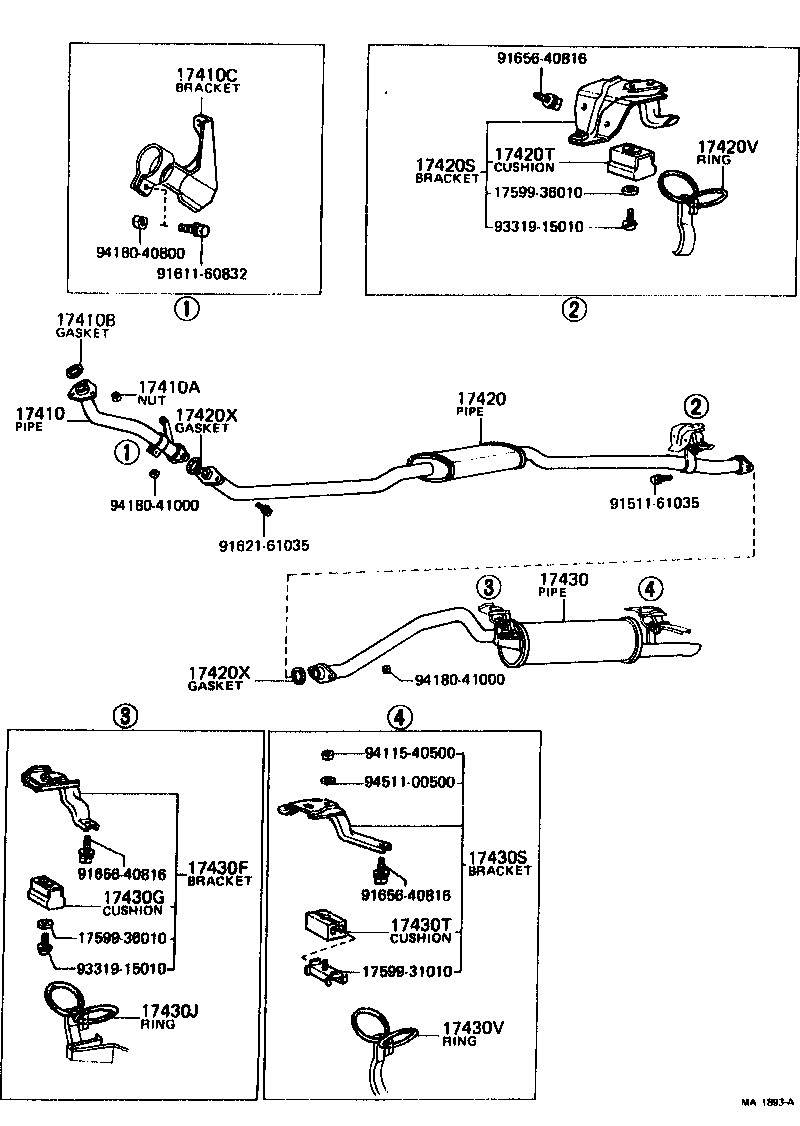

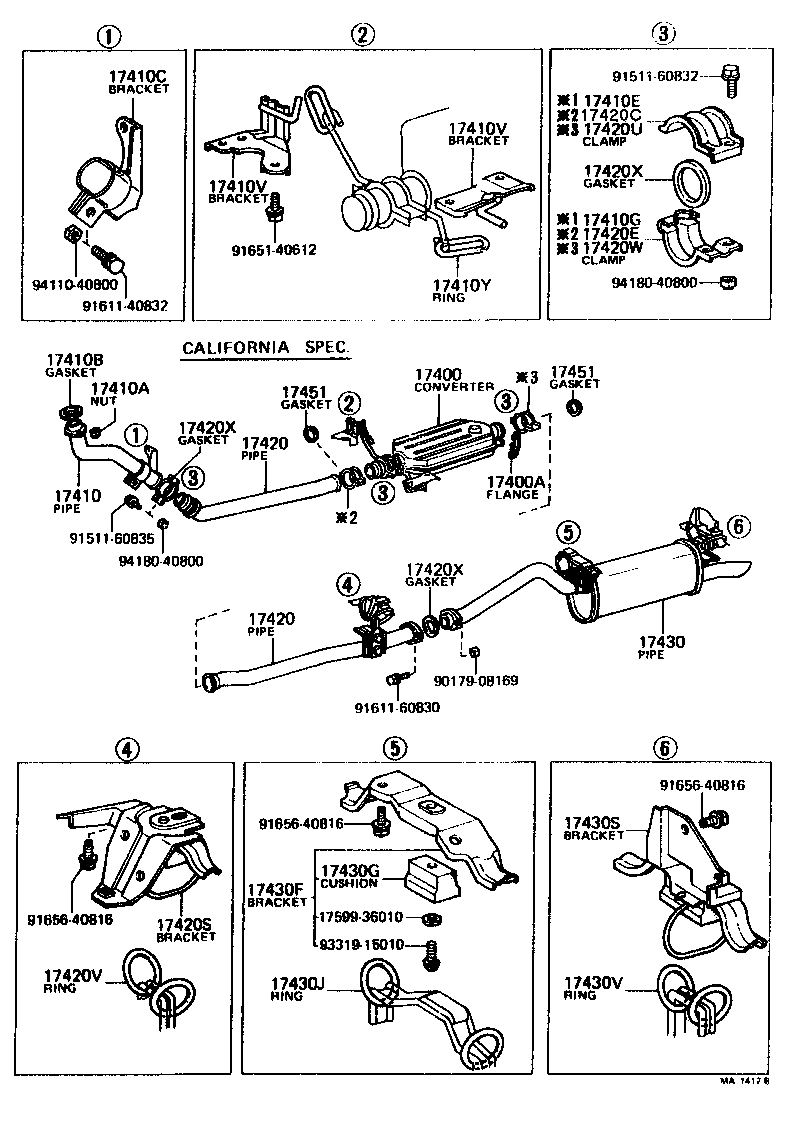

Figure MA8190A MA8190A 1973-08 → 1974-08 Figure MA1400B MA1400B 1974-08 → 1975-09 Figure MA1893A MA1893A 1975-09 → 1976-08 Figure MA2387 MA2387 1976-08 → 1978-08 Figure MA1416B MA1416B 1974-08 → 1975-09 Figure MA1894A MA1894A 1975-09 → 1976-08 Figure MA2388 MA2388 1976-08 → 1978-08 Figure MA1401B MA1401B 1974-08 → 1975-09 Figure MA1895A MA1895A 1975-09 → 1976-08 Figure MA2389 MA2389 1976-08 → 1978-08 Figure MA1417B MA1417B 1974-08 → 1975-09 Figure MA1896A MA1896A 1975-09 → 1976-08 Figure MA2390 MA2390 1976-08 → 1978-08

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17400A Flange, Thermosenser Inlet
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410C Bracket, Exhaust Pipe Front (FOR FRONT)
17410E Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
17410F Bolt OR Ring, Exhaust Pipe Front (FOR FRONT)
17410G Clamp NO.2, Exhaust Pipe Front (FOR FRONT)
17410V Bracket, Exhaust Pipe Front (FOR REAR)
17410Y Bolt OR Ring, Exhaust Pipe Front (FOR REAR)
17420 Pipe Assy, Exhaust, Center
17420A Bracket, Exhaust Pipe Center, Front
17420B Cushion, Exhaust Pipe Center, Front
17420C Clamp NO.1, Exhaust Pipe Center, Front
17420D Bolt OR Ring, Exhaust Pipe Center, Front
17420E Clamp NO.2, Exhaust Pipe Center, Front
17420S Bracket, Exhaust Pipe Center, Rear
17420T Cushion, Exhaust Pipe Center, Rear
17420U Clamp NO.1, Exhaust Pipe Center, Rear
17420V Bolt OR Ring, Exhaust Pipe Center, Rear
17420W Clamp NO.2, Exhaust Pipe Center, Rear
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430A Bracket, Exhaust Tailpipe(FOR FRONT)
17430B Cushion, Exhaust Tailpipe(FOR FRONT)
17430D Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
17430F Bracket, Exhaust Tailpipe(FOR CENTER)
17430G Cushion, Exhaust Tailpipe(FOR CENTER)
17430J Bolt OR Ring, Exhaust Tailpipe(FOR CENTER)
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17430T Cushion, Exhaust Tailpipe (FOR REAR)
17430V Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
17451 Gasket, Exhaust Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
