Factory parts data · Europe

Toyota Corona

1973-08 → 1978-08 · chassis RT10#,11# · catalogue 261430 · United States

Discontinued model Data version 1985-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Carburetor Assembly

6 part groups · 2 illustrations

Illustrations

Figure MF8003A

MF8003A 1973-08 → 1974-08

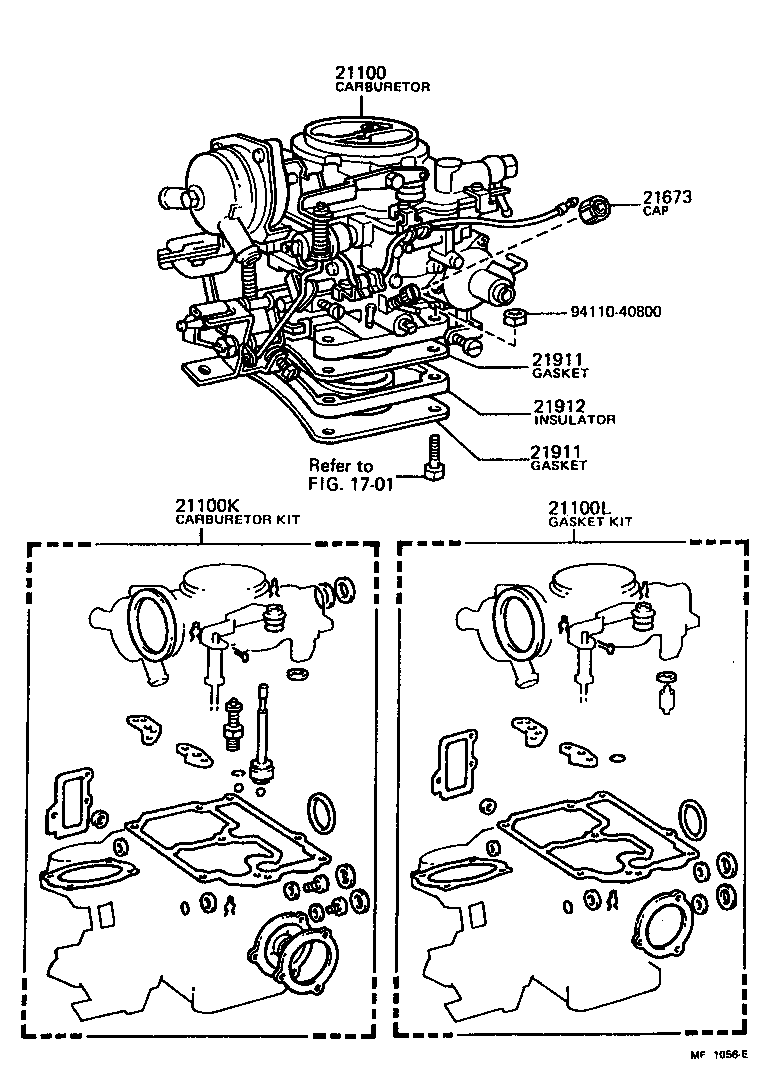

Figure MF1056E

MF1056E 1974-08 → 1978-08

Part groups

PNC	Description
21100	Carburetor Assy
21100K	Carburetor Kit
21100L	Gasket Kit, Carburetor
21673	Cap, Idle Limit
21911	Gasket, Carburetor
21912	Insulator, Carburetor Heat

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
