Toyota Corona
1973-08 → 1978-08 · chassis RT10#,11# · catalogue 261430 · United States
Discontinued model
Data version 1985-04
Carburetor
135 part groups · 14 illustrations

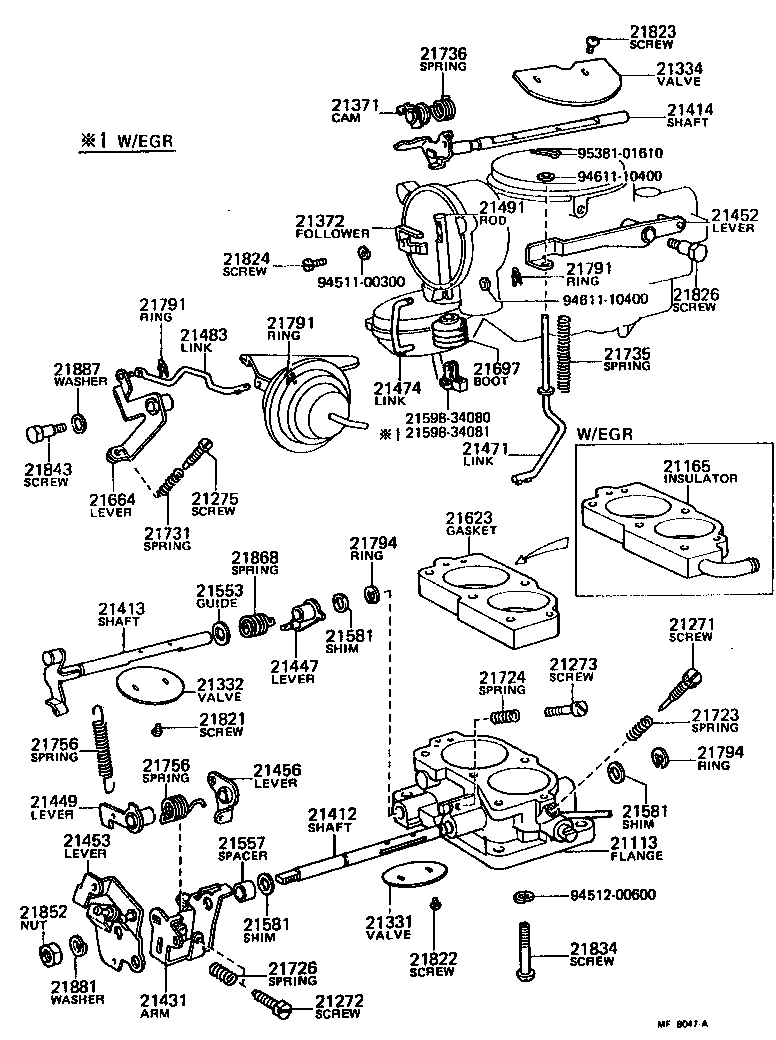

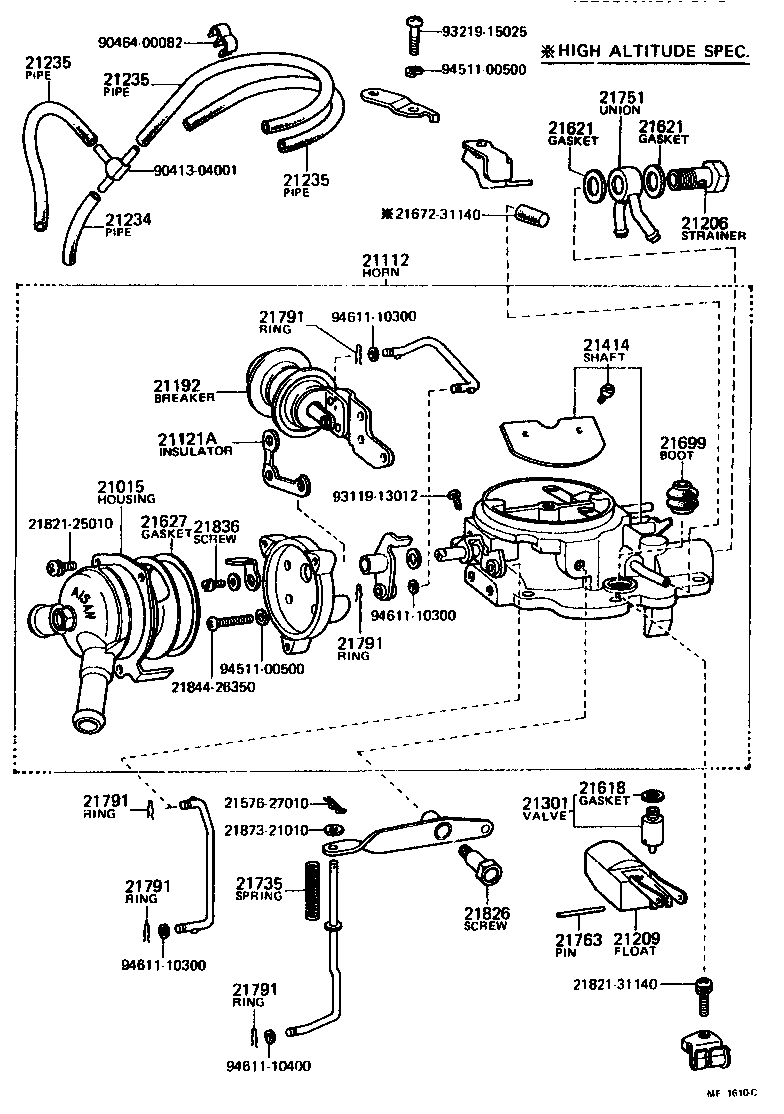

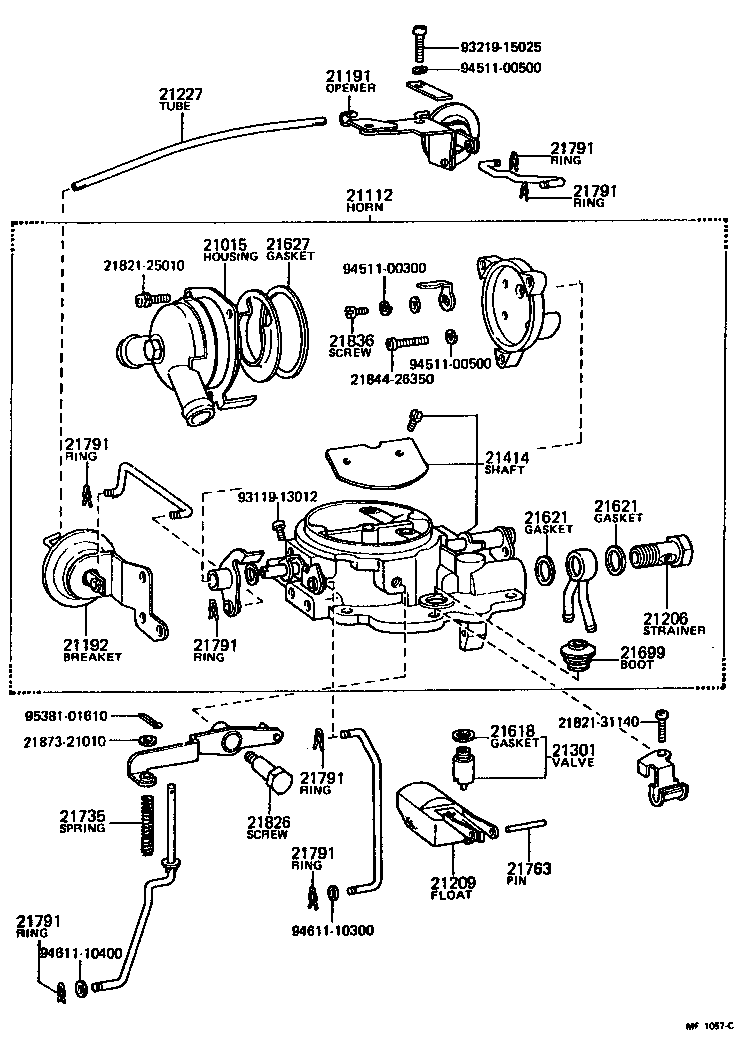

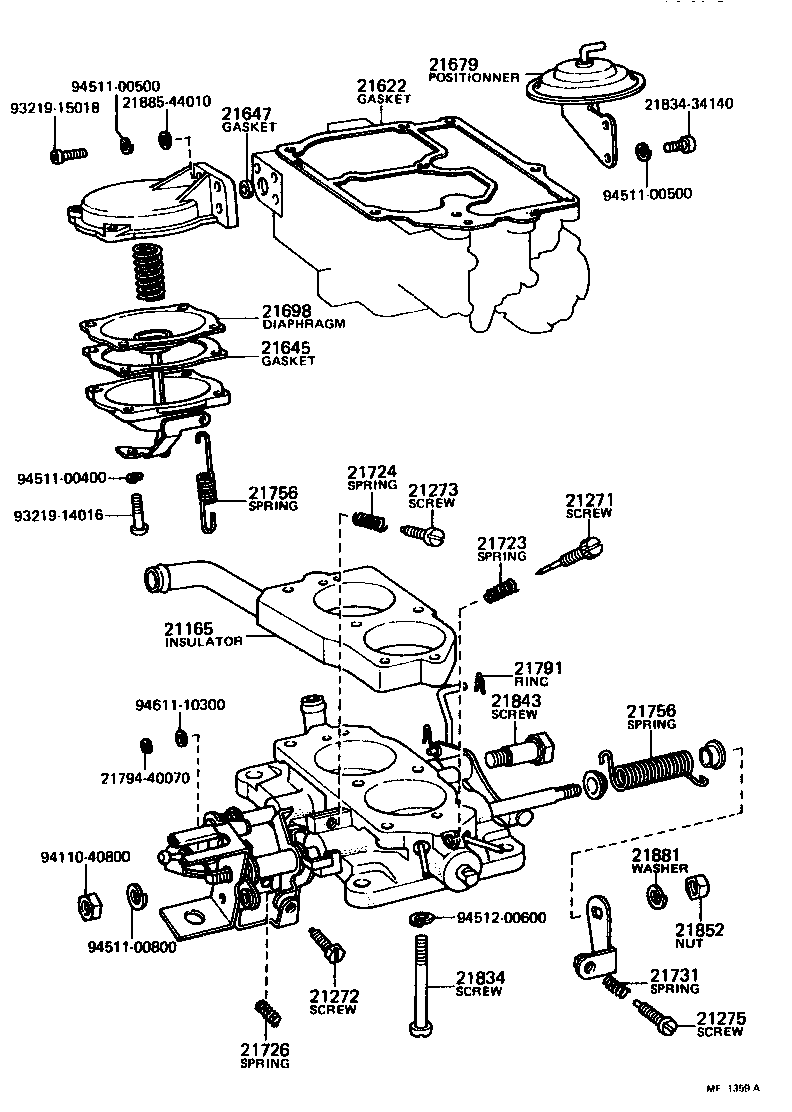

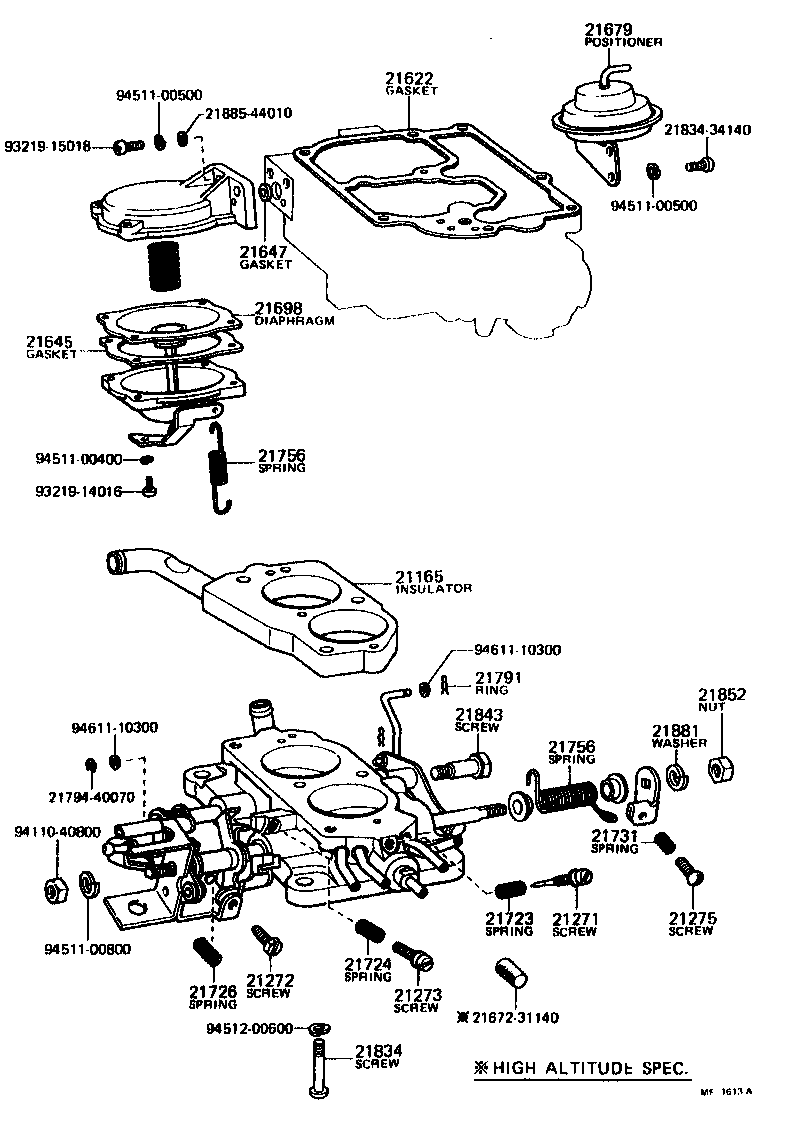

Illustrations
Part groups
| PNC | Description |
|---|---|
| 21015 | Housing Sub-assy, Coil |
| 21077 | Cover(FOR AUXILIARY ACCELERATION PUMP) |
| 21077A | Gasket(FOR AUXILIARY ACCELERATION PUMP) |
| 21077B | Spring(FOR AUXILIARY ACCELERATION PUMP) |
| 21077C | Ball, Steel(FOR AUXILIARY ACCELERATION PUMP) |
| 21112 | Horn, Air |
| 21113 | Flange, Carburetor |
| 21121 | Case, Thermostat |
| 21121A | Insulator(FOR THERMOSTAT CASE) |
| 21123 | Housing, Diaphragm |
| 21129 | Cover(FOR THERMOSTATIC VALVE) |
| 21138 | Cap, Diaphragm |
| 21138A | Washer(FOR DIAPHRAGM CAP SET) |
| 21165 | Insulator |
| 21191 | Opener |
| 21192 | Breaker |
| 21192A | Hose, NO.1(FOR BREAKER) |
| 21205 | Jet Sub-assy, Slow |
| 21206 | Strainer Sub-assy |
| 21209 | Float Sub-assy |
| 21211 | Venturi, 1ST Small |
| 21211A | Ring(FOR SMALL VENTURI) |
| 21212 | Venturi, 2ND Small |
| 21227 | Tube, Air Vent |
| 21234 | Pipe OR Hose |
| 21235 | Pipe OR Hose, Connecting |
| 21251 | Jet, 1ST Main |
| 21253 | Jet, 2ND Main |
| 21255 | Jet, Power |
| 21257 | Jet, Pump |
| 21257A | Ring, O(FOR PUMP JET) |
| 21257B | Spring(FOR PUMP JET) |
| 21271 | Screw, Idle Adjusting |
| 21272 | Screw, 1ST Idle Adjusting |
| 21273 | Screw, Throttle Adjusting |
| 21275 | Screw, Adjusting |
| 21291 | Glass, Level Gage |
| 21301 | Valve Sub-assy, Needle |
| 21313 | Ball, Steel, NO.1(FOR DISCHARGE WEIGHT) |
| 21314 | Ball, Steel, NO.2(FOR PUMP PLUNGER) |
| 21331 | Valve, 1ST Throttle |
| 21332 | Valve, 2ND Throttle |
| 21334 | Valve, Choke |
| 21335 | Valve, Thermostatic |
| 21341 | Valve, Power |
| 21351 | Piston, Power |
| 21352 | Piston, Vacuum |
| 21353 | Plunger, Pump |
| 21371 | Cam, 1ST Idle |
| 21372 | Follower, 1ST Idle Cam |
| 21412 | Shaft, 1ST Throttle |
| 21413 | Shaft, 2ND Throttle |
| 21414 | Shaft, Choke |
| 21431 | Arm, 1ST Throttle Shaft |
| 21447 | Lever, Diaphragm |
| 21449 | Lever, 2ND Kick |
| 21452 | Lever, Pump |
| 21453 | Lever, 1ST Throttle |
| 21456 | Lever, 1ST Throttle Idle Adjusting, NO.1 |
| 21471 | Link, Pump Connecting |
| 21474 | Link, Connecting |
| 21482 | Connector, Piston |
| 21483 | Connector, NO.1 |
| 21491 | Rod, Sliding |
| 21511 | Clamp, Level Gage |
| 21526 | Support, Back Spring |
| 21531 | Retainer, Coil Housing |
| 21536 | Plate, Coil Housing |
| 21538 | Retainer, Ball Check |
| 21553 | Guide |
| 21557 | Spacer(FOR 1ST IDLE CAM) |
| 21561 | Weight, Pump Discharge |
| 21572 | Stop, Power Piston |
| 21575 | Stopper, B(FOR DISCHARGE WEIGHT) |
| 21575A | Spring(FOR STOPPER, B) |
| 21581 | Shim, 1ST Throttle Shaft |
| 21609 | Diaphragm Sub-assy |
| 21611 | Gasket, Main Jet |
| 21614 | Gasket, Venturi |
| 21617 | Gasket, Main Passage Plug |
| 21618 | Gasket, Needle Valve Seat |
| 21621 | Gasket, Union Nipple |
| 21622 | Gasket, Air Horn |
| 21623 | Gasket, Body Flange |
| 21625 | Gasket, Level Gage |
| 21626 | Gasket, Case |
| 21627 | Gasket, Coil Housing |
| 21641 | Gasket(FOR THERMOSTATIC VALVE COVER) |
| 21645 | Gasket, Diaphragm, Cap |
| 21647 | Gasket, Diaphragm Housing Cap |
| 21649 | Gasket(FOR PUMP DISCHARGE WEIGHT STOPPER) |
| 21659 | Ring, O(FOR THERMOSTATIC VALVE) |
| 21664 | Lever(FOR DASH POT OR POSITIONER) |
| 21667 | Diaphragm |
| 21679 | Positioner |
| 21697 | Boot(FOR SLIDING ROD) |
| 21698 | Diaphragm |
| 21699 | Boot(FOR PUMP PLUNGER) |
| 21722 | Spring, Pump Damping |
| 21723 | Spring, Idle Adjusting |
| 21724 | Spring, Throttle Adjusting |
| 21726 | Spring, 1ST Idle Adjusting |
| 21731 | Spring, Dash Pot OR Positioner Adjusting |
| 21734 | Spring, Power Piston |
| 21735 | Spring, Pump Arm |
| 21736 | Spring, 1ST Idle Cam |
| 21751 | Union, Nipple |
| 21756 | Spring, Back(FOR THROTTLE SHAFT) |
| 21763 | Pin, Float Lever |
| 21764 | Pin, Piston(FOR VACUUM PISTON) |
| 21781 | Plug, Main Passage(FOR CARBURETOR JET) |
| 21791 | Ring, Snap, NO.1(FOR CARBURETOR LINK) |
| 21794 | Ring, Retainer, NO.1(FOR THROTTLE SHAFT) |
| 21821 | Screw, 2ND Throttle Valve Set |
| 21822 | Screw, 1ST Throttle Valve Set |
| 21823 | Screw, Choke, Valve Set |
| 21824 | Screw, Set(FOR 1ST IDLE CAM FOLLOWER SET) |
| 21826 | Screw, Pump Arm Set |
| 21827 | Screw, Connector Set |
| 21828 | Screw, 1ST Idle Set |
| 21831 | Screw, Power Piston Stop |
| 21834 | Screw, Set, NO.2(FOR CARBURETOR BODY SET) |
| 21836 | Screw, Thermostat Case Set |
| 21837 | Screw, Coil Housing Set |
| 21842 | Screw, Set(FOR CARBURETOR LEVEL GAGE CLAMP SET) |
| 21843 | Screw OR Pin (FOR DASH POT OR POSITIONER LEVER) |
| 21852 | Nut, Throttle Lever Set |
| 21867 | Spring, Diaphragm |
| 21868 | Spring, Diaphragm Relief |
| 21881 | Washer, Lock(FOR THROTTLE SHAFT) |
| 21884 | Washer, Thermostat Case Set |
| 21887 | Washer(FOR CONNECTING LINK SETTING) |
| 21934 | Solenoid, Throttle Valve |
| 21934E | Ring, O(FOR SOLENOID VALVE) |
| 21934F | Gasket |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
