Toyota Corona
1973-08 → 1978-08 · chassis RT10#,11# · catalogue 261430 · United States
Discontinued model
Data version 1985-04

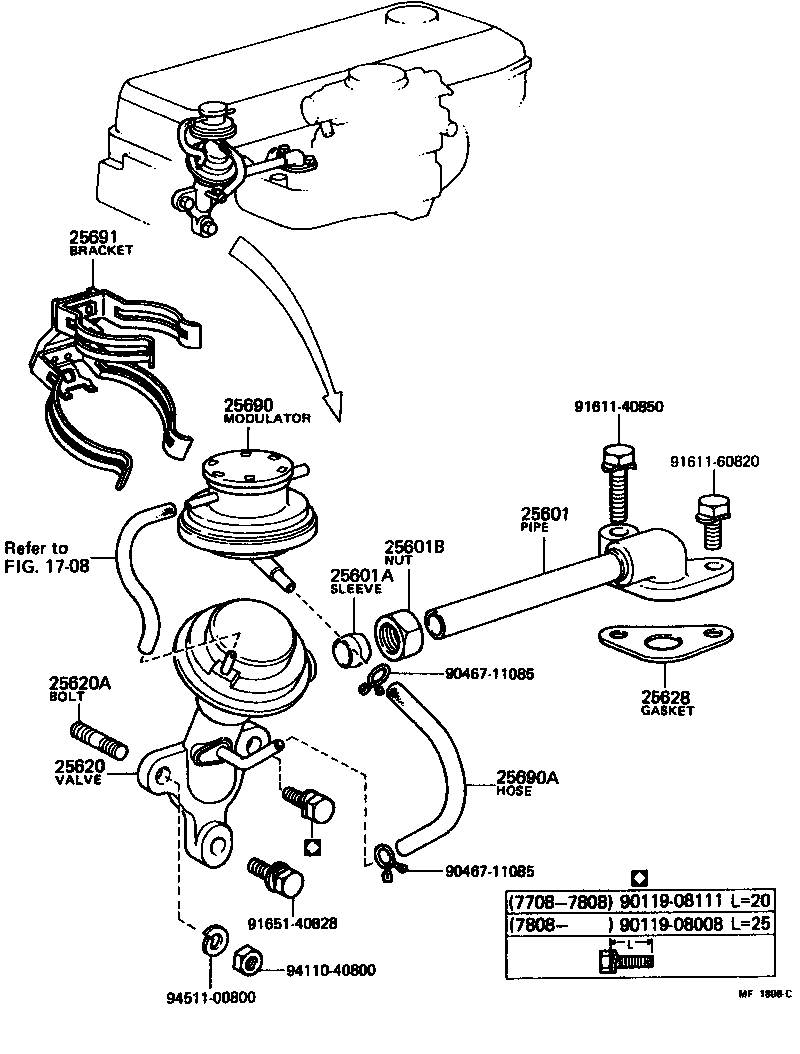

Exhaust Gas Recirculation System
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 25601 | Pipe Sub-assy, Egr, NO.1 |
| 25601A | Sleeve, Ball, Egr Pipe, NO.1 |
| 25601B | Nut, Union, Egr Pipe, NO.1 |
| 25602 | Pipe Sub-assy, Egr, NO.2 |
| 25602A | Hose(FOR EGR PIPE, NO.2) |
| 25602B | Clip(FOR EGR PIPE, NO.2) |
| 25620 | Valve Assy, Egr |
| 25620A | Bolt, Stud(FOR EGR VALVE) |
| 25627 | Gasket, Egr Valve |
| 25628 | Gasket, Egr Inlet |
| 25631 | Stay, Egr Pipe, NO.1 |
| 25631A | Bolt(FOR EGR PIPE CLAMP) |
| 25690 | Modulator Assy, Egr Vacuum |
| 25690A | Hose(FOR EGR VACUUM MODULATOR) |
| 25691 | Bracket, Egr Vacuum Modulator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
