Toyota Corona
1973-08 → 1978-08 · chassis RT10#,11# · catalogue 261430 · United States
Discontinued model
Data version 1985-04

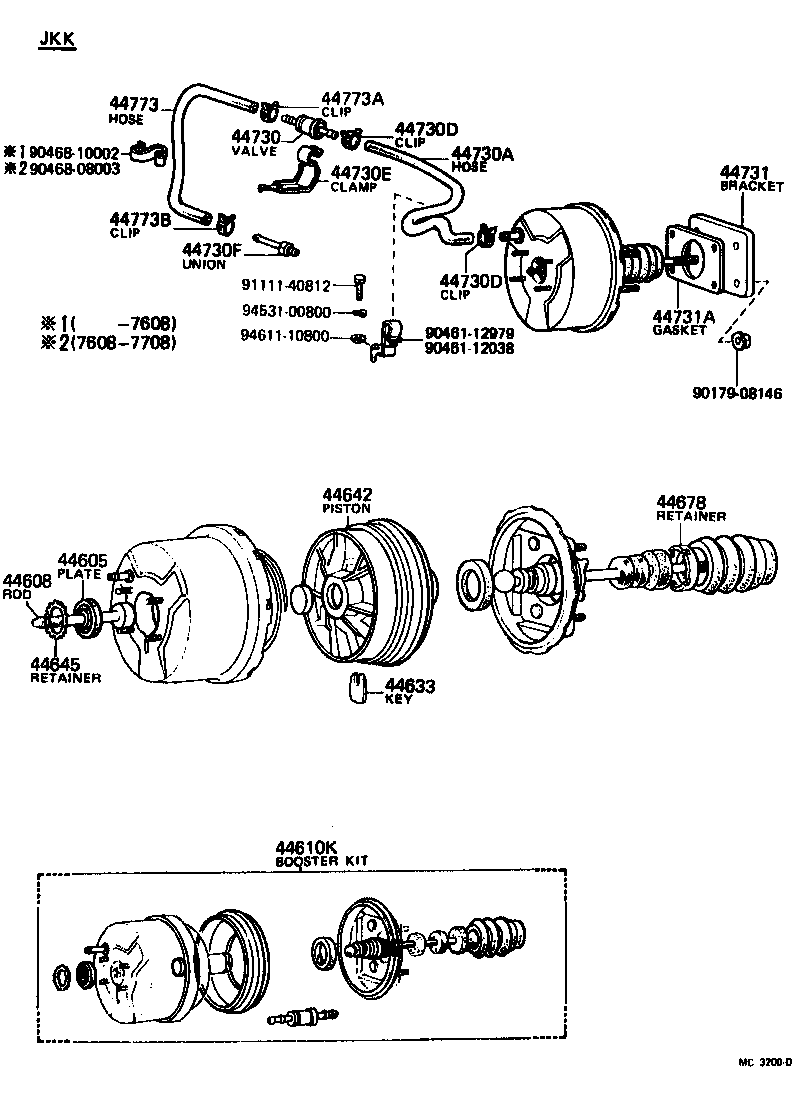

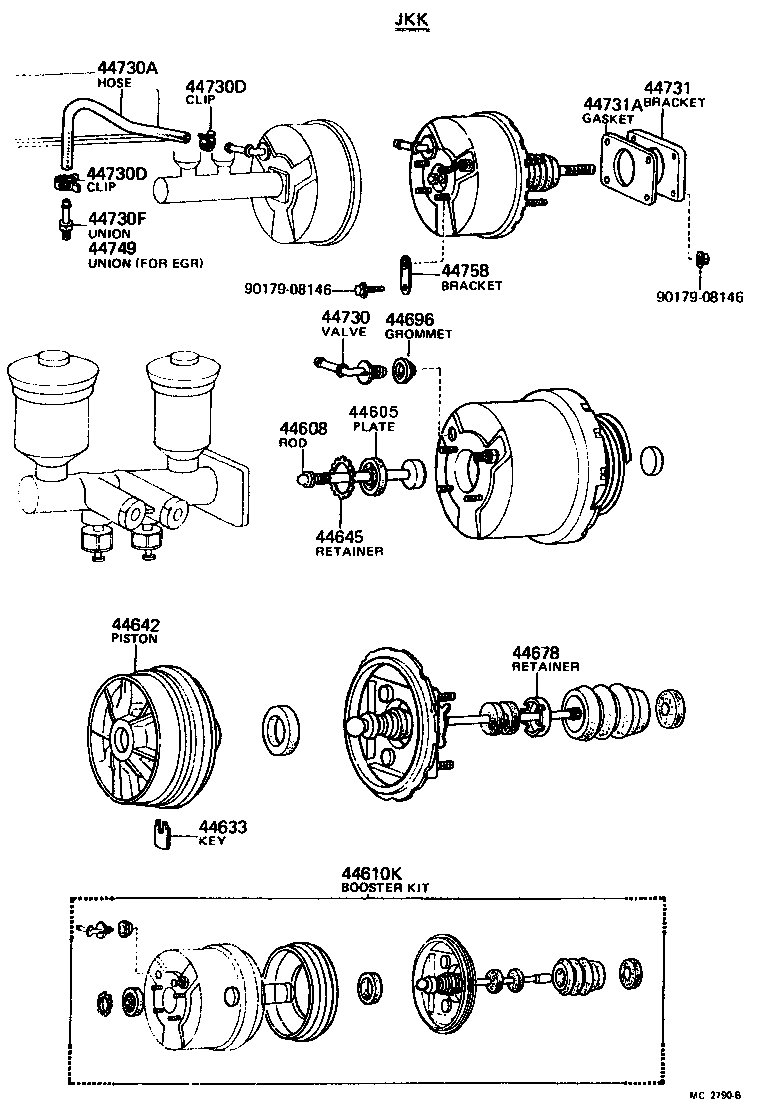

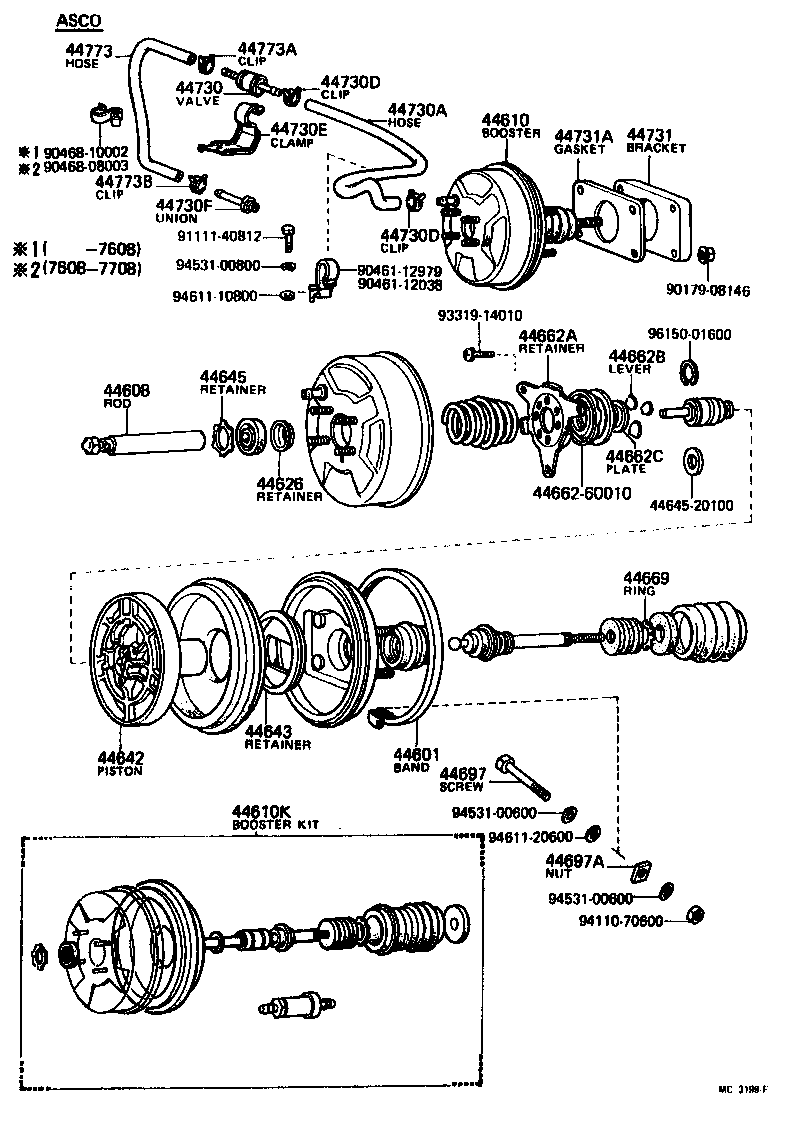

Brake Booster & Vacuum Tube
32 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 44601 | Band Sub-assy, Booster Body |
| 44605 | Plate & Seal Sub-assy, Booster |
| 44608 | Push Rod Sub-assy, Booster |
| 44610 | Booster Assy, Brake |
| 44610K | Booster Kit, Brake |
| 44626 | Retainer, Booster Rod Cup |
| 44633 | Key, Booster Valve Plunger |
| 44642 | Piston, Brake Booster |
| 44643 | Retainer, Diaphragm |
| 44645 | Retainer, Booster Push Rod Seal |
| 44662 | Retainer, Reaction, NO.1 |
| 44662A | Retainer, Reaction, NO.2 |
| 44662B | Lever, Reaction |
| 44662C | Plate, Reaction, NO.1 |
| 44662J | Rubber, Bias(FOR REACTION RETAINER) |
| 44669 | Ring, Circular Internal(FOR AIR CLEANER ELEMENT STOPPER) |
| 44678 | Retainer, Booster Air Cleaner |
| 44696 | Grommet, Check Valve |
| 44697 | Screw, Booster Band Set |
| 44697A | Nut(FOR BOOSTER BAND SET) |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44730A | Hose, Vacuum, NO.1 |
| 44730D | Clip(FOR VACUUM HOSE, NO.1) |
| 44730E | Clamp, Vacuum Check Valve |
| 44730F | Union, Vacuum Hose(FOR MANIFOLD SIDE) |
| 44731 | Bracket, Brake Booster, Front |
| 44731A | Gasket, Brake Booster Bracket |
| 44749 | Union, W/Filter(FOR EGR) |
| 44758 | Bracket, Vacuum Check Valve |
| 44773 | Hose, Vacuum, NO.2 |
| 44773A | Clip, NO.1(FOR VACUUM HOSE, NO.2) |
| 44773B | Clip, NO.2(FOR VACUUM HOSE, NO.2) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
