Toyota Corona
1973-08 → 1978-08 · chassis RT10#,11# · catalogue 261430 · United States
Discontinued model
Data version 1985-04

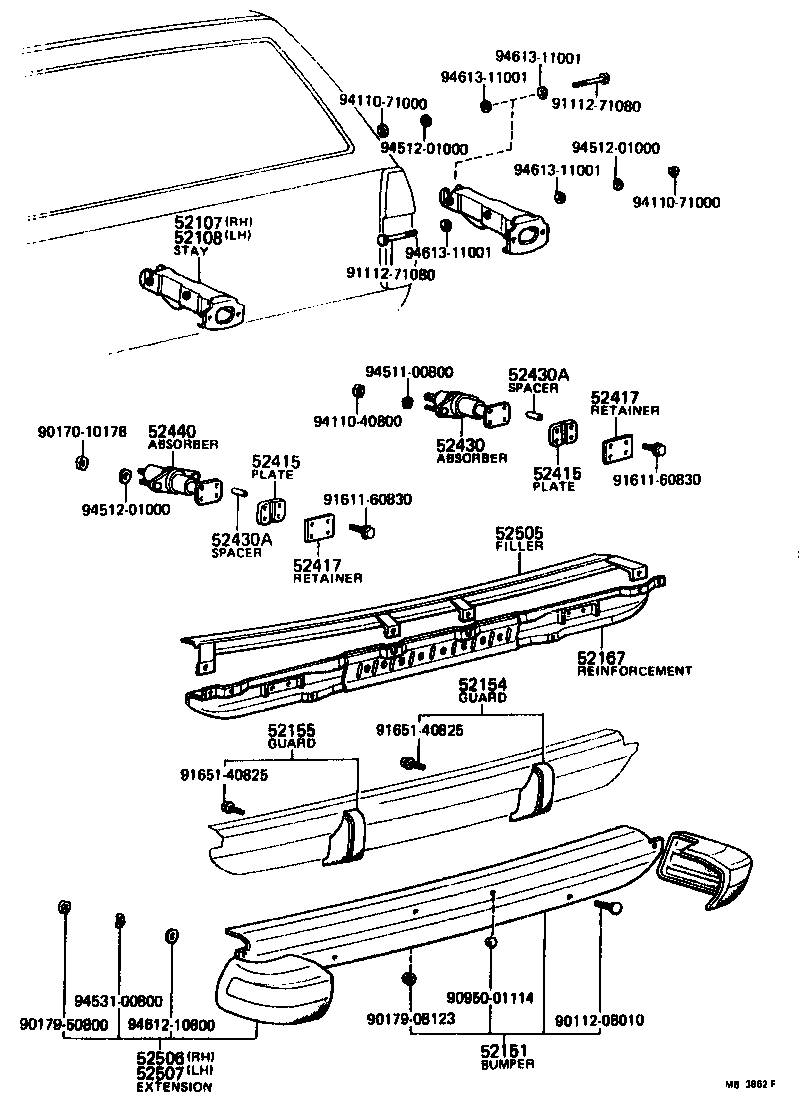

Rear Bumper & Bumper Stay
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52107 | Stay Sub-assy, Rear Bumper, RH |
| 52108 | Stay Sub-assy, Rear Bumper, LH |
| 52151 | Bumper Assy, Rear |
| 52151A | Plug, Rear Bumper |
| 52154 | Guard, Bumper, Rear RH |
| 52155 | Guard, Bumper, Rear LH |
| 52167 | Reinforcement, Rear Bumper |
| 52430 | Absorber, Rear Bumper, RH |
| 52430A | Spacer, Rear Bumper Absorber |
| 52440 | Absorber, Rear Bumper, LH |
| 52505 | Filler Sub-assy, Rear Bumper |
| 52505A | Retainer(FOR REAR BUMPER FILLER) |
| 52505B | Cushion(FOR REAR BUMPER FILLER) |
| 52506 | Extension Sub-assy, Rear Bumper, RH |
| 52507 | Extension Sub-assy, Rear Bumper, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
