Toyota Corona

1973-08 → 1978-08 · chassis RT10#,11# · catalogue 261430 · United States

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

16 part groups · 3 illustrations

Illustrations

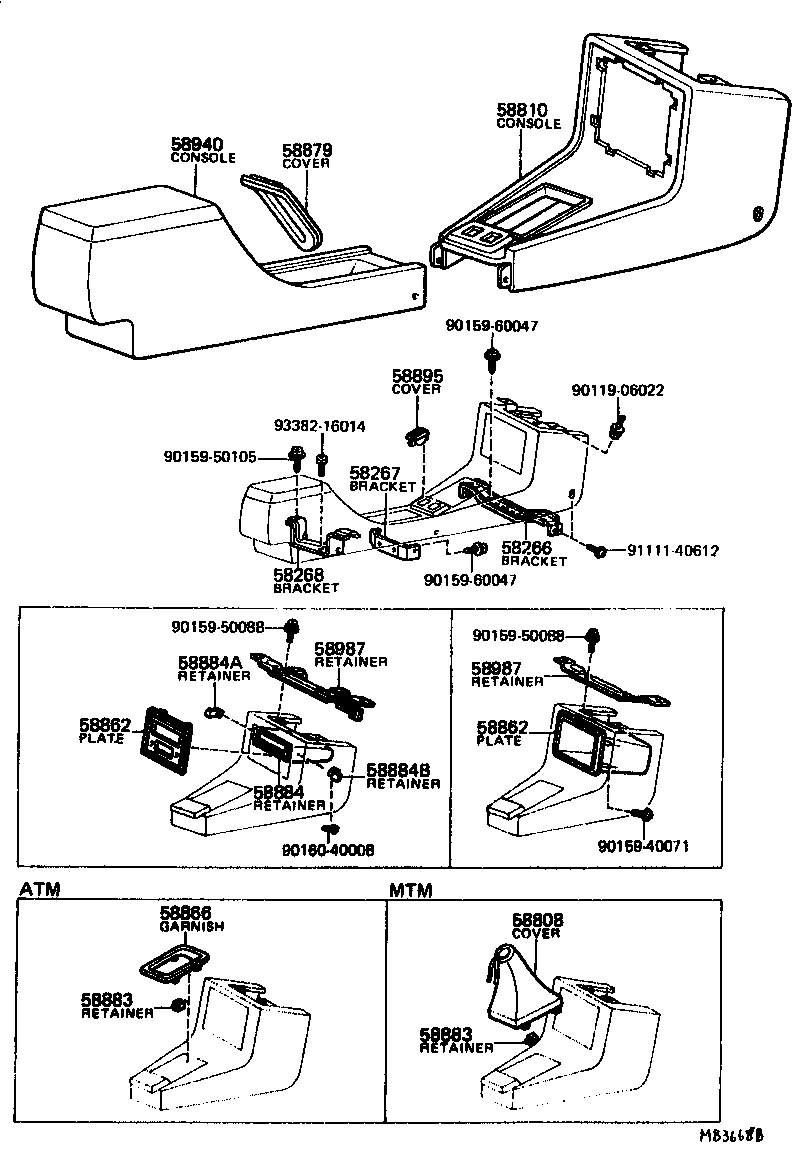

Figure MB3667E MB3667E 1973-08 → 1978-08 Figure MB3668B MB3668B 1973-08 → 1978-08 Figure MB3666A MB3666A 1973-08 → 1977-01

Part groups

PNCDescription
58266 Bracket, Console Box Support, Front
58267 Bracket, Console Box Support, Center
58268 Bracket, Console Box Support, Rear
58808 Cover Sub-assy, Shifting Hole
58810 Console Assy
58862 Plate, Console Finish
58866 Garnish, Shifting Hole
58879 Cover, Parking Brake Lever
58883 Retainer, Shifting Hole Cover
58884 Cover, Stereo Opening
58884A Retainer, Stereo Opening, NO.1
58884B Retainer, Stereo Opening, NO.2
58895 Cover, Switch Hole, NO.1
58909 Console, Over Head
58940 Console Assy, Rear
58987 Retainer, Console Box Stereo, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
