Toyota Corona

1973-08 → 1978-08 · chassis RT10#,11# · catalogue 261430 · United States

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Side Ventilator

10 part groups · 3 illustrations

Illustrations

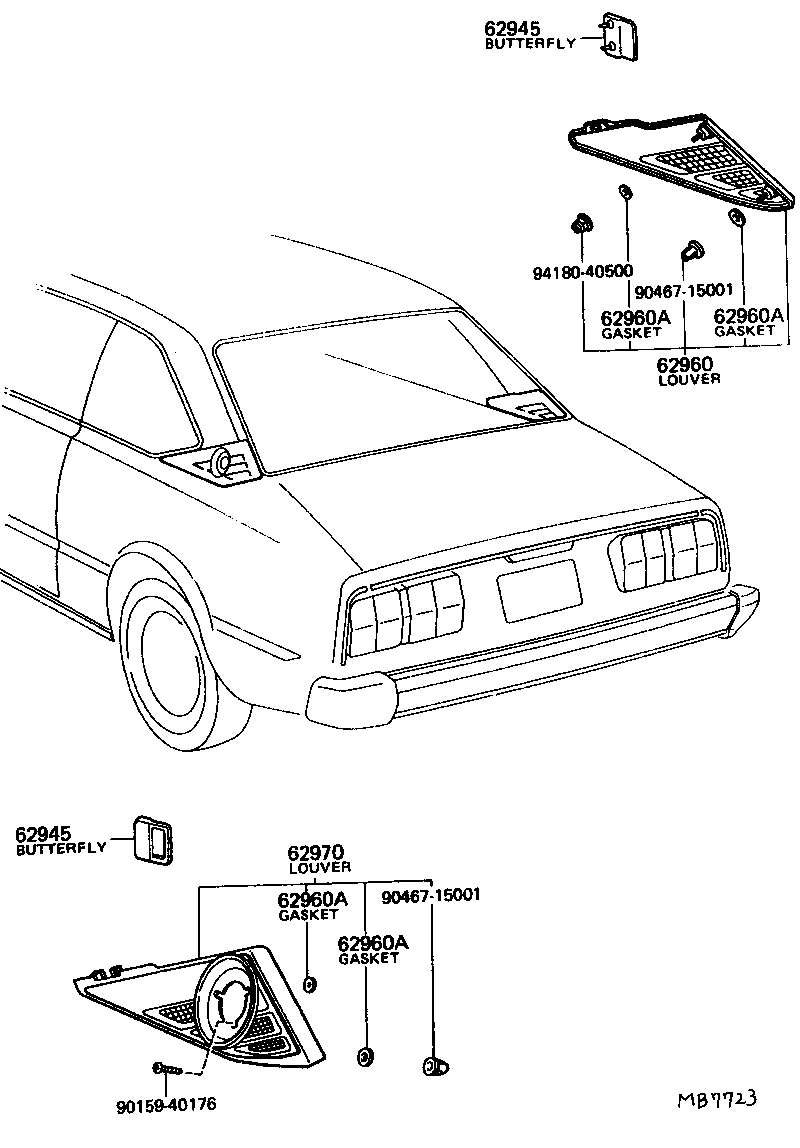

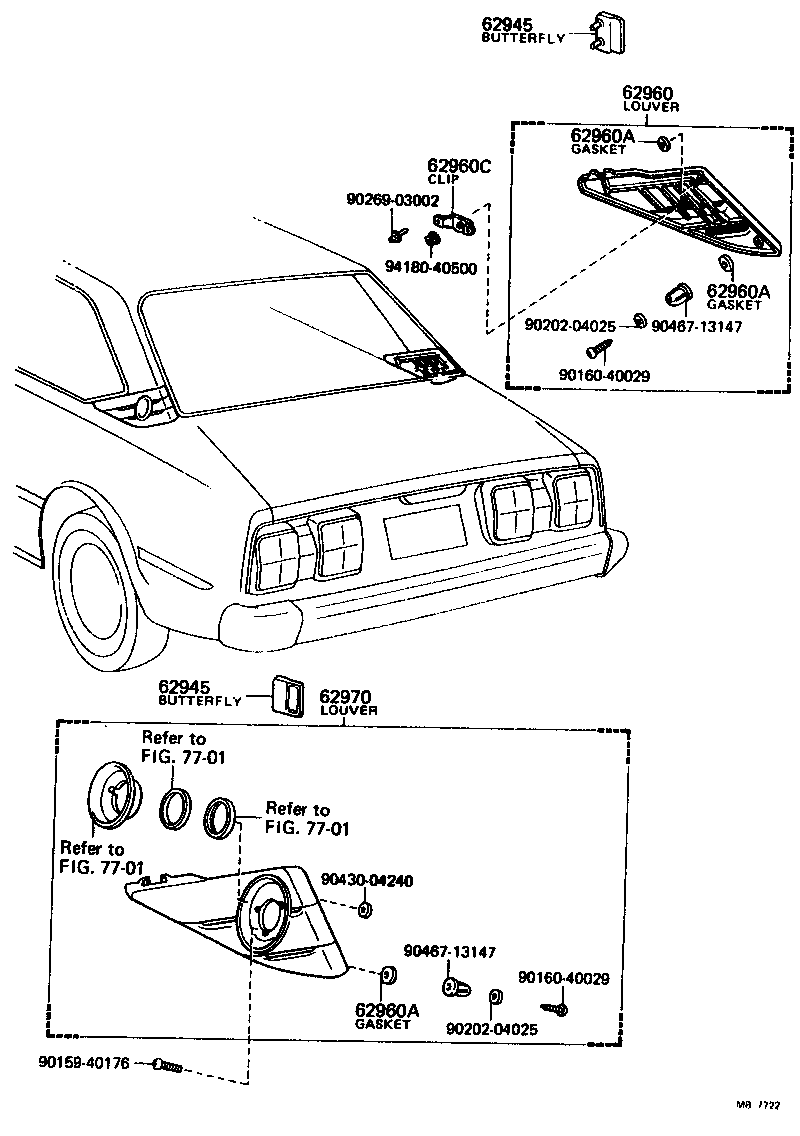

Figure MB4706B MB4706B 1973-08 → 1978-08 Figure MB7722 MB7722 1973-08 → 1977-01 Figure MB7723 MB7723 1977-01 → 1978-08

Part groups

PNCDescription
62930 Duct Assy, Roof Side Vent, RH
62939 Retainer, Roof Side Vent
62940 Duct Assy, Roof Side Vent, LH
62945 Butterfly, Roof Side Vent
62951 Louver, Vent, Inner RH
62952 Louver, Vent, Inner LH
62960 Louver Assy, Roof Side Vent, RH
62960A Gasket(FOR ROOF SIDE VENT LOUVER)
62960C Clip, Roof Side Vent Louver
62970 Louver Assy, Roof Side Vent, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
