Toyota Corona
1973-08 → 1978-08 · chassis RT10#,11# · catalogue 261430 · United States
Discontinued model
Data version 1985-04

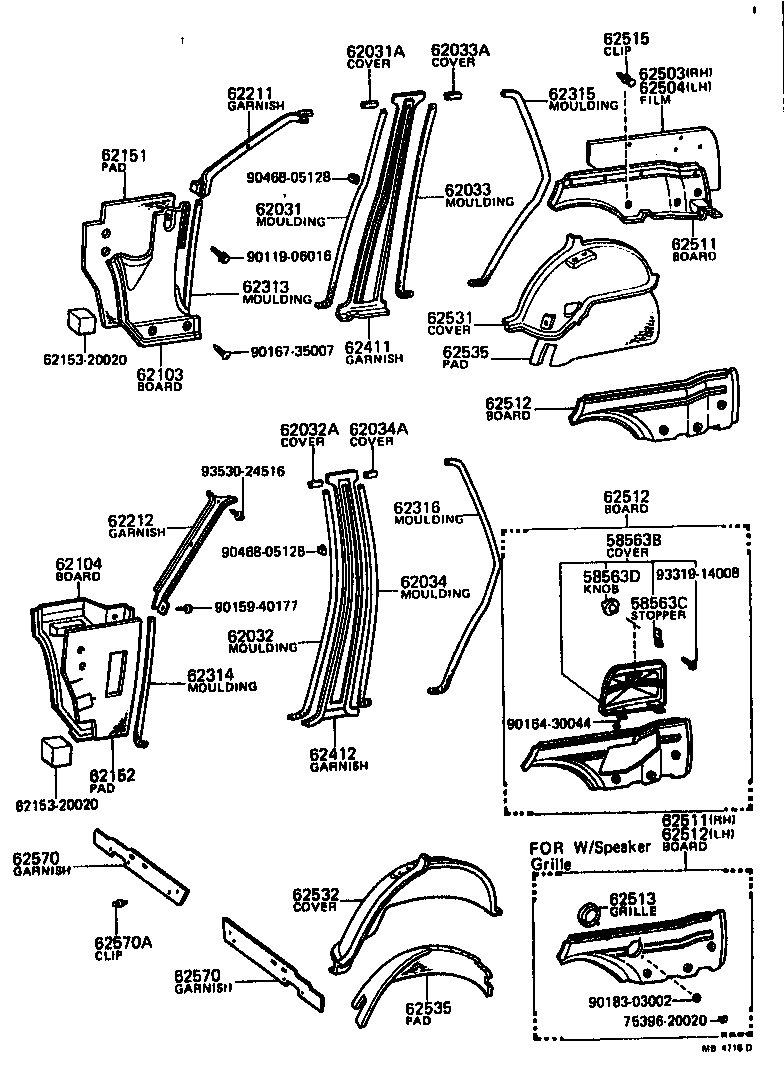

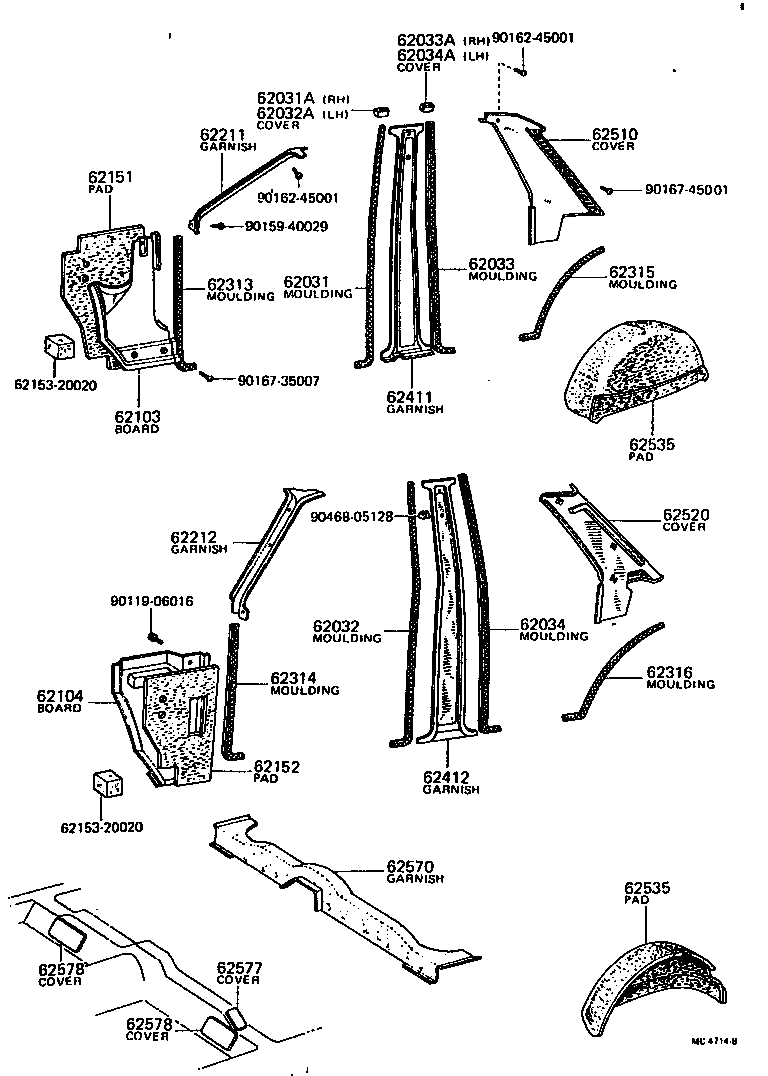

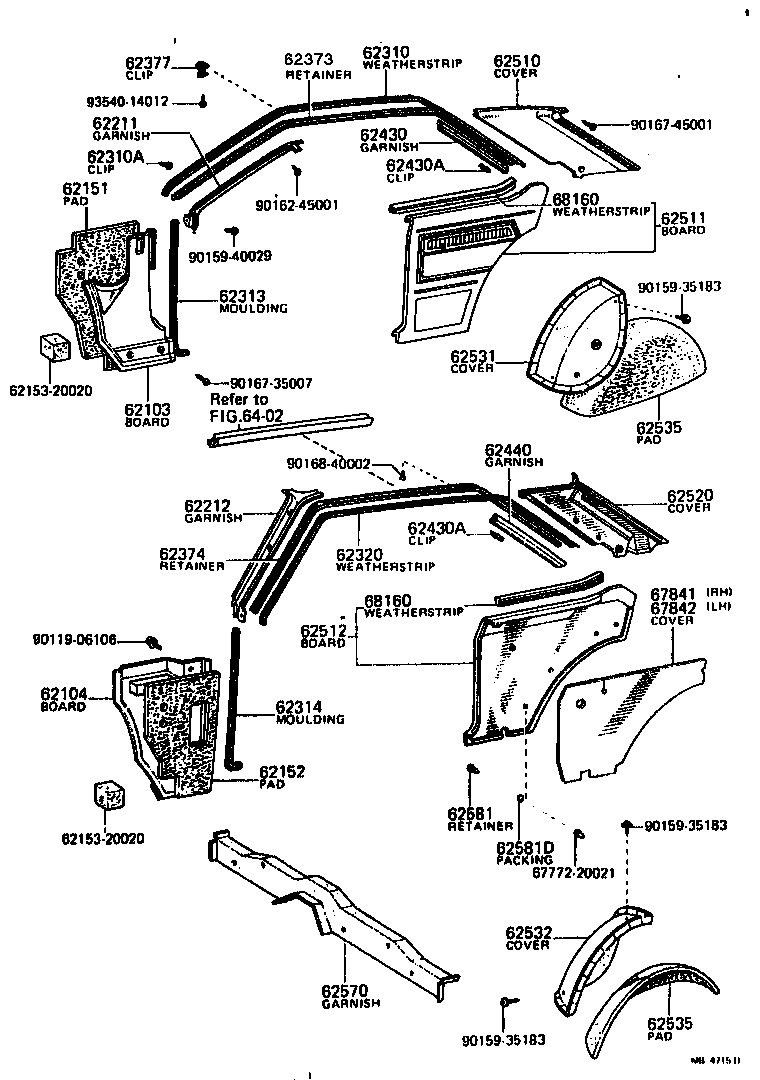

Inside Trim Board & Door Opening Trim Moulding
53 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 58563B | Cover, Jack |
| 58563C | Stopper, Jack Cover |
| 58563D | Knob, Jack Cover |
| 62031 | Moulding Sub-assy, Front Door Opening Trim, RH |
| 62031A | Cover, Front Door Opening, RH |
| 62032 | Moulding Sub-assy, Front Door Opening Trim, LH |
| 62032A | Cover, Front Door Opening, LH |
| 62033 | Moulding Sub-assy, Rear Door Opening Trim, RH |
| 62033A | Cover, Rear Door Opening, RH |
| 62034 | Moulding Sub-assy,Rear Door Opening Trim, LH |
| 62034A | Cover, Rear Door Opening, LH |
| 62103 | Board Sub-assy, Cowl Side Trim, RH |
| 62104 | Board Sub-assy, Cowl Side Trim, LH |
| 62151 | Pad, Cowl Side Silencer, NO.1 |
| 62152 | Pad, Cowl Side Silencer, NO.2 |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62310 | Weatherstrip, Roof Side Rail, RH |
| 62310A | Clip, Roof Side Rail Weatherstrip |
| 62313 | Moulding, Front Door Opening Trim, RH |
| 62314 | Moulding, Front Door Opening Trim, LH |
| 62315 | Moulding, Rear Door Opening Trim, RH |
| 62316 | Moulding, Rear Door Opening Trim, LH |
| 62320 | Weatherstrip, Roof Side Rail, LH |
| 62373 | Retainer, Door Opening Weatherstrip, RH |
| 62374 | Retainer, Door Opening Weatherstrip, LH |
| 62377 | Clip, Door Window Glass |
| 62411 | Garnish, Center Pillar, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62430 | Garnish Assy, Roof Side Rail, RH |
| 62430A | Clip, Roof Side Rail Garnish |
| 62440 | Garnish Assy, Roof Side Rail, LH |
| 62503 | Film Sub-assy, Quarter Inside Panel, RH |
| 62504 | Film Sub-assy, Quarter Inside Panel, LH |
| 62510 | Cover Assy, Back Window Side Garnish, RH |
| 62511 | Board, Quarter Inside Trim, RH |
| 62511E | Pocket, Quarter Trim |
| 62512 | Board, Quarter Inside Trim, LH |
| 62513 | Grille, Speaker, Side |
| 62515 | Clip, Quarter Inside Trim |
| 62520 | Cover Assy, Back Window Side Garnish, LH |
| 62531 | Cover, Wheel House Trim, RH |
| 62532 | Cover, Wheel House Trim, LH |
| 62535 | Pad, Quarter Wheel House Trim |
| 62570 | Garnish Assy, Center Floor Crossmember |
| 62570A | Clip(FOR CENTER FLOOR CROSSMEMBER GARNISH SET) |
| 62577 | Cover, Crossmember, Upper |
| 62578 | Cover, Crossmember, NO.1 |
| 62581 | Retainer, Quarter Trim |
| 62581D | Packing, Quarter Trim Retainer |
| 67841 | Cover, Quarter Service Hole, NO.1 RH |
| 67842 | Cover, Quarter Service Hole, NO.1 LH |
| 68160 | Weatherstrip Assy, Rear Quarter, Inner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
