Toyota Corona

1973-08 → 1978-08 · chassis RT10#,11# · catalogue 261430 · United States

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

9 part groups · 2 illustrations

Illustrations

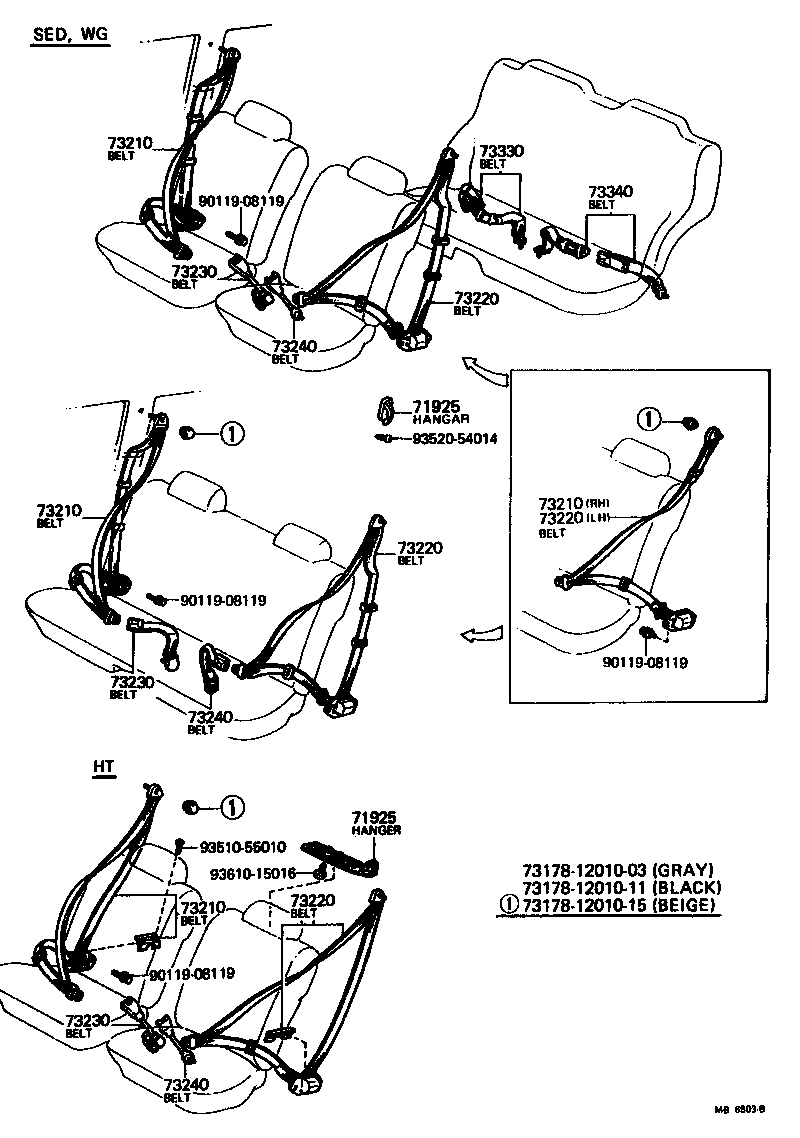

Figure MB3690E MB3690E 1973-08 → 1977-01 Figure MB6803B MB6803B 1977-01 → 1978-08

Part groups

PNCDescription
71925 Hanger, Seat Belt
72855 Cap, Belt Retractor Cover
73181 Clip, Belt Comfort, NO.1
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73330 Belt Assy, Rear Seat Lap Type, RH
73340 Belt Assy, Rear Seat Lap Type, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
