Toyota Corona

1973-08 → 1978-08 · chassis RT10#,11# · catalogue 261430 · United States

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

12 part groups · 2 illustrations

Illustrations

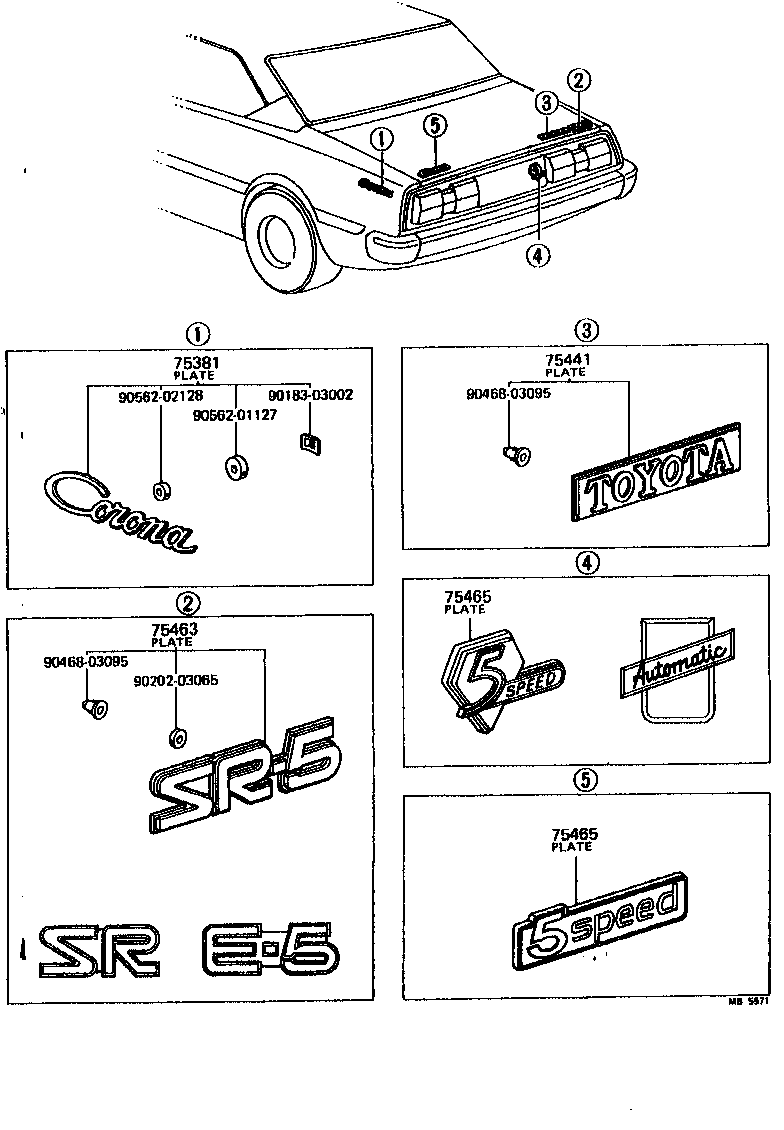

Figure MB5570C MB5570C 1973-08 → 1978-08 Figure MB5571 MB5571 1973-08 → 1978-08

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75321 Plate, Radiator Grille OR Front Panel Name
75322 Retainer, Radiator Grille Name Plate
75323 Retainer, Radiator Grille
75335 Ornament, Hood Relief, RH
75336 Ornament, Hood Relief, LH
75341 Plate, Instrument Panel Name, NO.1
75381 Plate, Quarter Panel OR Side Panel Name (MODEL MARK)
75382 Emblem, Quarter Panel OR Side Panel
75441 Plate, Rear Name, NO.1
75463 Plate, Rear Name, NO.4 (GRADE MARK)
75465 Plate, Rear Name, NO.5 (MECHANISM)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
