Toyota Corona

1973-08 → 1978-08 · chassis RT10#,11# · catalogue 261430 · United States

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

56 part groups · 10 illustrations

Illustrations

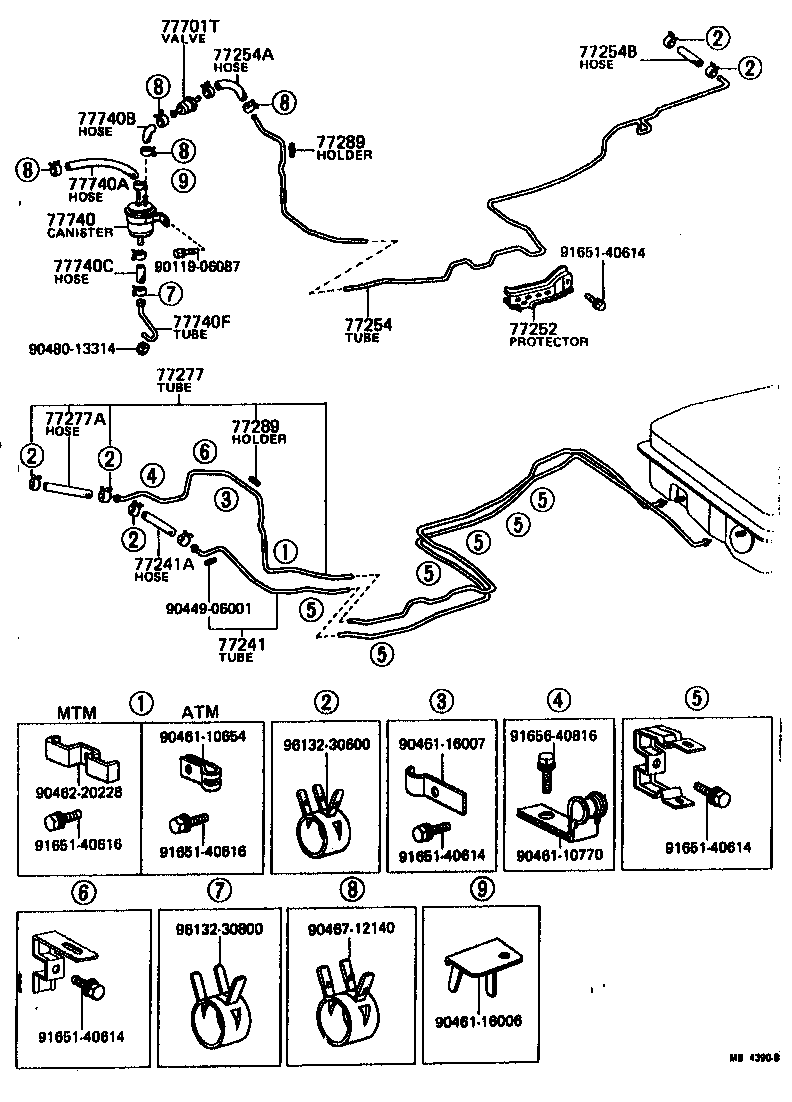

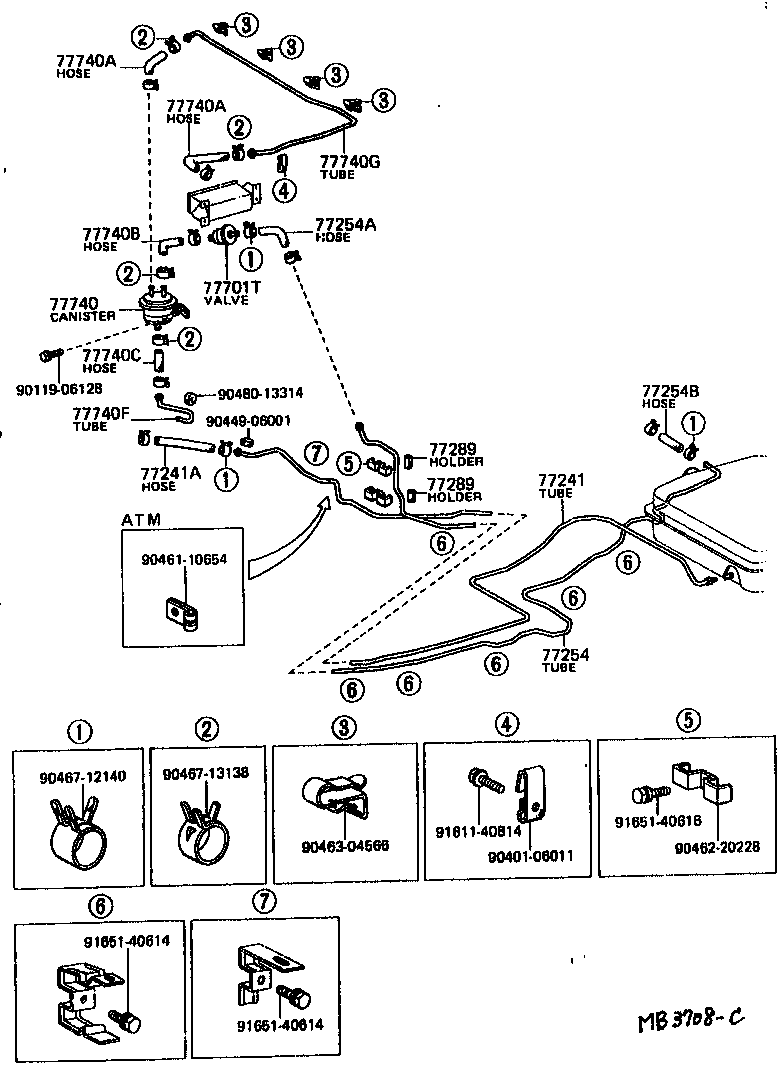

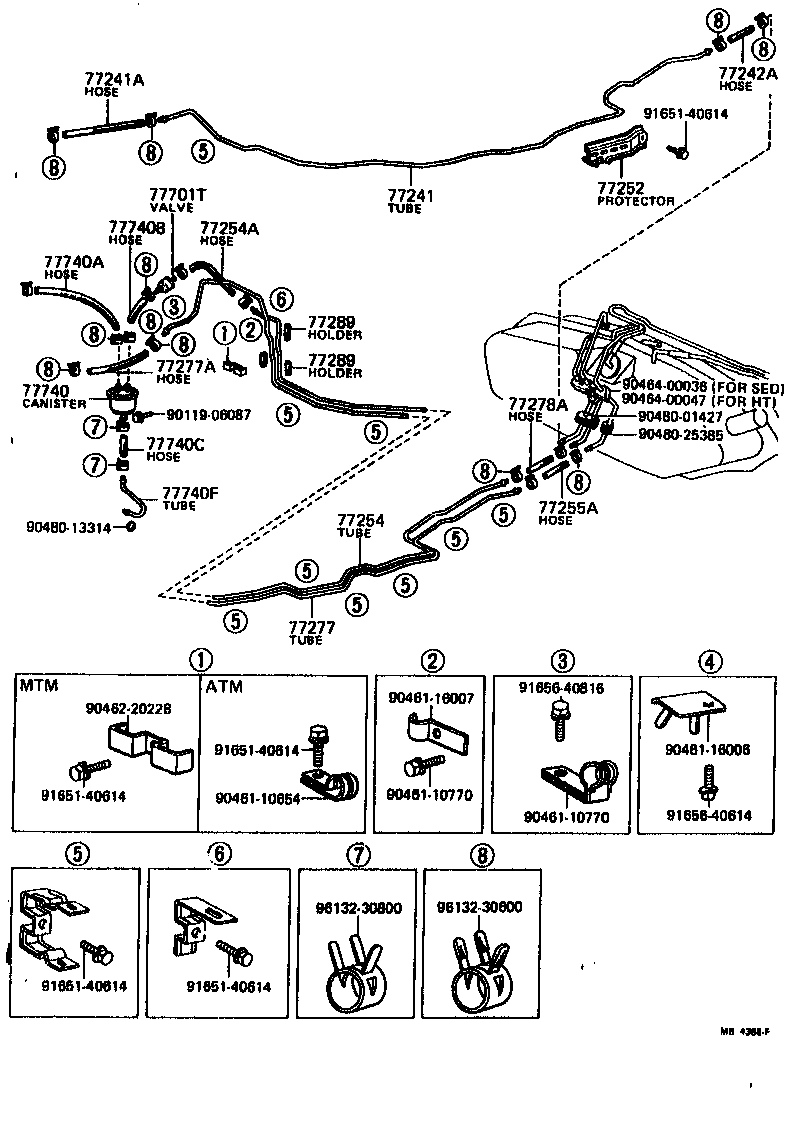

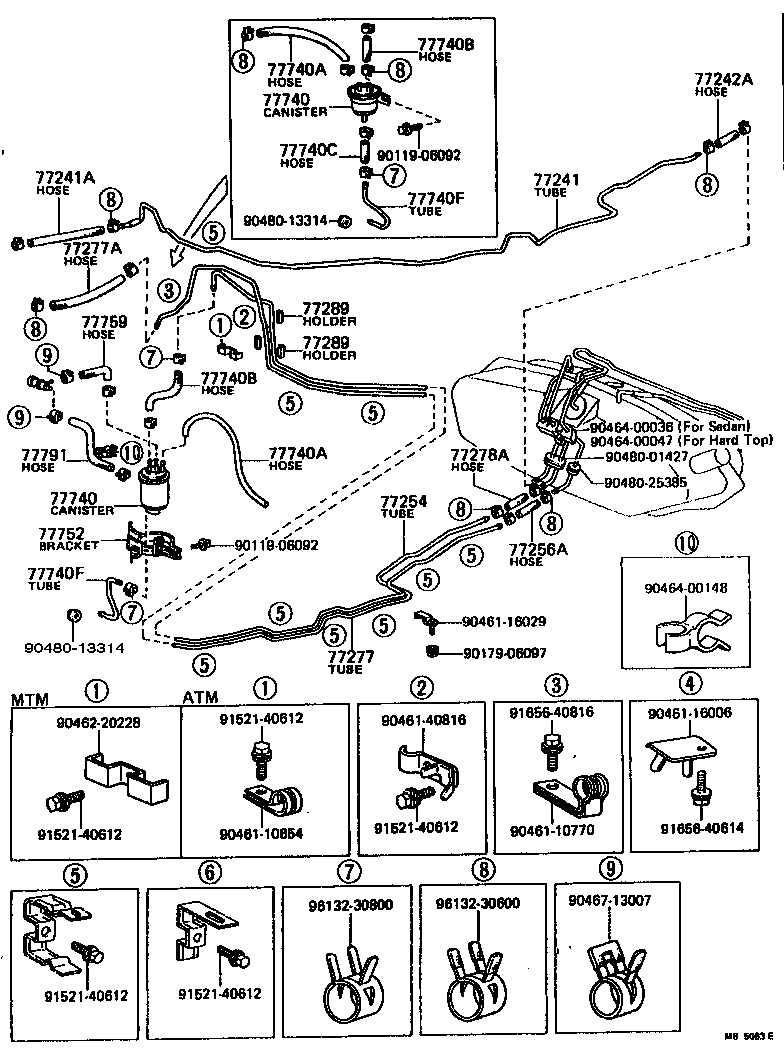

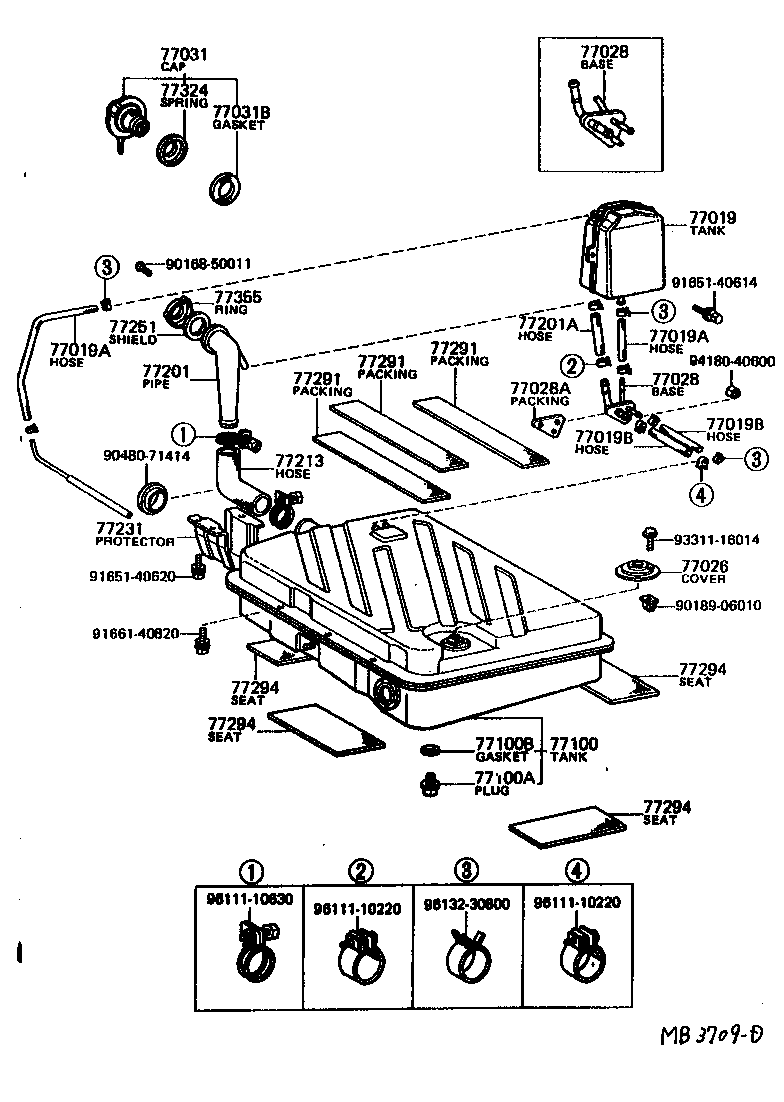

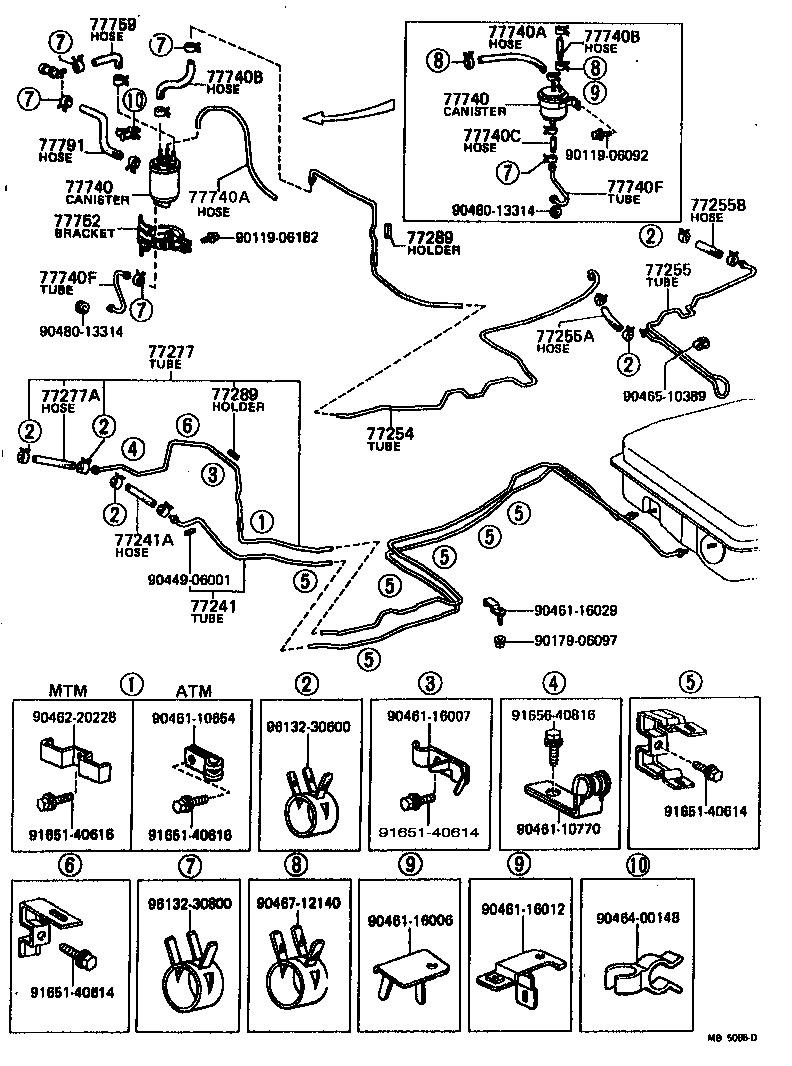

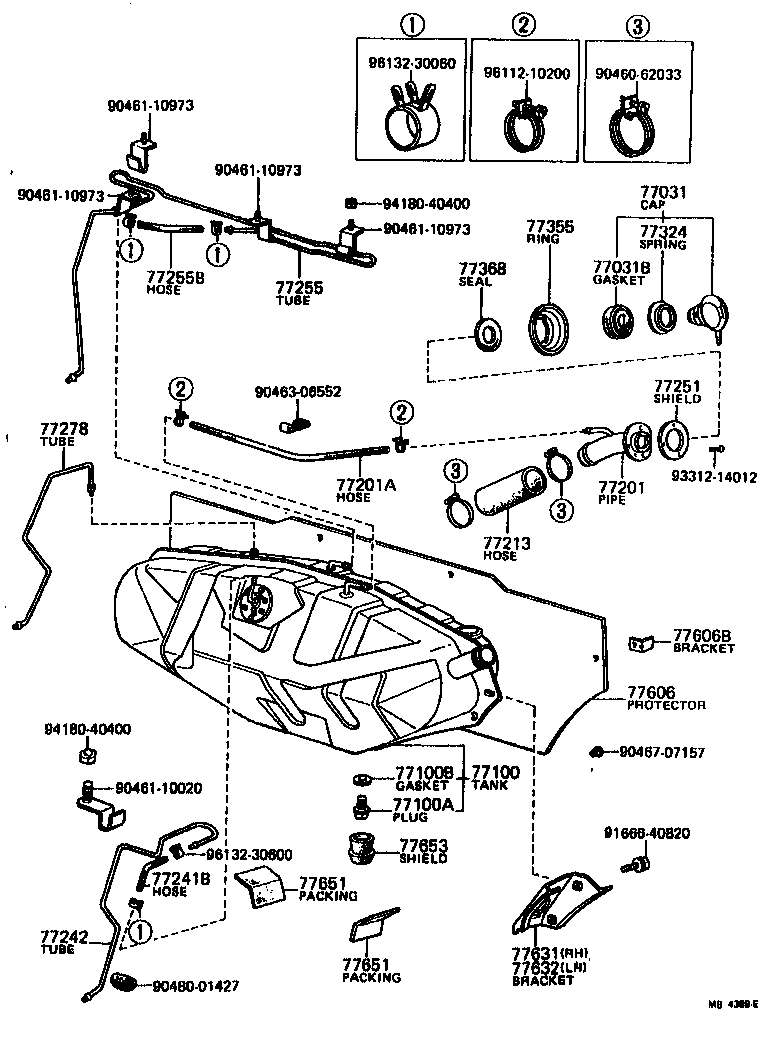

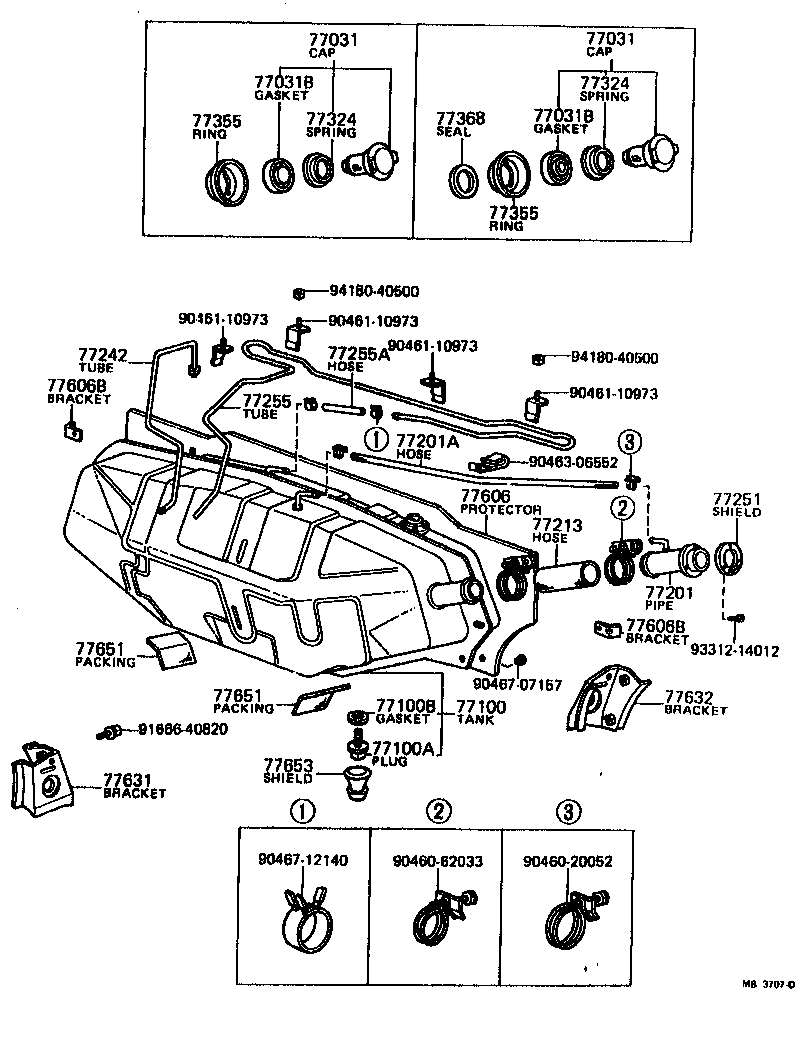

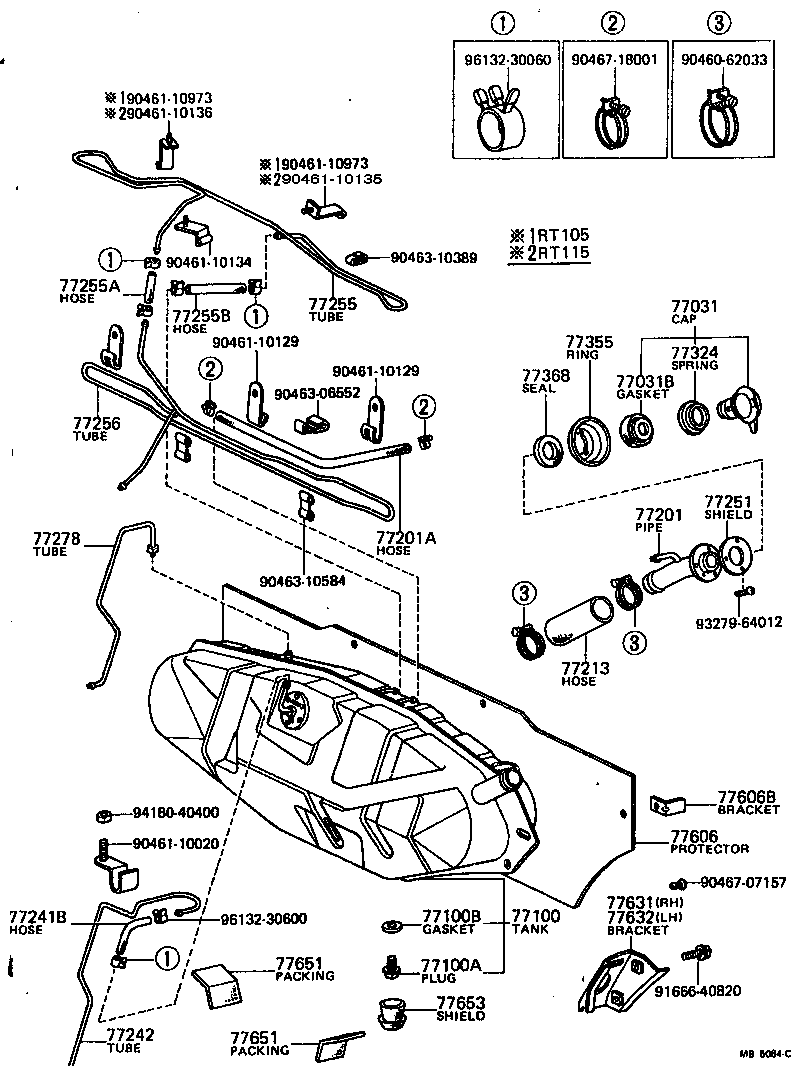

Figure MB3706C MB3706C 1973-08 → 1974-08 Figure MB3707D MB3707D 1973-08 → 1974-08 Figure MB4388F MB4388F 1974-08 → 1975-09 Figure MB4389E MB4389E 1974-08 → 1975-09 Figure MB5083E MB5083E 1975-09 → 1978-08 Figure MB5084C MB5084C 1975-09 → 1978-08 Figure MB3708C MB3708C 1973-08 → 1974-08 Figure MB4390B MB4390B 1974-08 → 1975-09 Figure MB5085D MB5085D 1975-09 → 1978-08 Figure MB3709D MB3709D 1973-08 → 1978-08

Part groups

PNCDescription
77019 Tank Sub-assy, Fuel Expansion
77019A Hose, Fuel, NO.1(FOR FUEL EXPANSION TANK)
77019B Hose, Fuel, NO.2(FOR FUEL EXPANSION TANK)
77026 Cover Sub-assy, Fuel Sender Gage
77028 Base Sub-assy, Breather Joint, NO.1
77028A Packing, NO.1 (FOR BREATHER JOINT, NO.1)
77031 Cap Assy, Fuel Tank
77031B Gasket (FOR FUEL TANK CAP)
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77201 Pipe Sub-assy, Fuel Tank Inlet
77201A Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE)
77213 Hose, Fuel Tank Sub Inlet
77231 Protector, Inlet Tube
77241 Tube, Fuel Main, NO.1
77241A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77241B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
77242 Tube, Fuel Main, NO.2
77242A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2)
77251 Shield, Fuel Tank, Inlet, NO.1
77252 Protector, Fuel Tube
77254 Tube, Fuel Emission, NO.1
77254A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
77254B Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1)
77255 Tube, Fuel Emission, NO.2
77255A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.2)
77255B Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.2)
77256 Tube, Fuel Emission, NO.3
77256A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.3)
77277 Tube, Fuel Return, NO.1
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77278 Tube, Fuel Return, NO.2
77278A Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.2)
77289 Holder, Fuel Tank Pipe Setting
77291 Packing, Fuel Tank Support, Upper
77294 Sheet, Spare Tire Back
77324 Spring, Fuel Tank Cap
77355 Ring, Inlet Box
77368 Seal, Inlet Box
77606 Protector Sub-assy, Fuel Tank, NO.1
77606B Bracket, Fuel Tank Protector, Side
77631 Bracket, Fuel Tank, NO.1
77632 Bracket, Fuel Tank, NO.2
77651 Packing, Fuel Tank Bracket
77653 Shield, Fuel Tank Drain Plug
77701T Valve, Check (FOR MAIN FUEL TANK)
77740 Canister Assy, Charcoal
77740A Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
77740B Hose, Fuel, NO.2(FOR CHARCOAL CANISTER)
77740C Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
77740F Tube, Fuel, NO.1(FOR CHARCOAL CANISTER)
77740G Tube, Fuel, NO.2(FOR CHARCOAL CANISTER)
77752 Bracket, Charcoal Canister Support
77759 Hose, Charcoal Canister
77791 Hose, Outer Vent Valve TO Carburetor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
