Toyota Corona

1973-08 → 1978-08 · chassis RT10#,11# · catalogue 261430 · United States

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

15 part groups · 3 illustrations

Illustrations

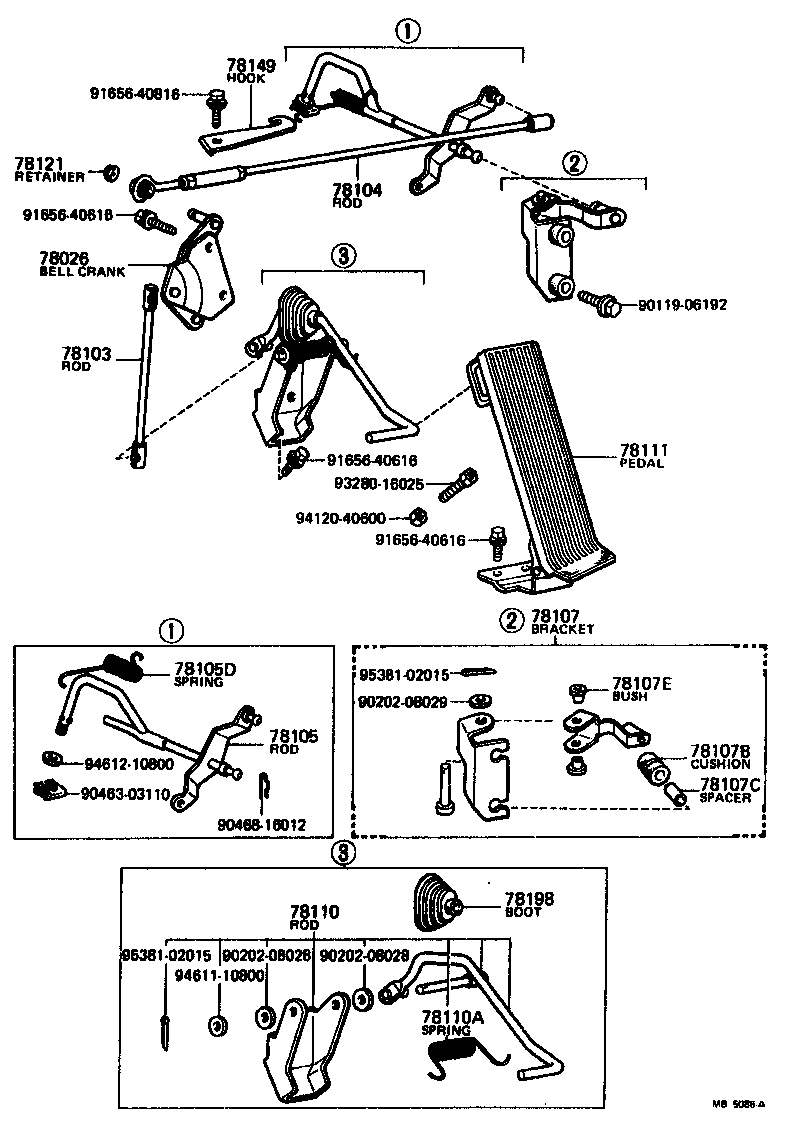

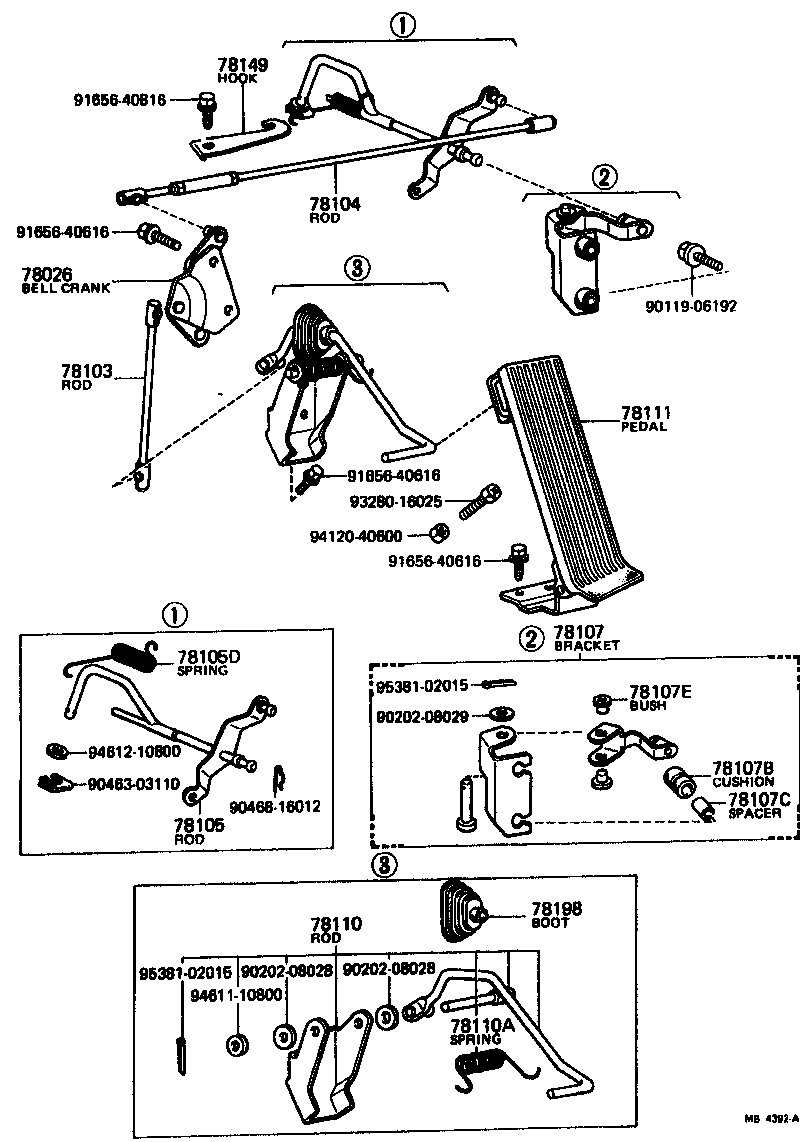

Figure MB3687B MB3687B 1973-08 → 1974-08 Figure MB4392A MB4392A 1974-08 → 1975-09 Figure MB5086A MB5086A 1975-09 → 1978-08

Part groups

PNCDescription
78026 Bellcrank Sub-assy, Accelerator, NO.2
78103 Rod Sub-assy, Accelerator Connecting, NO.1
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78105 Rod Sub-assy, Accelerator Connecting, NO.3
78105D Spring (FOR ACCELERATOR TORQUE ROD)
78107 Bracket Sub-assy, Accelerator Torque Rod
78107B Cushion (FOR ACCELERATOR TORQUE ROD BRACKET)
78107C Spacer (FOR ACCELERATOR TORQUE ROD BRACKET)
78107E Bush (FOR ACCELERATOR TORQUE ROD BRACKET)
78110 Rod Assy, Accelerator Pedal
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78111 Pedal, Accelerator
78121 Retainer, Spring (FOR ACCELERATOR LINK ROD)
78149 Hook, Accelerator Torque Rod Spring
78198 Boot, Accelerator Connecting Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
