Toyota Corona

1973-08 → 1978-08 · chassis RT10#,11# · catalogue 261430 · United States

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear License Plate Lamp

6 part groups · 2 illustrations

Illustrations

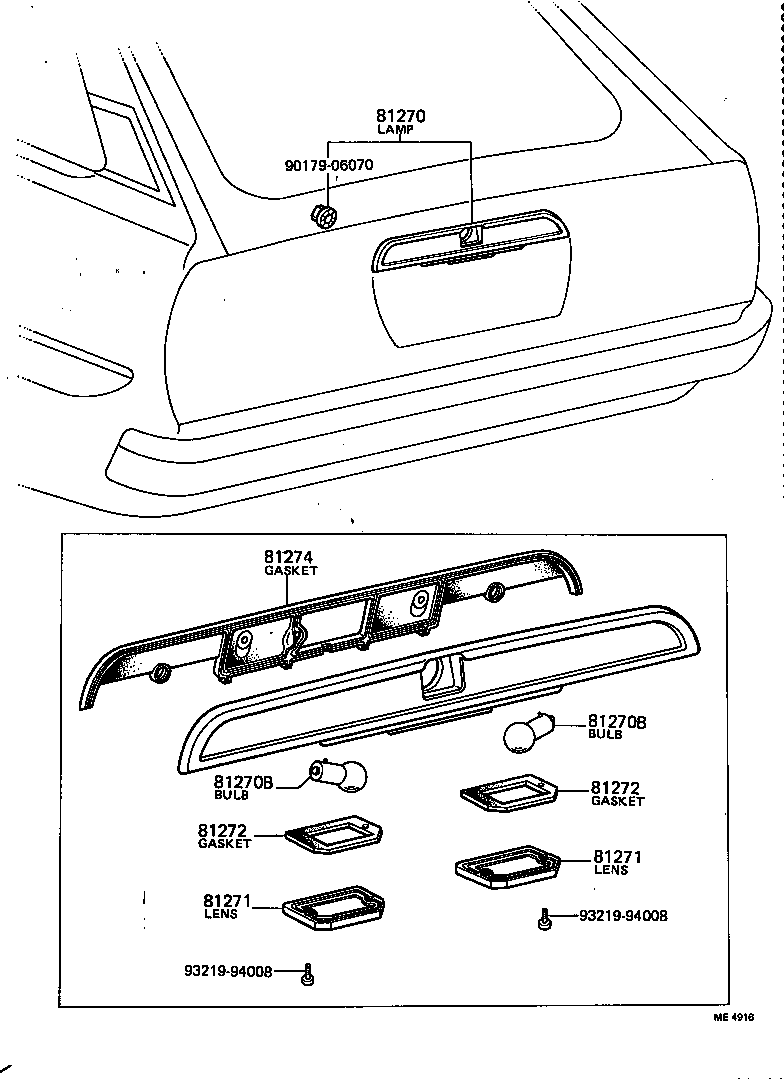

Figure ME4915 ME4915 1973-08 → 1978-08 Figure ME4916 ME4916 1973-08 → 1978-08

Part groups

PNCDescription
81270 Lamp Assy, License Plate
81270B Bulb (FOR LICENSE PLATE LAMP)
81271 Lens, License Plate Lamp
81272 Gasket, License Plate Lamp Lens
81274 Gasket, License Plate Lamp Body
81278 Cover, License Plate Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
