Toyota Corona

1973-08 → 1978-08 · chassis RT10#,11# · catalogue 261430 · United States

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

30 part groups · 12 illustrations

Illustrations

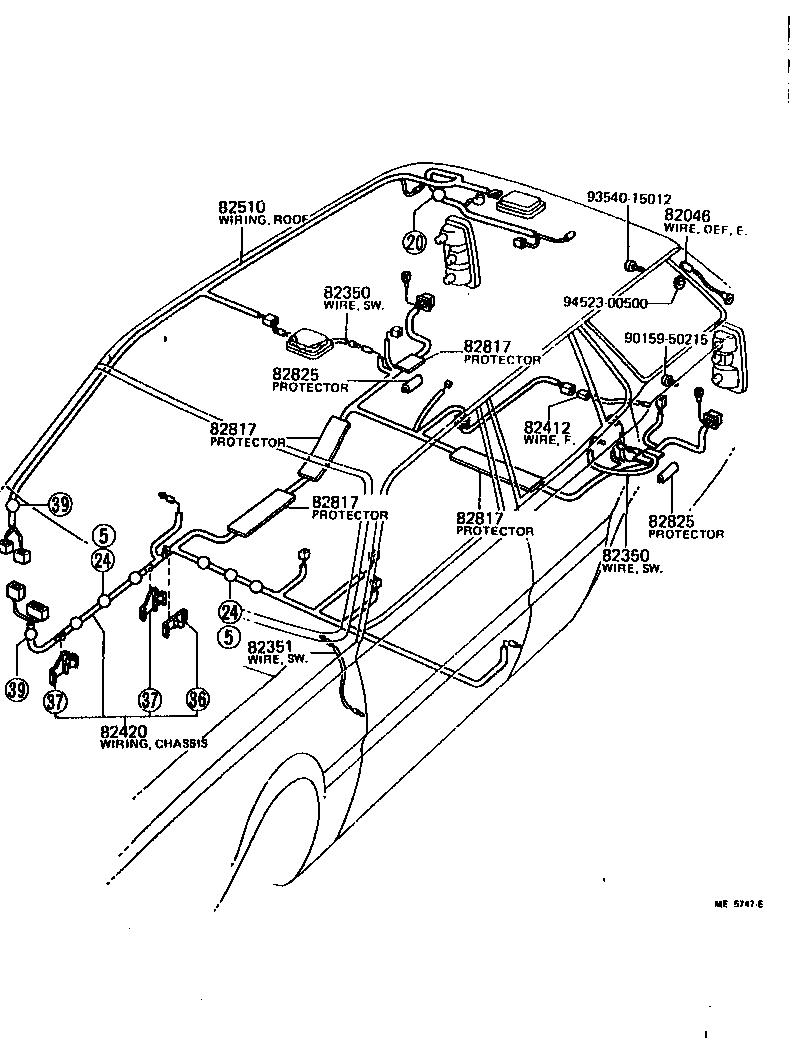

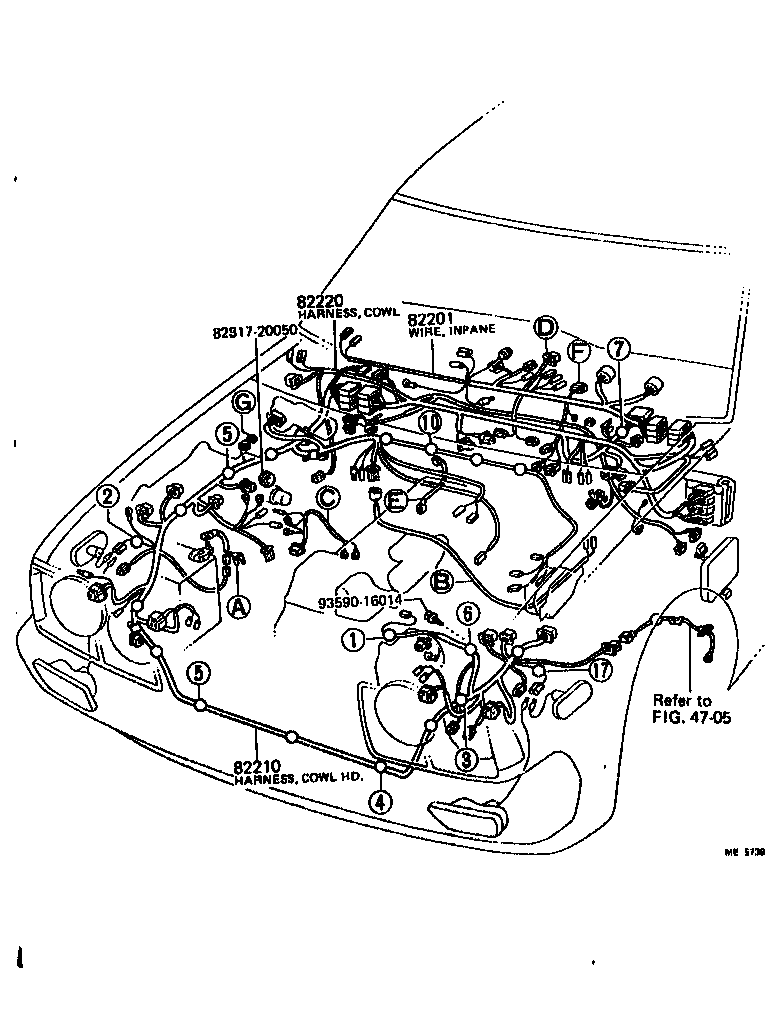

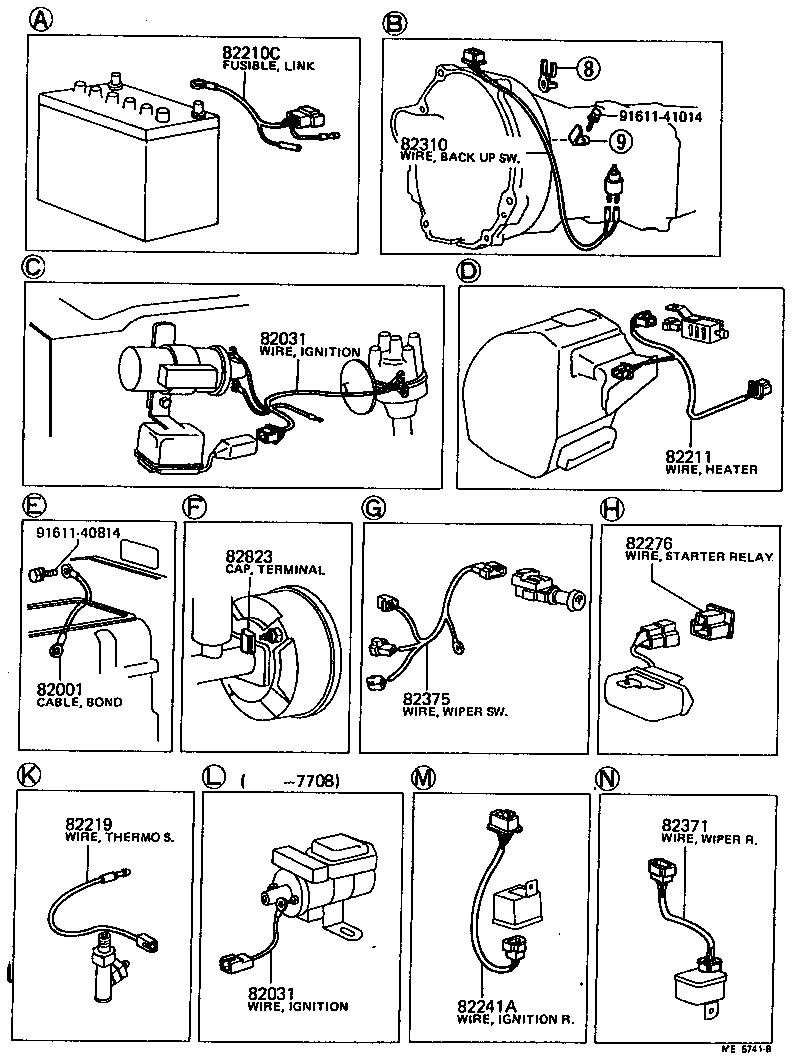

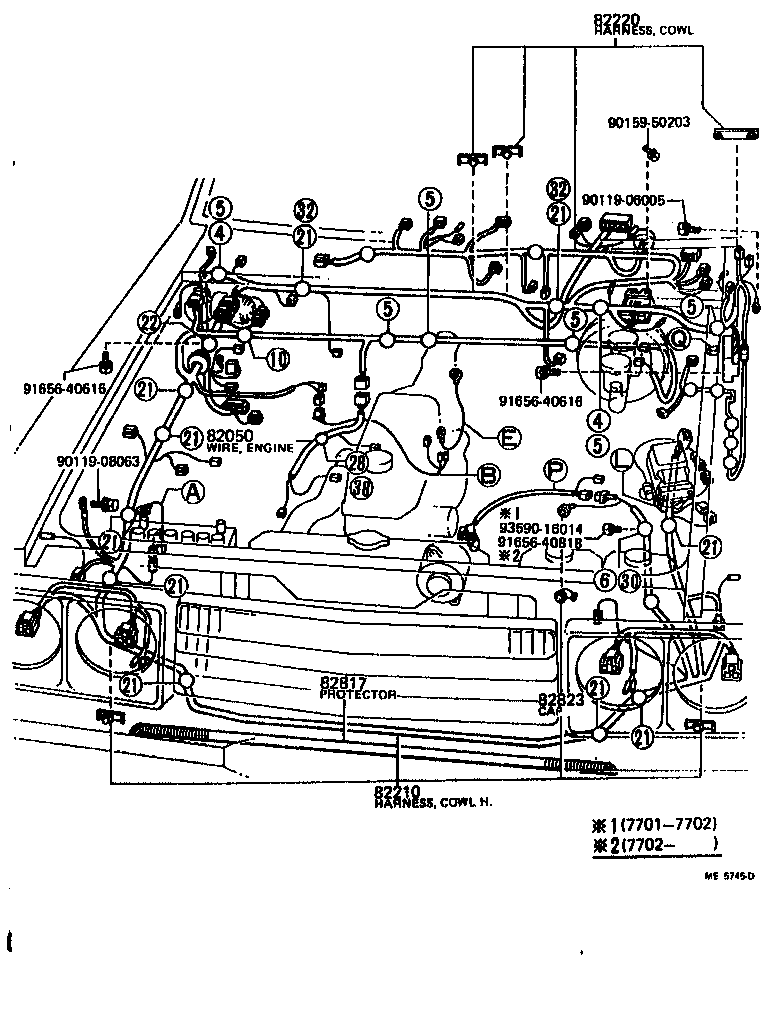

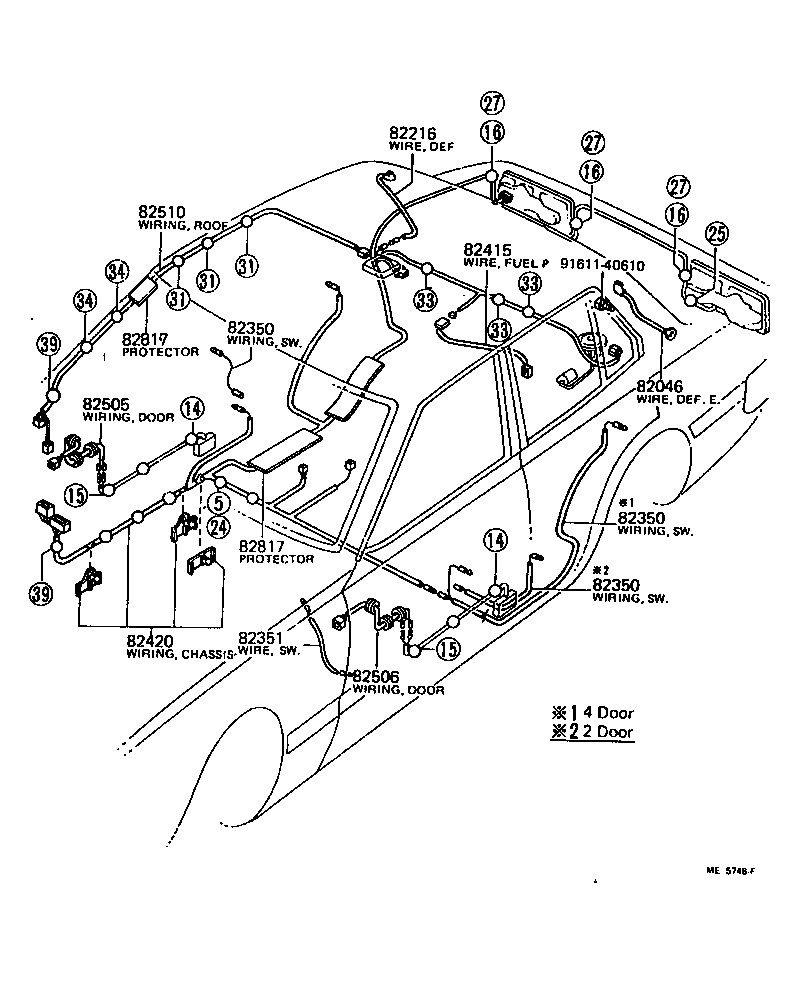

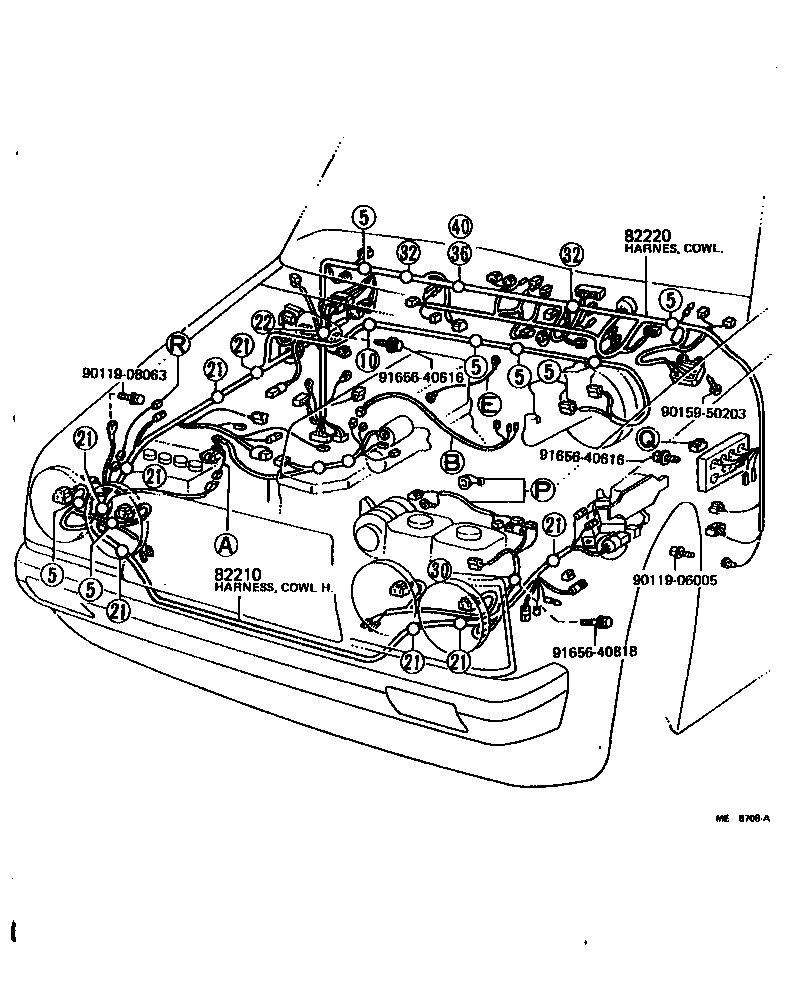

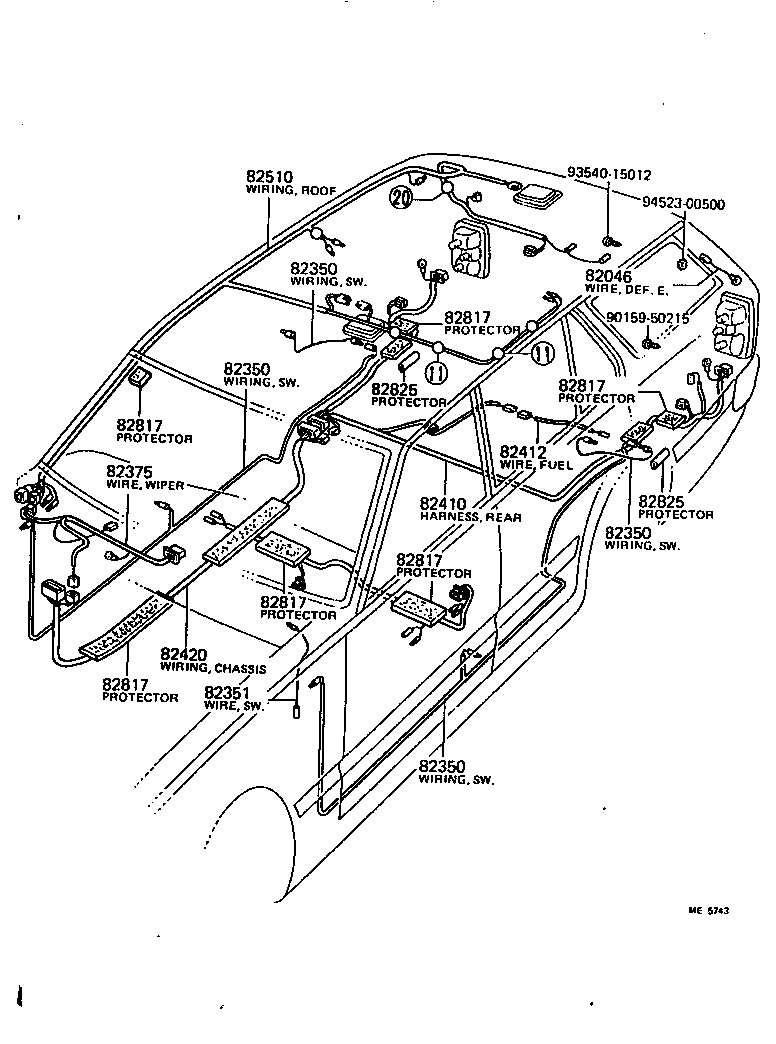

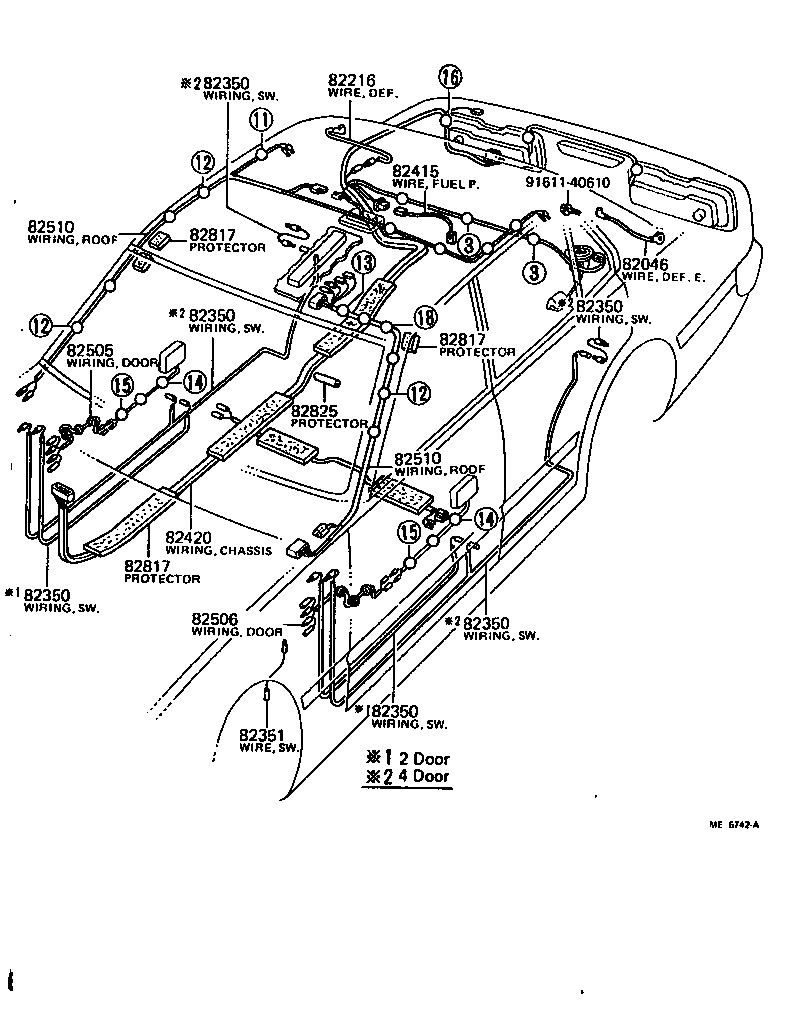

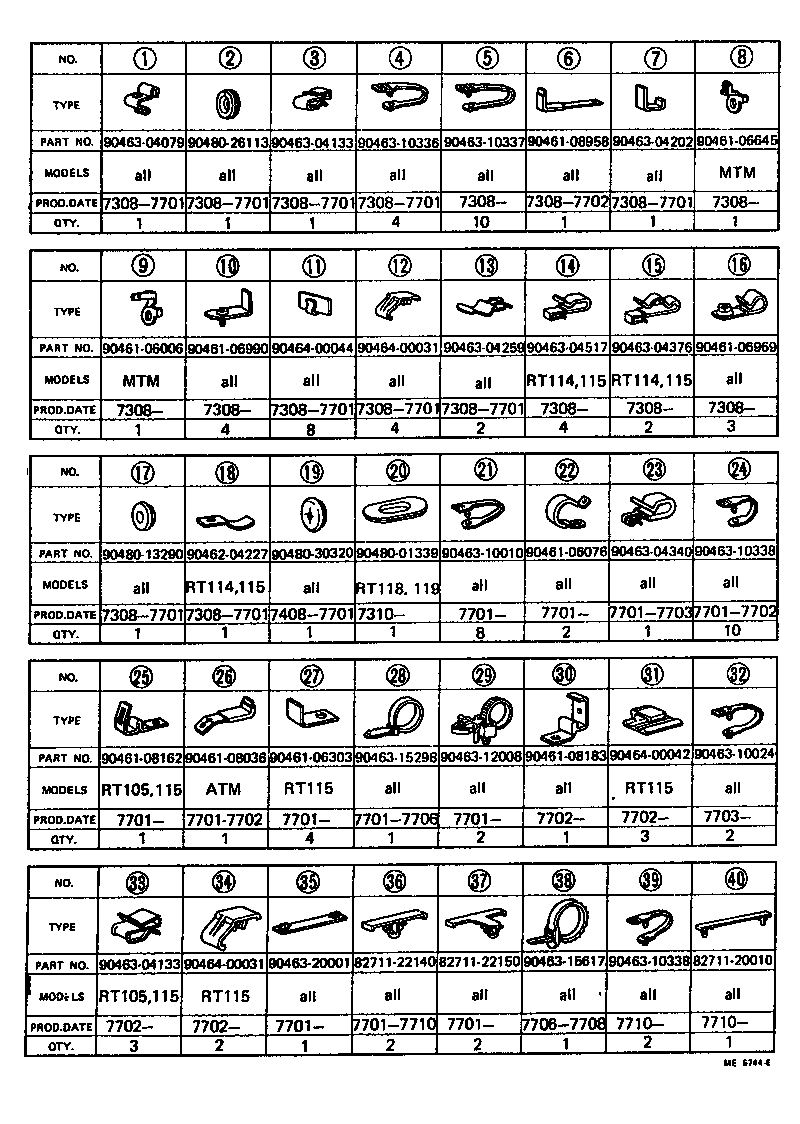

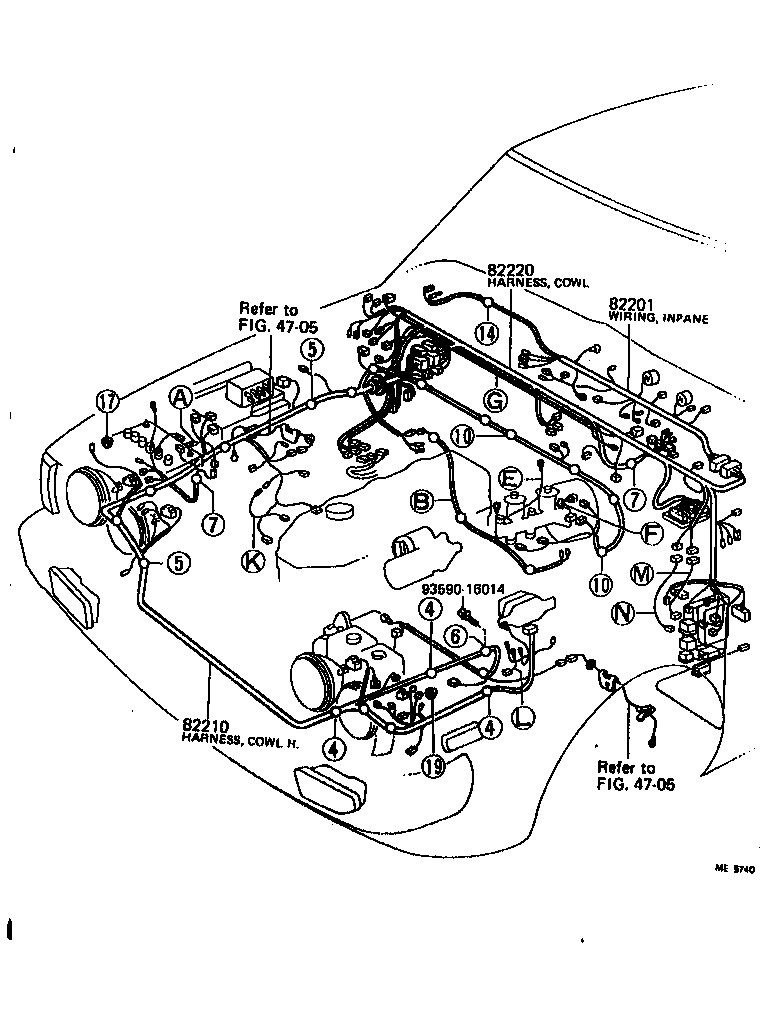

Figure ME5738A ME5738A 1973-08 → 1974-01 Figure ME5739 ME5739 1974-01 → 1974-08 Figure ME5740 ME5740 1974-08 → 1977-01 Figure ME5745D ME5745D 1977-01 → 1977-08 Figure ME6708A ME6708A 1977-08 → 1978-08 Figure ME5741B ME5741B 1973-08 → 1978-08 Figure ME6645 ME6645 1977-08 → 1978-08 Figure ME5742A ME5742A 1973-08 → 1977-01 Figure ME5746F ME5746F 1977-01 → 1978-08 Figure ME5743 ME5743 1973-08 → 1977-01 Figure ME5747E ME5747E 1977-01 → 1978-08 Figure ME5744E ME5744E 1973-08 → 1978-08

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82031 Wire Sub-assy, Ignition Coil
82046 Wire Sub-assy, Rear Window Defogger Earth
82050 Wire Assy, Engine
82201 Wiring Sub-assy, Instrument Panel
82203 Wire Sub-assy, Alternator
82210 Harness Assy, Wiring Cowl TO Headlamp, NO.1
82210C Fusible Link
82211 Wire, Heater Blower Fan Switch
82216 Wire, Rear Window Defogger
82219 Wire, Thermo Sensor
82220 Harness Assy, Wiring Cowl
82223 Wire, Switch
82241A Wire, Lining Wear Relay
82276 Wire, Starter Relay
82310 Wiring Assy, TO Back UP Lamp Switch
82350 Wiring Assy, Courtesy Lamp Switch (FOR FR OR RR DOOR)
82351 Wire, Courtesy Lamp Switch (FOR STEERING UNLOCK WARNING)
82371 Wire, Wiper Relay
82375 Wire, Wiper Switch
82410 Harness Assy, Wiring TO Rear Lamp
82412 Wire, Fuel Gage
82415 Wire, Fuel Pump
82420 Wiring Assy, Chassis
82505 Wiring Sub-assy, Front Door, RH
82506 Wiring Sub-assy, Front Door, LH
82510 Wiring Assy, Roof
82817 Protector, Wiring Harness, NO.1
82823 Cap, Terminal, NO.1
82825 Protector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
