Toyota Corona
1973-08 → 1978-08 · chassis RT10#,11# · catalogue 261430 · United States
Discontinued model
Data version 1985-04
Indicator

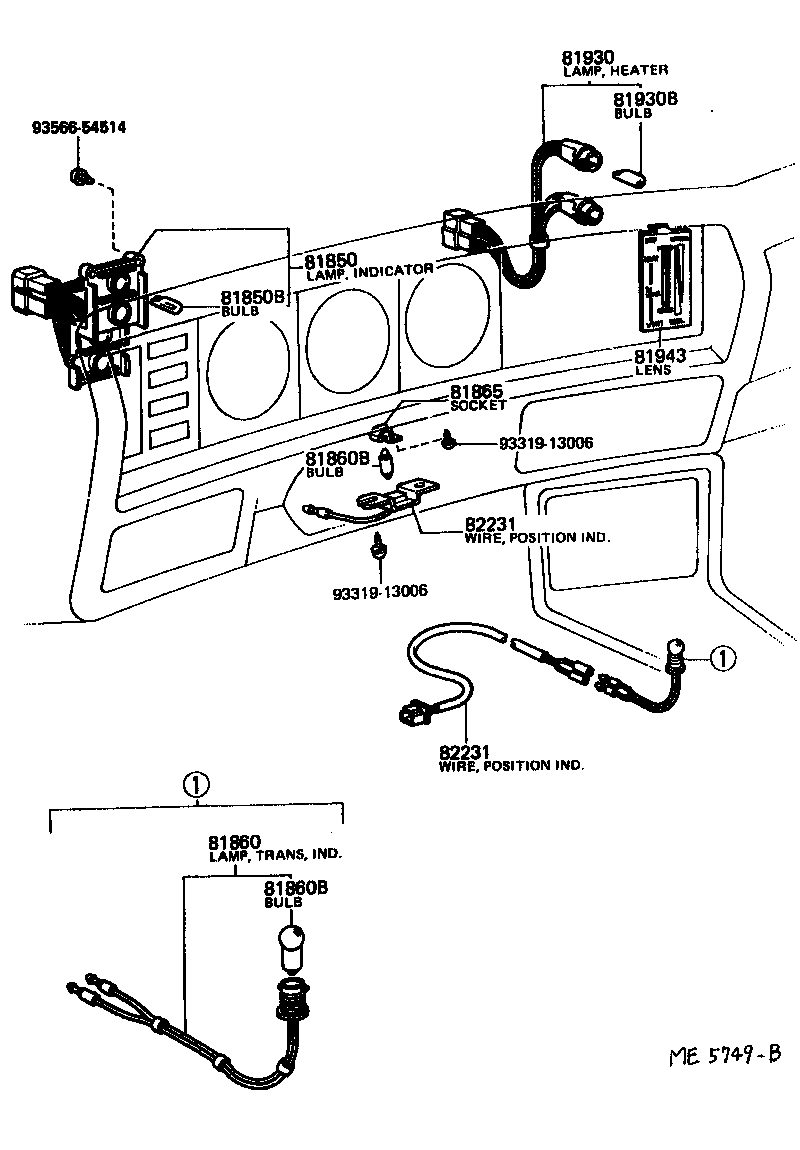

13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81825 | Panel Assy, Condition Indicator |
| 81825B | Bulb, Condition Indicator Panel |
| 81850 | Lamp Assy, Indicator |
| 81850B | Bulb, Indicator Lamp |
| 81855 | Lamp Assy, Indicator (FOR OK MONITER) |
| 81855B | Bulb, Indicator Lamp (FOR OK MONITER) |
| 81860 | Lamp Assy, Transmission Indicator |
| 81860B | Bulb, Transmission Indicator Lamp |
| 81865 | Socket And Wire, Transmission Indicator Lamp |
| 81930 | Lamp Assy, Heater Control Indicator, NO.1 |
| 81930B | Bulb, Heater Control Indicator Lamp |
| 81943 | Lens, Heater Control Indicator |
| 82231 | Wire, Position Indicator Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
