Toyota Corona

1973-08 → 1978-08 · chassis RT10#,11# · catalogue 261430 · United States

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

17 part groups · 5 illustrations

Illustrations

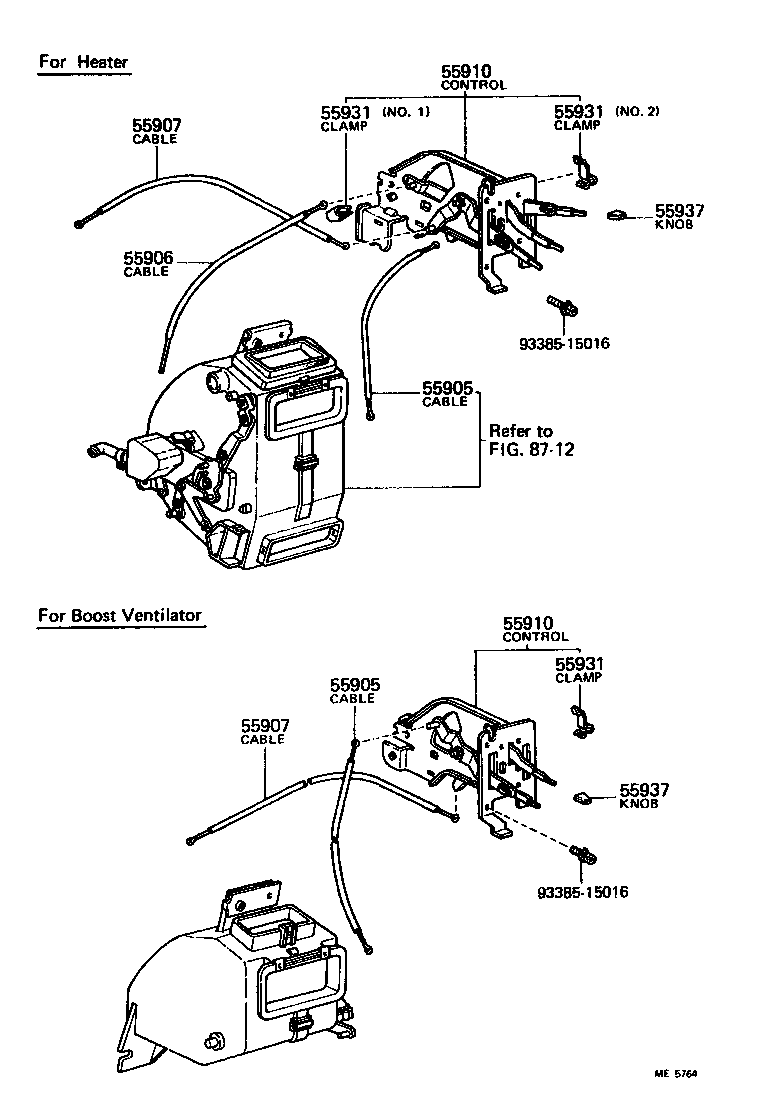

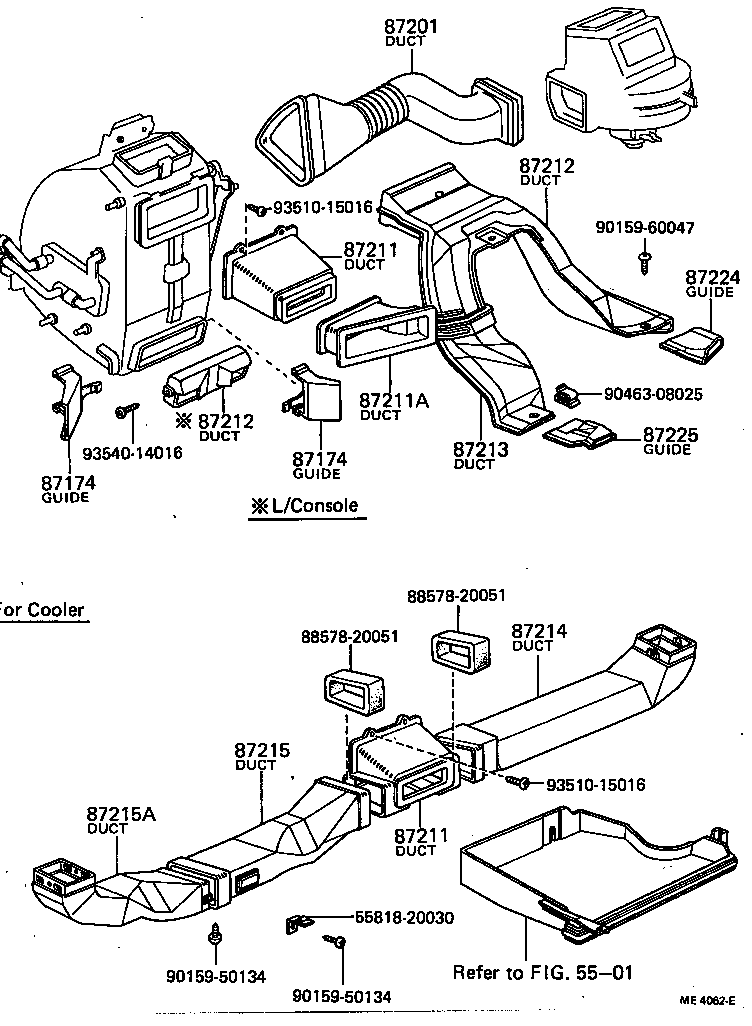

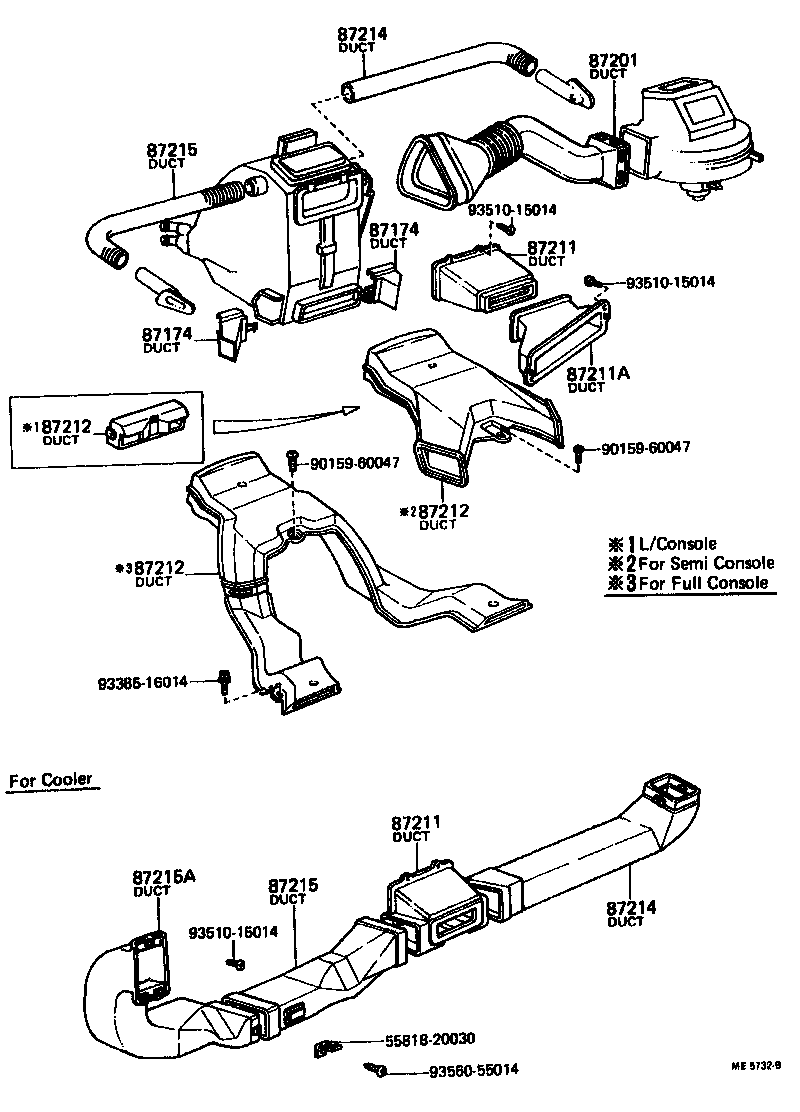

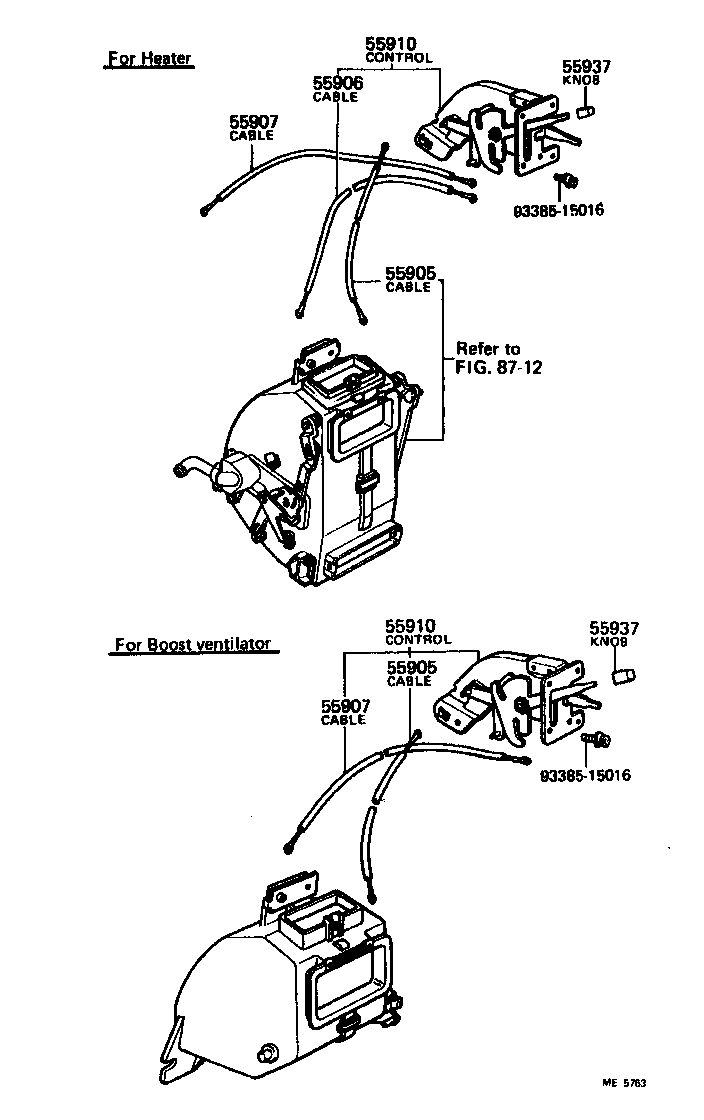

Figure ME5060A ME5060A 1973-08 → 1974-08 Figure ME5763 ME5763 1974-08 → 1977-01 Figure ME5764 ME5764 1977-01 → 1978-08 Figure ME4062E ME4062E 1973-08 → 1977-01 Figure ME5732B ME5732B 1977-01 → 1978-08

Part groups

PNCDescription
55905 Cable Sub-assy, Defrost Control
55906 Cable Sub-assy, Heater Control
55907 Cable Sub-assy, Heater Air Inlet Butterfly
55910 Control Assy, Heater OR Boost Ventilator
55931 Clamp, Heater Control Wire
55937 Knob, Heater Control Lever
87174 Guide, Air Duct
87201 Duct Sub-assy, Air, NO.1
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87214 Duct, Air, Side NO.1 RH
87215 Duct, Air, Side NO.1 LH
87215A Duct, Air, Side NO.2 LH
87224 Guide, Air Duct, RH
87225 Guide, Air Duct, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
