Toyota Corona
1978-09 → 1981-12 · chassis RT13# · catalogue 261440 · United States
Discontinued model
Data version 1985-06

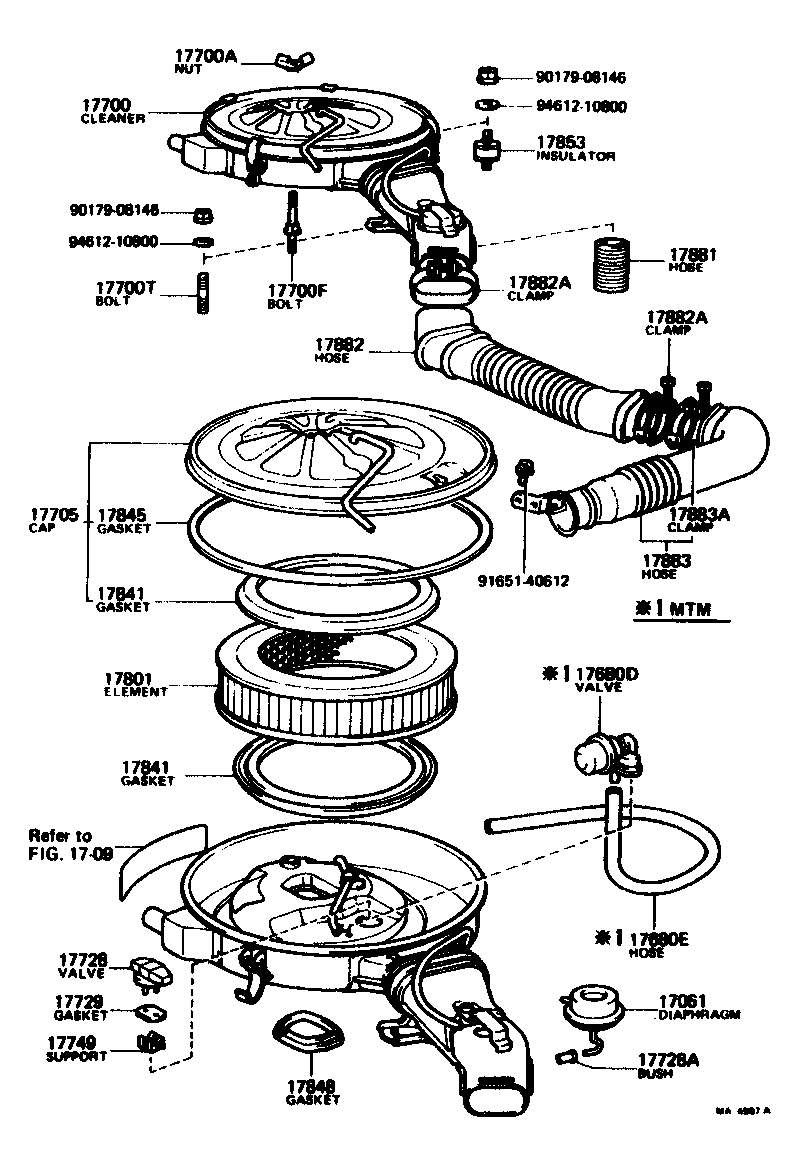

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17061 — Diaphragm Sub-assy | ||||
| 17061-13010 |
Diaphragm Sub-assy
1979-08 → 1980-08
ended
|
20R RT134 | — | |
| 17061-37010 |
Diaphragm Sub-assy
1980-08 → 1981-12
ended
|
22R RT135 | — | |
| 17680D — Valve Assy, Mixture Control | ||||
| 17680-35010 |
Valve Assy, Mixture Control
1980-08 → 1981-12
ended
|
22R RT135 5F USA | — | |
| 17680E — Hose, Air(FOR MIXTURE CONTROL VALVE) | ||||
| 17346-35010 |
Hose, Air(FOR MIXTURE CONTROL VALVE)
1980-08 → 1981-12
ended
|
22R RT135 5F USA | — | |
| 17700 — Cleaner Assy, Air | ||||
| 17700-35040 |
Cleaner Assy, Air
1980-08 → 1981-08
ended
|
22R RT135 5F USA | — | |
| 17700-35050 |
Cleaner Assy, Air
1980-08 → 1981-08
ended
|
22R RT135 4FC USA | — | |
| 17700-35060 |
Cleaner Assy, Air
1980-08 → 1981-08
ended
|
22R RT135 CND | — | |
| 17700-35080 |
Cleaner Assy, Air
1981-08 → 1981-12
ended
|
22R RT135 5F USA | — | |
| 17700-35090 |
Cleaner Assy, Air
1981-08 → 1981-12
ended
|
22R RT135 4FC USA | — | |
| 17700-35100 |
Cleaner Assy, Air
1981-08 → 1981-12
ended
|
22R RT135 CND | — | |
| 17700-38090 |
Cleaner Assy, Air
1978-09 → 1979-08
ended
|
20R RT134 | — | |
| 17700-38091 |
Cleaner Assy, Air
1979-08 → 1980-08
ended
|
20R RT134 | — | |
| 17700A — Nut, Wing(FOR AIR CLEANER) | ||||
| 90175-06003 |
Nut, Wing(FOR AIR CLEANER)
1978-09 → 1981-12
ended
|
20R,22R RT13# | — | |
| 17700F — Bolt, Stud(FOR AIR CLEANER SETTING) | ||||
| 90116-06020 note |
Bolt, Stud(FOR AIR CLEANER SETTING)
1980-08 → 1981-12
ended
|
22R RT135 | — | |
| 90116-06280 note |
Bolt, Stud(FOR AIR CLEANER SETTING)
1978-09 → 1980-08
ended
|
20R RT134 | — | |
| 17700T — Bolt, Stud(FOR AIR CLEANER) | ||||
| 90116-08033 note |
Bolt, Stud(FOR AIR CLEANER)
1978-09 → 1981-12
ended
|
20R,22R RT13# | — | |
| 17705 — Cap Sub-assy, Air Cleaner | ||||
| 17705-35030 |
Cap Sub-assy, Air Cleaner
1980-08 → 1981-08
ended
|
22R RT135 USA | — | |
| 17705-35040 |
Cap Sub-assy, Air Cleaner
1980-08 → 1981-08
ended
|
22R RT135 CND | — | |
| 17705-35060 |
Cap Sub-assy, Air Cleaner
1981-08 → 1981-12
ended
|
22R RT135 USA | — | |
| 17705-35070 |
Cap Sub-assy, Air Cleaner
1981-08 → 1981-12
ended
|
22R RT135 CND | — | |
| 17705-38020 |
Cap Sub-assy, Air Cleaner
1978-09 → 1979-08
ended
|
20R RT134 | — | |
| 17705-38060 |
Cap Sub-assy, Air Cleaner
1979-08 → 1980-08
ended
|
20R RT134 | — | |
| 17728 — Valve, Thermostatic | ||||
| 17728-24010 |
Valve, Thermostatic
1979-08 → 1981-12
ended
|
20R,22R RT13# | — | |
| 17728A — Bush | ||||
| 90386-03001 |
Bush
1979-08 → 1981-12
ended
|
20R,22R RT13# | — | |
| 17729 — Gasket, Thermostat Valve | ||||
| 17729-34010 |
Gasket, Thermostat Valve
1979-08 → 1981-12
ended
|
20R,22R RT13# | — | |
| 17749 — Support, Thermostat Valve | ||||
| 17749-34010 |
Support, Thermostat Valve
1979-08 → 1981-12
ended
|
20R,22R RT13# | — | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-41090 |
Element Sub-assy, Air Cleaner Filter
1978-09 → 1981-12
ended
|
20R,22R RT13# | — | |
| 17841 — Gasket, Filter Element | ||||
| 17841-41050 |
Gasket, Filter Element
1978-09 → 1981-12
ended
|
20R,22R RT13# | — | |
| 17845 — Gasket, Air Cleaner Cap | ||||
| 17845-35010 |
Gasket, Air Cleaner Cap
1980-08 → 1981-12
ended
|
22R RT135 | — | |
| 17845-38011 |
Gasket, Air Cleaner Cap
1978-09 → 1980-08
ended
|
20R RT134 | — | |
| 17848 — Gasket, Air Cleaner TO Carburetor | ||||
| 17848-35010 |
Gasket, Air Cleaner TO Carburetor
1980-08 → 1981-12
ended
|
22R RT135 | — | |
| 90430-72003 |
Gasket, Air Cleaner TO Carburetor
1978-09 → 1980-08
ended
|
20R RT134 | — | |
| 17853 — Insulator, Air Cleaner Bracket | ||||
| 17853-38010 |
Insulator, Air Cleaner Bracket
1978-09 → 1981-12
ended
|
20R,22R RT13# | — | |
| 17881 — Hose, Air Cleaner, NO.1 | ||||
| 17881-26010 |
Hose, Air Cleaner, NO.1
1978-09 → 1980-08
ended
|
20R RT134 | — | |
| 17881-37030 |
Hose, Air Cleaner, NO.1
1980-08 → 1981-12
ended
|
22R RT135 | — | |
| 17882 — Hose, Air Cleaner, NO.2 | ||||
| 17882-38050 |
Hose, Air Cleaner, NO.2
1978-09 → 1980-08
ended
|
20R RT134 | — | |
| 17882-38051 |
Hose, Air Cleaner, NO.2
1980-08 → 1981-12
ended
|
22R RT135 | — | |
| 17882A — Clamp(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01003 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1978-09 → 1980-08
ended
|
20R RT134 | — | |
| 90460-01015 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-08 → 1981-12
ended
|
22R RT135 | — | |
| 90460-01016 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-08 → 1981-12
ended
|
22R RT135 | — | |
| 90460-58004 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1979-01 → 1980-08
ended
|
20R RT134 | — | |
| 90460-58013 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1978-09 → 1979-01
ended
|
20R RT134 | — | |
| 17883 — Hose, Air Cleaner, NO.3 | ||||
| 53299-20030 |
Hose, Air Cleaner, NO.3
1978-09 → 1980-08
ended
|
20R RT134 | — | |
| 53299-20040 |
Hose, Air Cleaner, NO.3
1980-08 → 1981-12
ended
|
22R RT135 | — | |
| 17883A — Clamp(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-01015 |
Clamp(FOR AIR CLEANER HOSE, NO.3)
1980-08 → 1981-12
ended
|
22R RT135 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
