Toyota Corona

1978-09 → 1981-12 · chassis RT13# · catalogue 261440 · United States

Discontinued model Data version 1985-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

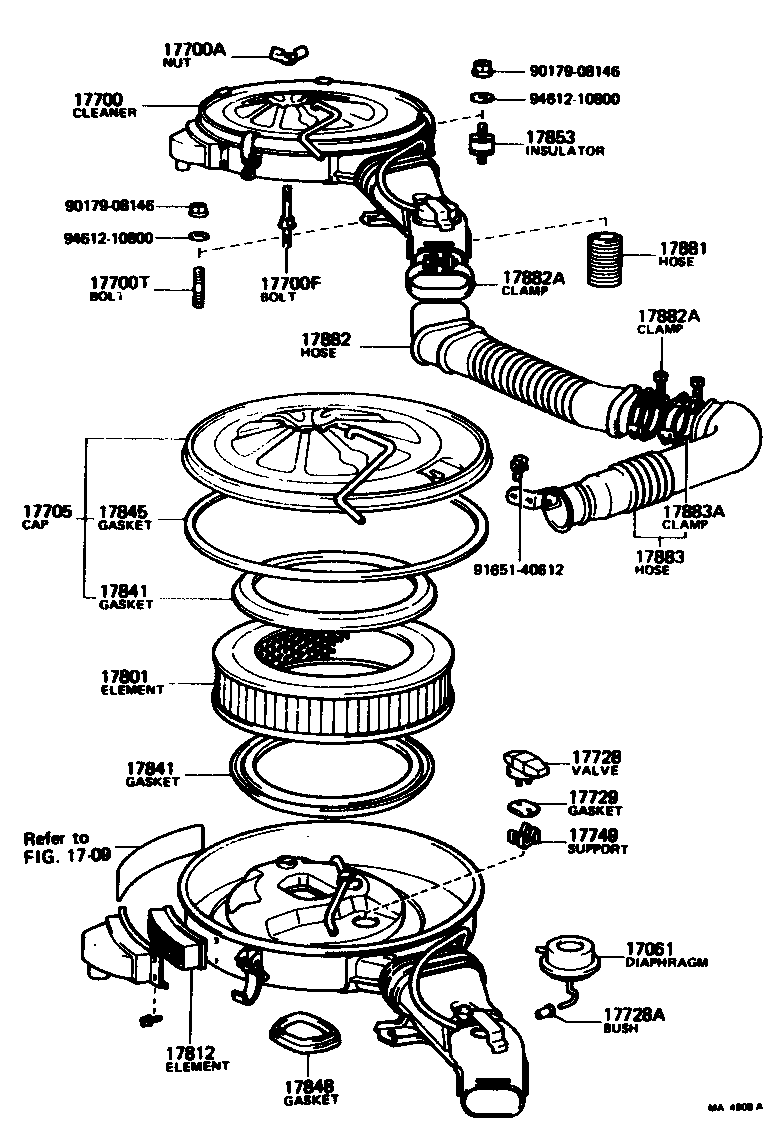

Exploded illustration MA4908A 17700A — NUT, WING(FOR AIR CLEANER) (1 parts) 9017908146 — not listed in this catalogue 17700 — CLEANER ASSY, AIR (8 parts) 9461210800 — not listed in this catalogue 17853 — INSULATOR, AIR CLEANER BRACKET (1 parts) 9017908146 — not listed in this catalogue 9461210800 — not listed in this catalogue 17881 — HOSE, AIR CLEANER, NO.1 (2 parts) 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (5 parts) 17700T — BOLT, STUD(FOR AIR CLEANER) (1 parts) 17700F — BOLT, STUD(FOR AIR CLEANER SETTING) (2 parts) 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (5 parts) 17882 — HOSE, AIR CLEANER, NO.2 (2 parts) 17705 — CAP SUB-ASSY, AIR CLEANER (6 parts) 17883A — CLAMP(FOR AIR CLEANER HOSE, NO.3) (1 parts) 17845 — GASKET, AIR CLEANER CAP (2 parts) 17883 — HOSE, AIR CLEANER, NO.3 (2 parts) 9165140612 — not listed in this catalogue 17841 — GASKET, FILTER ELEMENT (1 parts) 17801 — ELEMENT SUB-ASSY, AIR CLEANER FILTER (1 parts) 17728 — VALVE, THERMOSTATIC (1 parts) 17841 — GASKET, FILTER ELEMENT (1 parts) 17729 — GASKET, THERMOSTAT VALVE (1 parts) 17749 — SUPPORT, THERMOSTAT VALVE (1 parts) 1709 — not listed in this catalogue 17061 — DIAPHRAGM SUB-ASSY (2 parts) 17728A — BUSH (1 parts) 17812 — FILTER, AIR CLEANER, NO.2 (1 parts) 17848 — GASKET, AIR CLEANER TO CARBURETOR (2 parts)
MA4908A · 23 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
44 parts on this figure
Part number Description Fitment Price
17061 — Diaphragm Sub-assy
17061-13010 Diaphragm Sub-assy
1979-08 → 1980-08 ended
20R RT134 —
17061-37010 Diaphragm Sub-assy
1980-08 → 1981-12 ended
22R RT135 —
17700 — Cleaner Assy, Air
17700-35040 Cleaner Assy, Air
1980-08 → 1981-08 ended
22R RT135 5F USA —
17700-35050 Cleaner Assy, Air
1980-08 → 1981-08 ended
22R RT135 4FC USA —
17700-35060 Cleaner Assy, Air
1980-08 → 1981-08 ended
22R RT135 CND —
17700-35080 Cleaner Assy, Air
1981-08 → 1981-12 ended
22R RT135 5F USA —
17700-35090 Cleaner Assy, Air
1981-08 → 1981-12 ended
22R RT135 4FC USA —
17700-35100 Cleaner Assy, Air
1981-08 → 1981-12 ended
22R RT135 CND —
17700-38090 Cleaner Assy, Air
1978-09 → 1979-08 ended
20R RT134 —
17700-38091 Cleaner Assy, Air
1979-08 → 1980-08 ended
20R RT134 —
17700A — Nut, Wing(FOR AIR CLEANER)
90175-06003 Nut, Wing(FOR AIR CLEANER)
1978-09 → 1981-12 ended
20R,22R RT13# —
17700F — Bolt, Stud(FOR AIR CLEANER SETTING)
90116-06020 note Bolt, Stud(FOR AIR CLEANER SETTING)
1980-08 → 1981-12 ended
22R RT135 —
90116-06280 note Bolt, Stud(FOR AIR CLEANER SETTING)
1978-09 → 1980-08 ended
20R RT134 —
17700T — Bolt, Stud(FOR AIR CLEANER)
90116-08033 note Bolt, Stud(FOR AIR CLEANER)
1978-09 → 1981-12 ended
20R,22R RT13# —
17705 — Cap Sub-assy, Air Cleaner
17705-35030 Cap Sub-assy, Air Cleaner
1980-08 → 1981-08 ended
22R RT135 USA —
17705-35040 Cap Sub-assy, Air Cleaner
1980-08 → 1981-08 ended
22R RT135 CND —
17705-35060 Cap Sub-assy, Air Cleaner
1981-08 → 1981-12 ended
22R RT135 USA —
17705-35070 Cap Sub-assy, Air Cleaner
1981-08 → 1981-12 ended
22R RT135 CND —
17705-38020 Cap Sub-assy, Air Cleaner
1978-09 → 1979-08 ended
20R RT134 —
17705-38060 Cap Sub-assy, Air Cleaner
1979-08 → 1980-08 ended
20R RT134 —
17728 — Valve, Thermostatic
17728-24010 Valve, Thermostatic
1979-08 → 1981-12 ended
20R,22R RT13# —
17728A — Bush
90386-03001 Bush
1979-08 → 1981-12 ended
20R,22R RT13# —
17729 — Gasket, Thermostat Valve
17729-34010 Gasket, Thermostat Valve
1979-08 → 1981-12 ended
20R,22R RT13# —
17749 — Support, Thermostat Valve
17749-34010 Support, Thermostat Valve
1979-08 → 1981-12 ended
20R,22R RT13# —
17801 — Element Sub-assy, Air Cleaner Filter
17801-41090 Element Sub-assy, Air Cleaner Filter
1978-09 → 1981-12 ended
20R,22R RT13# —
17812 — Filter, Air Cleaner, NO.2
17812-37010 Filter, Air Cleaner, NO.2
1980-08 → 1981-12 ended
22R RT135 CND —
17841 — Gasket, Filter Element
17841-41050 Gasket, Filter Element
1978-09 → 1981-12 ended
20R,22R RT13# —
17845 — Gasket, Air Cleaner Cap
17845-35010 Gasket, Air Cleaner Cap
1980-08 → 1981-12 ended
22R RT135 —
17845-38011 Gasket, Air Cleaner Cap
1978-09 → 1980-08 ended
20R RT134 —
17848 — Gasket, Air Cleaner TO Carburetor
17848-35010 Gasket, Air Cleaner TO Carburetor
1980-08 → 1981-12 ended
22R RT135 —
90430-72003 Gasket, Air Cleaner TO Carburetor
1978-09 → 1980-08 ended
20R RT134 —
17853 — Insulator, Air Cleaner Bracket
17853-38010 Insulator, Air Cleaner Bracket
1978-09 → 1981-12 ended
20R,22R RT13# —
17881 — Hose, Air Cleaner, NO.1
17881-26010 Hose, Air Cleaner, NO.1
1978-09 → 1980-08 ended
20R RT134 —
17881-37030 Hose, Air Cleaner, NO.1
1980-08 → 1981-12 ended
22R RT135 —
17882 — Hose, Air Cleaner, NO.2
17882-38050 Hose, Air Cleaner, NO.2
1978-09 → 1980-08 ended
20R RT134 —
17882-38051 Hose, Air Cleaner, NO.2
1980-08 → 1981-12 ended
22R RT135 —
17882A — Clamp(FOR AIR CLEANER HOSE, NO.2)
90460-01003 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1978-09 → 1980-08 ended
20R RT134 —
90460-01015 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-08 → 1981-12 ended
22R RT135 —
90460-01016 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-08 → 1981-12 ended
22R RT135 —
90460-58004 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1979-01 → 1980-08 ended
20R RT134 —
90460-58013 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1978-09 → 1979-01 ended
20R RT134 —
17883 — Hose, Air Cleaner, NO.3
53299-20030 Hose, Air Cleaner, NO.3
1978-09 → 1980-08 ended
20R RT134 —
53299-20040 Hose, Air Cleaner, NO.3
1980-08 → 1981-12 ended
22R RT135 —
17883A — Clamp(FOR AIR CLEANER HOSE, NO.3)
90460-01015 Clamp(FOR AIR CLEANER HOSE, NO.3)
1980-08 → 1981-12 ended
22R RT135 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
