Toyota Corona
1978-09 → 1981-12 · chassis RT13# · catalogue 261440 · United States
Discontinued model
Data version 1985-06

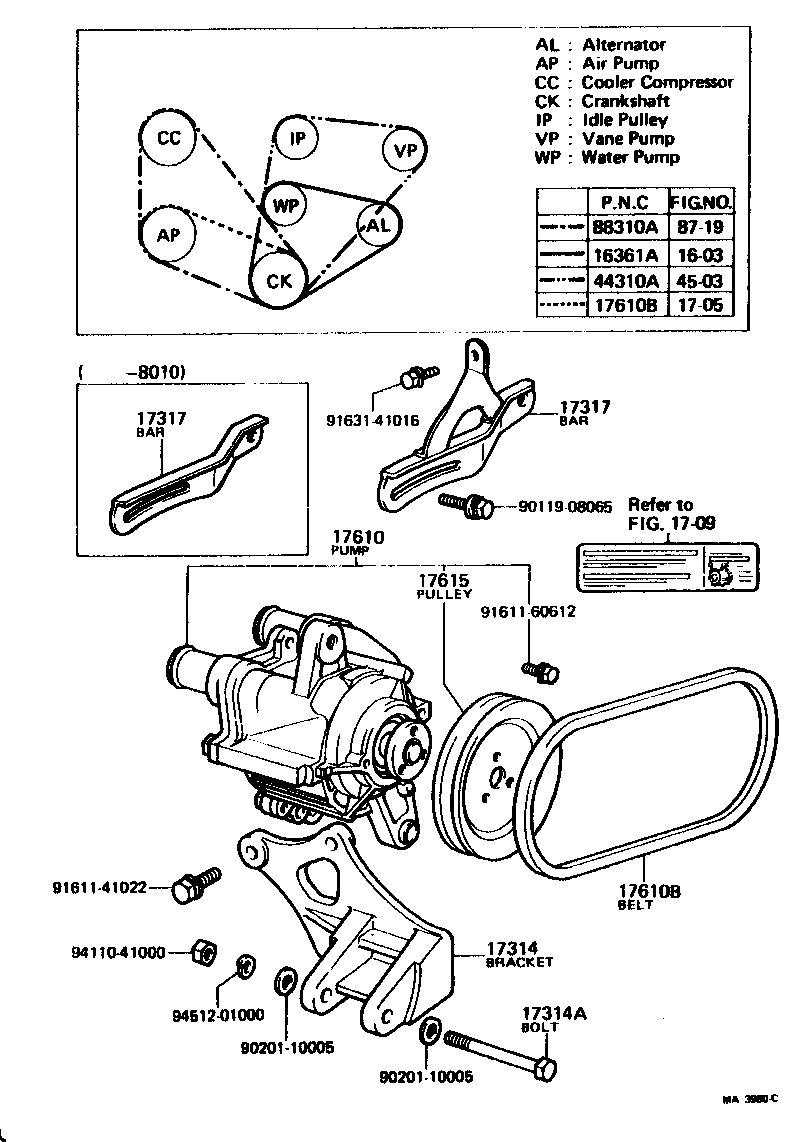

Air Pump
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17314 | Bracket, Air Pump |
| 17314A | Bolt, Hexagon(FOR AIR PUMP BRACKET SETTING) |
| 17317 | Bar, Air Pump Adjusting, NO.1 |
| 17610 | Pump Assy, Air |
| 17615 | Pulley(FOR AIR PUMP) |
| 17622 | Outlet, Air Pump |
| 17626 | Gasket, Air Pump Outlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
