Toyota Corona
1978-09 → 1981-12 · chassis RT13# · catalogue 261440 · United States
Discontinued model
Data version 1985-06

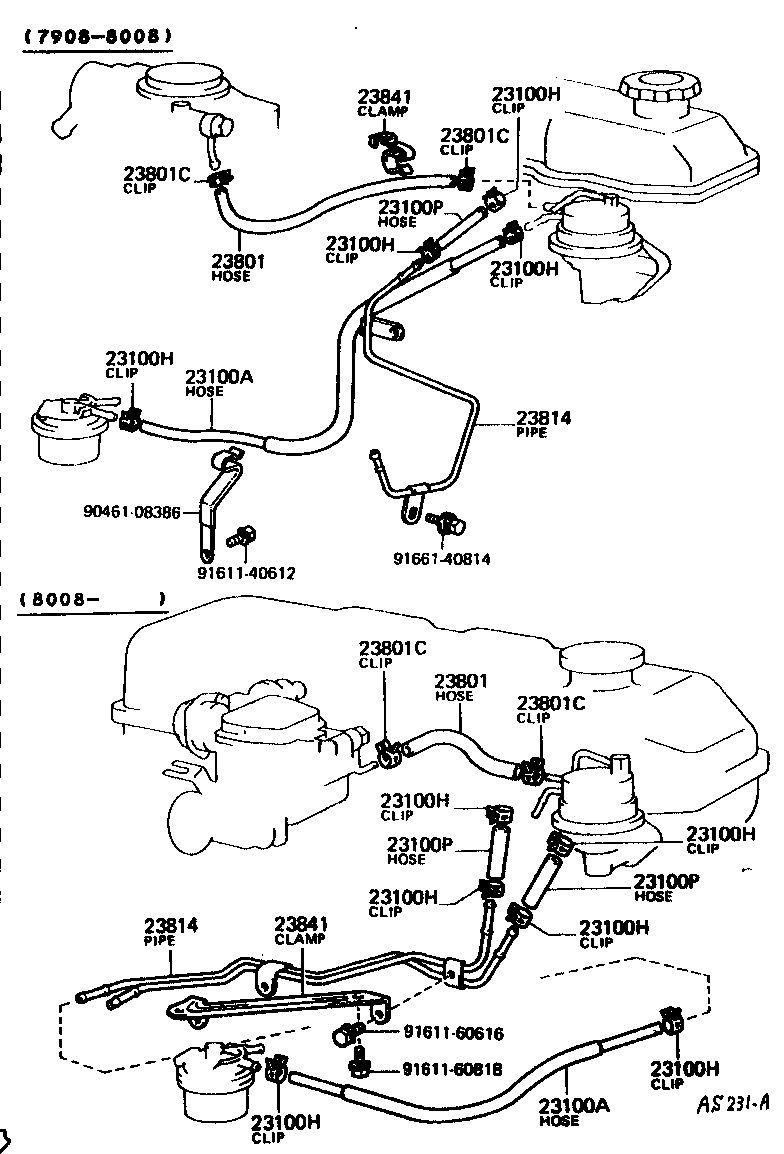

Fuel Pipe & Clamp
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 23100A | Hose, Fuel |
| 23100H | Clip(FOR FUEL HOSE) |
| 23100P | Hose(FOR FUEL PUMP TO FUEL TUBE) |
| 23801 | Pipe OR Hose Sub-assy, Carburetor Fuel, NO.1 |
| 23801C | Clip(FOR CARBURETOR FUEL HOSE) |
| 23814 | Pipe, Fuel Delivery |
| 23841 | Clamp, Fuel Pipe(HOSE), NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
