Toyota Corona
1978-09 → 1981-12 · chassis RT13# · catalogue 261440 · United States
Discontinued model
Data version 1985-06

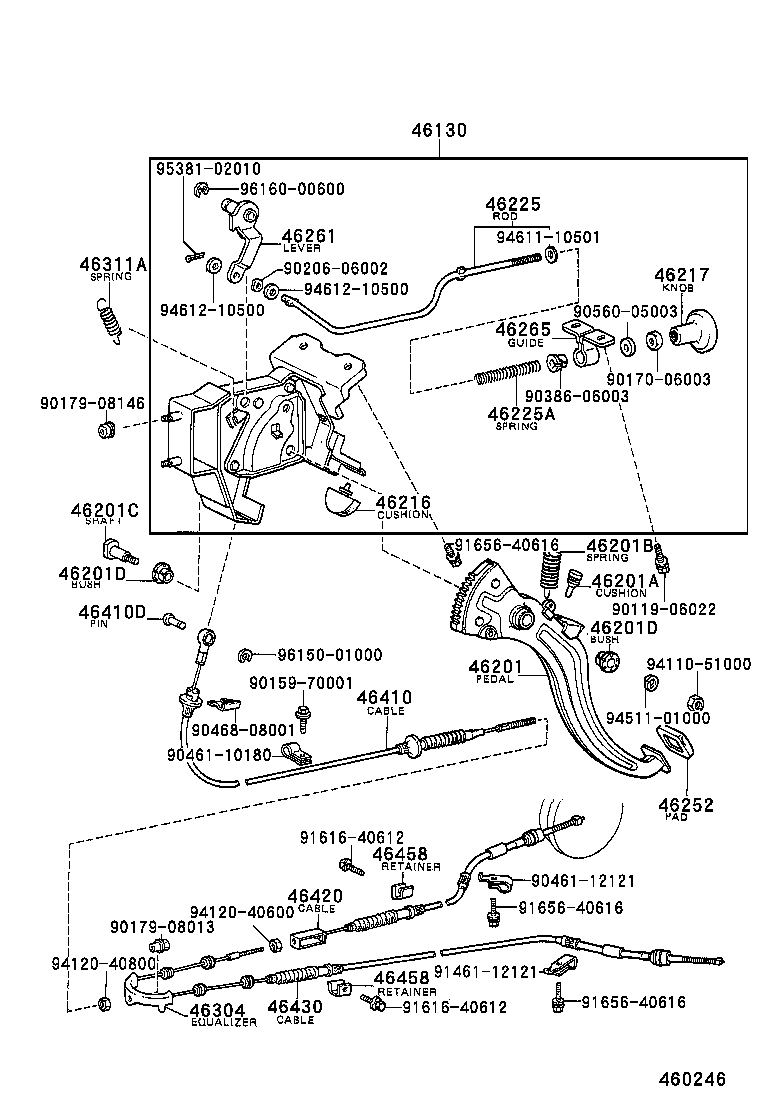

Parking Brake & Cable
27 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 46110 | Handle Assy, Parking Brake Control |
| 46110C | Pin(FOR PARKING BRAKE HANDLE SET) |
| 46130 | Bracket Assy, Parking Brake Pedal |
| 46201 | Pedal Sub-assy, Parking Brake |
| 46201A | Cushion(FOR PARKING BRAKE PEDAL) |
| 46201B | Spring, Tension |
| 46201C | Shaft, Pedal |
| 46201D | Bush(FOR PARKING BRAKE PEDAL) |
| 46216 | Cushion, Parking Pedal |
| 46217 | Knob, Parking Brake Release Rod |
| 46225 | Rod, Parking Brake Pawl Release |
| 46225A | Spring, Compression(FOR PARKING BRAKE PAWL ROD) |
| 46241 | Boot, Parking Brake Lever |
| 46241A | Bolt(FOR PARKING BRAKE SETTING) |
| 46249 | Shield, Parking Brake Hole |
| 46252 | Pad, Parking Pedal |
| 46261 | Lever, Parking Brake Release Intermediate |
| 46265 | Guide, Parking Brake Release Rod |
| 46304 | Equalizer Sub-assy, Parking Brake |
| 46311A | Spring(FOR PARKING BRAKE PAWL) |
| 46361 | Rod, Parking Brake Pull |
| 46361C | Grommet(FOR PARKING BRAKE PULL ROD) |
| 46410 | Cable Assy, Parking Brake, NO.1 |
| 46410D | Pin(FOR PARKING BRAKE FRONT CABLE) |
| 46420 | Cable Assy, Parking Brake, NO.2 |
| 46430 | Cable Assy, Parking Brake, NO.3 |
| 46458 | Retainer, Cable |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
