Toyota Corona

1978-09 → 1981-12 · chassis RT13# · catalogue 261440 · United States

Discontinued model Data version 1985-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

15 part groups · 2 illustrations

Illustrations

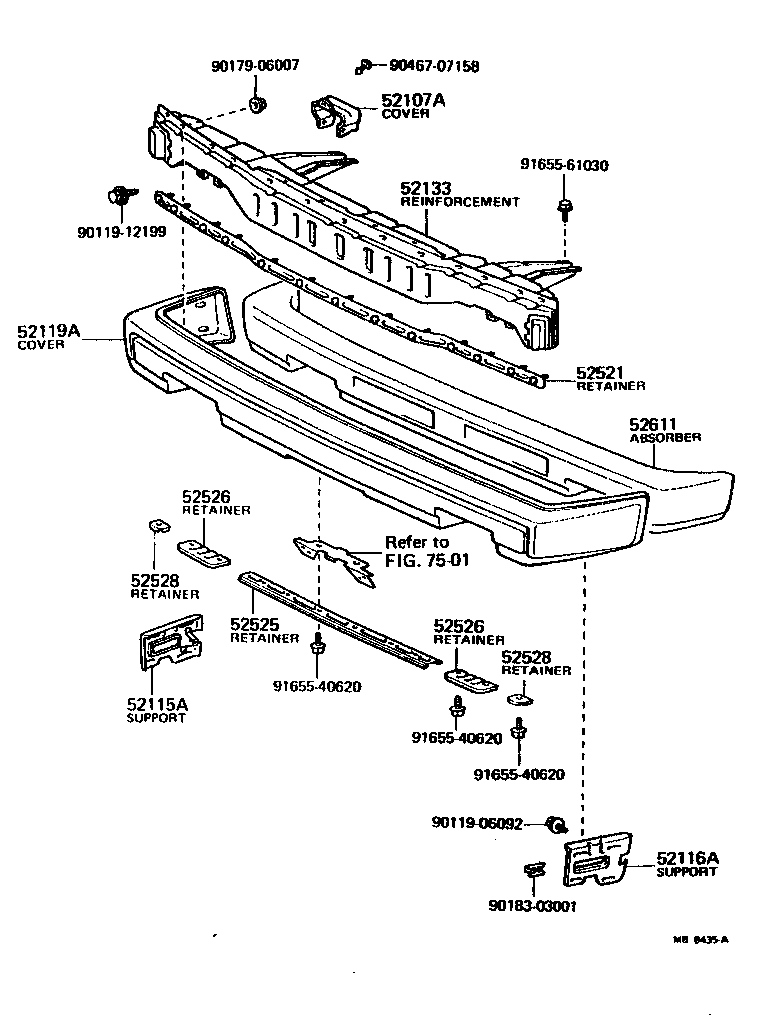

Figure MB8228F MB8228F 1978-09 → 1980-08 Figure MBB435A MBB435A 1980-08 → —

Part groups

PNCDescription
52107A Cover, Front Bumper Arm Hole
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52130 Bracket Assy, Front Bumper Side Mounting, RH
52133 Reinforcement, Front Bumper
52140 Bracket Assy, Front Bumper Side Mounting, LH
52521 Retainer, Front Bumper, Upper Center
52522 Retainer, Front Bumper Upper Side
52525 Retainer, Front Bumper, Lower Center
52526 Retainer, Front Bumper, Lower Side
52528 Retainer, Front Bumper, Lower Corner
52611 Absorber, Front Bumper Energy
52701 Moulding Sub-assy, Front Bumper
52717 Retainer, Front Bumper Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
