Toyota Corona
1978-09 → 1981-12 · chassis RT13# · catalogue 261440 · United States
Discontinued model
Data version 1985-06

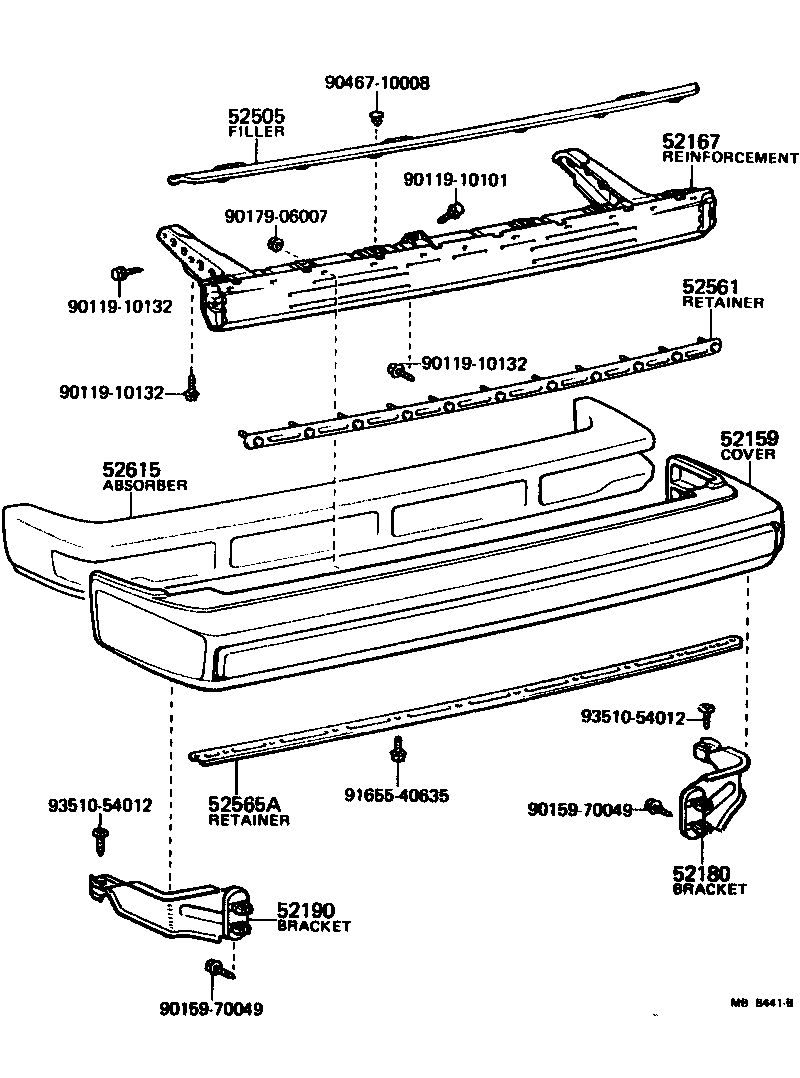

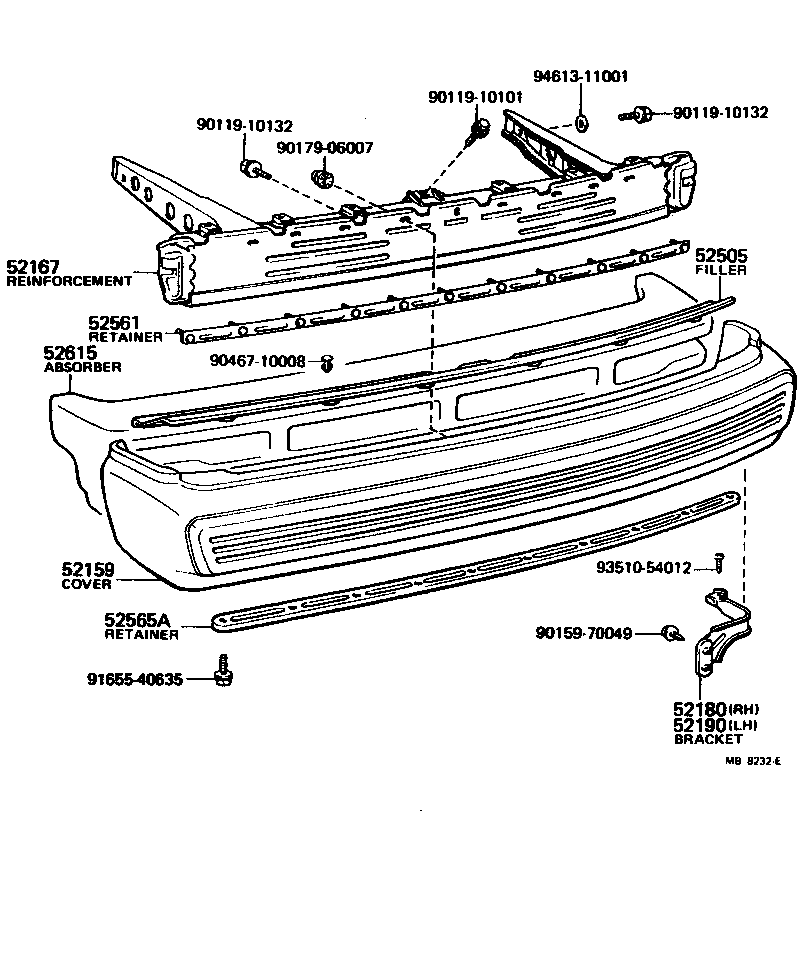

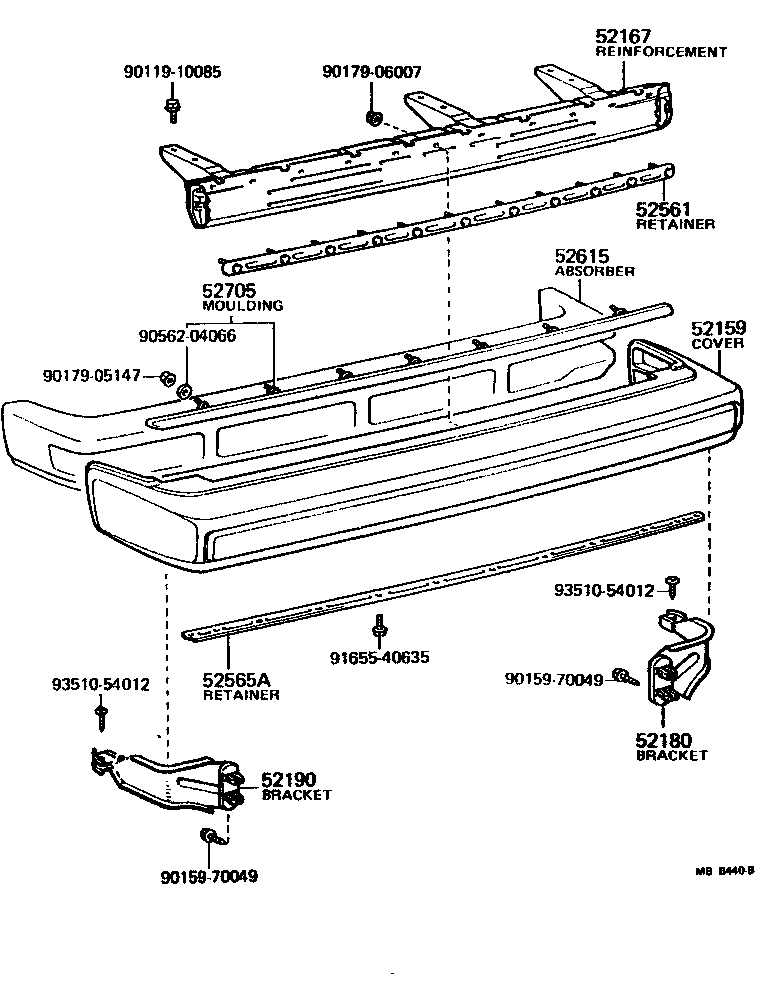

Rear Bumper & Bumper Stay
9 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52159 | Cover, Rear Bumper |
| 52167 | Reinforcement, Rear Bumper |
| 52180 | Bracket Assy, Rear Bumper Side Mounting, RH |
| 52190 | Bracket Assy, Rear Bumper Side Mounting, LH |
| 52505 | Filler Sub-assy, Rear Bumper |
| 52561 | Retainer, Rear Bumper, Upper Center |
| 52565A | Retainer, Rear Bumper, Lower |
| 52615 | Absorber, Rear Bumper Energy |
| 52705 | Moulding Sub-assy, Rear Bumper |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
